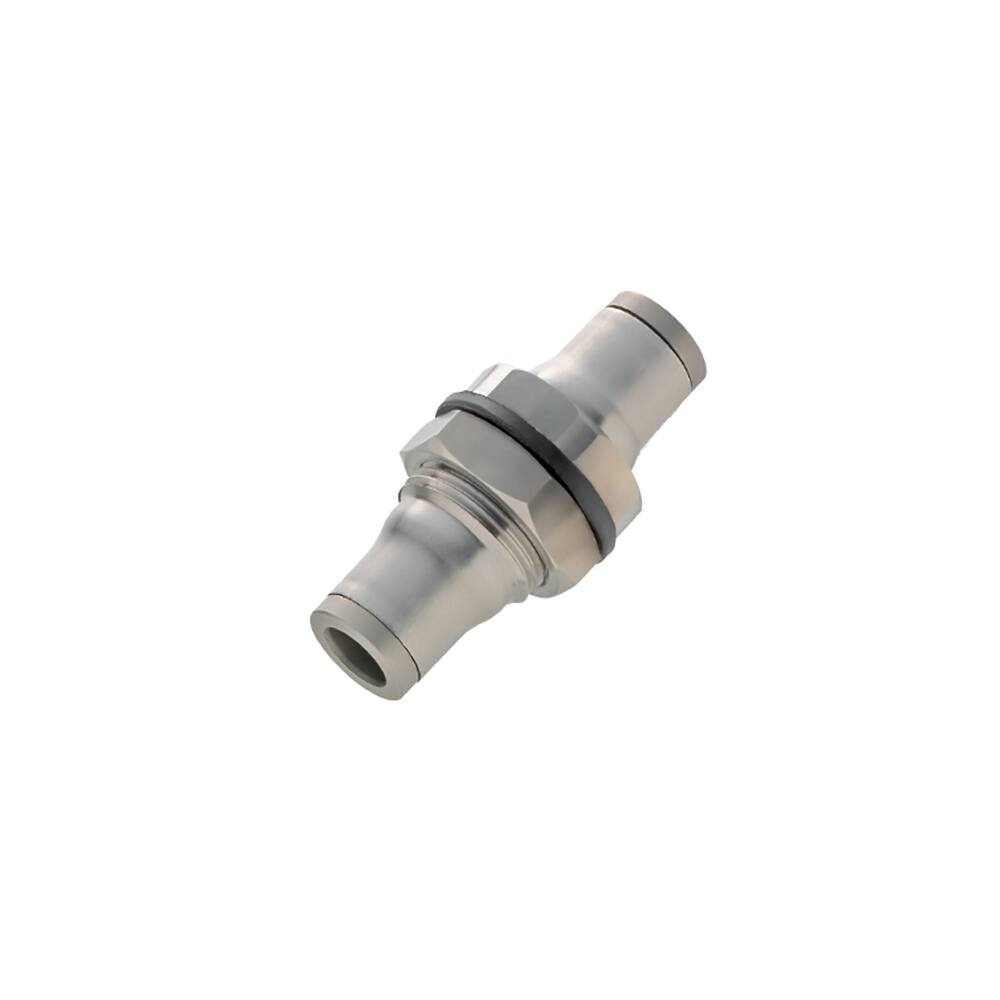

Parker Legris LF3800 4mm Equal Bulkhead Connector
Overview
The Parker Legris LF3800 4mm Equal Bulkhead Connector is a stainless steel push-to-connect fitting designed for straightforward tube-to-tube connections in pneumatic and low-pressure fluid applications.
This bulkhead connector excels in environments where corrosion resistance and reliability are essential. The 316L stainless steel body with FKM seals withstands operating pressures up to 435 psi and temperatures ranging from −13 °C to 150 °C, making it suitable for demanding washdown and sanitary applications. Its compact 13 mm hex size enables quick installation and servicing in confined spaces, whilst the simple push-to-connect mechanism eliminates the need for tools or special assembly skills. The fitting accommodates 4 mm outer diameter tubing on both ports and maintains a vacuum rating of 1 bar for systems requiring degassing or negative pressure control.
Legris push-to-connect technology prioritises cost-effectiveness and reduced downtime in applications spanning food and beverage processing, paper manufacture, and general industrial automation where instrument or process air systems demand dependable performance.
Specifications
| Connection Type | Tube to Tube |
|---|---|
| Maximum Operating Pressure | 30 bar |
| Temperature Range | -25°C to +150°C |
| Body Material | Stainless Steel AISI 316L |
| Seal Material | FKM |
| Hex Size | 13 mm |
| Weight | 0.017 kg |
| For Fluid Type | Water, Other Fluids: Please Consult Us, Air |
| Product Series | LF 3800 |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 2 |
| Configuration | Tube to Tube |
| Connection 1 Size | 4 mm Tube O.D. |
| Connection 2 Size | 4 mm Tube O.D. |
| Connection 2 Type | Tube (O.D.) |
| Shape | Straight |
| Specifications Met | REACH DI: 1907/2006, ISO 14743 (Pneumatic Transmissions), EC 1935/2004, RoHS DI: 2011/65/EC, RoHS DI: 2002/95/EC, USDA NSF H1 (Grease), FDA 21 CFR, UL 94 V-0 (Seal), ATEX DI: 94/9/EC, PED DI: 97/23/EC |
| Application | Chemical Transfer, Medical Equipment, Pharmaceutical, Food Processing, Petrochemicals, Paper Industry |
| Connection 1 Type | Tube |
| Vacuum Pressure Rating | 755 mm-Hg, 1 bar |
