R209,16Login for your trade price excl. VAT · per unit
Trade customer? Sign in for your tier price.
On backorder · approx. 35 days
Maximum Operating Pressure
30 bar
Connection 2 Type
Tube (O.D.)
Connection 1 Type
Tube

Overview

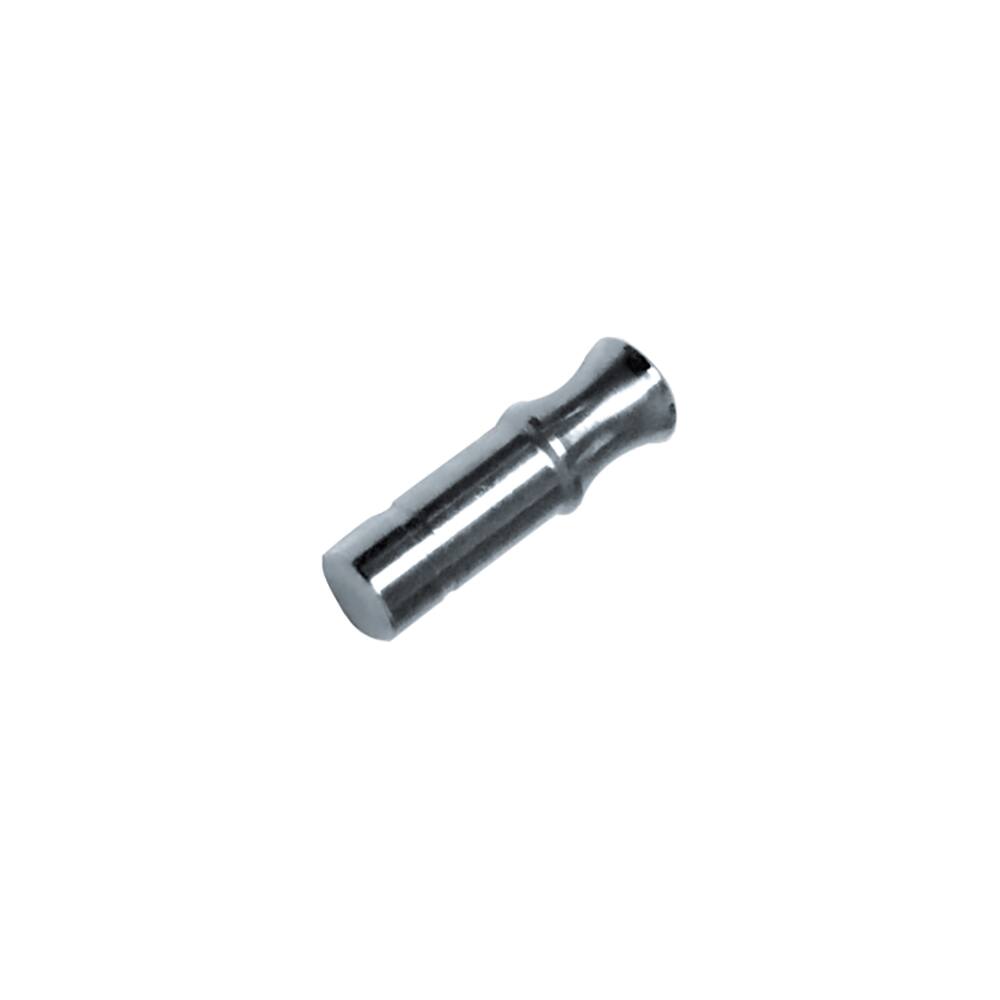

The Parker Legris LF3800 6mm blanking plug is a stainless steel push-to-connect fitting designed for sealing open ports in pharmaceutical fluid systems. This straight plug features a 6mm outer diameter connection and accommodates 8mm tube outlets, making it ideal for isolating unused connection points in low-pressure applications. Constructed from AISI 316L stainless steel with an FKM seal, the fitting withstands operating pressures up to 435 psi and temperatures ranging from -25°C to 150°C, whilst maintaining reliable performance in vacuum conditions down to 14.5 psi. The push-to-connect design ensures quick installation without tools, and the hex size of 10–27mm allows for straightforward handling. Supplied in boxes of two units and ATEX-compliant for hazardous area use, this blanking plug suits pharmaceutical manufacturing, process instrumentation, and cleanroom environments where hygiene and system integrity are paramount.

Source: www.parker.com ↗

Specifications

Connection Type n/a
Maximum Operating Pressure 30 bar
Temperature Range -25°C to +150°C
Body Material Stainless Steel AISI 316L
Seal Material FKM
Hex Size 10 to 27 mm
Weight 0.007 kg
For Fluid Type Water, Air, Other Fluids: Please Consult Us
Product Series LF 3800
Product Type Push-to-Connect Fittings
Quantity per Box 2
Configuration n/a
Connection 1 Size 6 mm Tube O.D.
Connection 2 Size 6 mm Tube O.D., 8 mm Tube O.D.
Connection 2 Type Tube (O.D.)
Shape Straight
Application Chemical Transfer, Paper Industry, Medical Equipment, Petrochemicals, Food Processing, Pharmaceutical
Specifications Met FDA 21 CFR, RoHS DI: 2002/95/EC, PED DI: 97/23/EC, ISO 14743 (Pneumatic Transmissions), UL 94 V-0 (Seal), RoHS DI: 2011/65/EC, EC 1935/2004, REACH DI: 1907/2006, USDA NSF H1 (Grease), ATEX DI: 94/9/EC
Vacuum Pressure Rating 1 bar, 755 mm-Hg
Connection 1 Type Tube
Catalogue reference Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.37
