Parker Hannifin Genuine

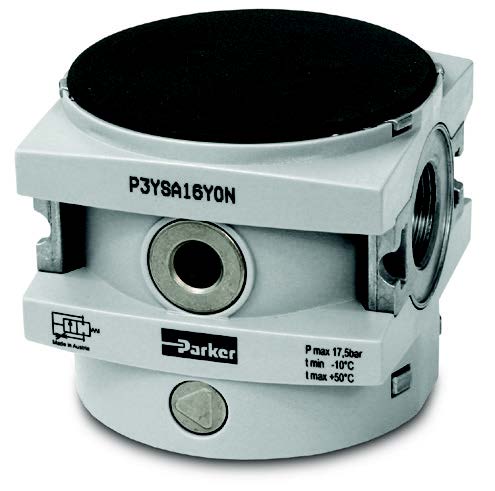

Parker P3Y Series 1"Bspp Soft Start Valve
Price on RequestLogin for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
Out of stock · Replenishment on order
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
17.5 bar max
Temperature Range
-40°C to +60°C
Working media
compressed air; lubricators compressed air with oil mist
Overview
Parker P3Y Series 1"Bspp Soft Start Valve
Specifications
| Port / thread | 1"Bspp |
|---|---|
| Series | P3Y |
| Maximum Operating Pressure | 17.5 bar max |
| Temperature Range | -40°C to +60°C |
| Working media | compressed air; lubricators compressed air with oil mist |
| Application | high-flow air preparation for main-line and large-machine duties where the Global FRL range runs out of flow |
| Pressure (detail) | 17.5 bar max. Source: Parker Global Air Preparation System, PDE2676TCUK, pp.77 to 94 |
| Size (detail) | 3/4" and 1" BSP; 1-1/2" via the P3YKA port block kit, which is a separate line item |
| Temperature (detail) | -40°C to +60°C. The drain sets the minimum on filters and filter/regulators — combined manual/semi-auto -40°C, auto drain -10°C. Any combination containing a lubricator is -10°C |
| Catalogue reference | PDE2676TCUK, p.1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 |
