Valves - 3/2 Fluid Control
The Parker / Lucifer general purpose 3 way valves are available in brass and stainless steel. Direct and Pilot operated types with seal options in NBR, FKM, Ruby, PUR and TPE/PVDF. In-Line and Sub-base mounting. Standard stock is Normally Closed N/C. Normally Open N/O, Universal and Sub-base available on request.
Size: orifice 0.8 to 30 mm; ports 1/8" to 1/4" and sub-base. - Temperature: fluid -40°C to +180°C, set by the seat seal — NBR, FKM (including FDA grades), PUR or ruby. - Application: 3/2 solenoid valves — diverting and venting duty, direct or servo operated. - Media: air, neutral gases, water, oils and aggressive fluids depending on body and seal; brass, aluminium, 316L and other stainless bodies. - Pressure: up to 40 bar differential, AC and DC alike. Source: Parker Solenoid Valves for Fluid Control, General Catalogue 0112UK
Browse Valves - 3/2 Fluid Control by type
4 sub-categories · 69 SKUs total
General Purpose 3/2 Brass Valve - Direct Operated
General Purpose 3/2 Stainless Steel Valve - Direct Operated
General Purpose 3/2 Anodized Aluminium Valve - Pilot Operated
General Purpose 3/2 Aluminium Valve - Direct Operated
All products in Valves - 3/2 Fluid Control
Parker Lucifer General Purpose 3/2 Air Operated / Spring Return Anodized Aluminium Namur Valve Externally Operated 1/4"Bsp NBR Orifice 7mm
10 bar AC/DC Spring return
Parker Lucifer General Purpose 3/2 Anodized Aluminium Valve Pilot Operated 1/2"Bsp N/C NBR Orifice 14mm - No Coil - Coil Group 2.1
15 bar AC/DC Anodized aluminium

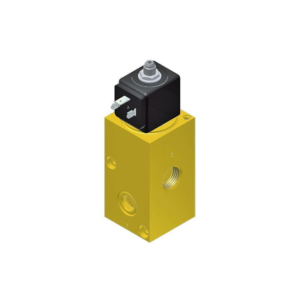

Parker Lucifer General Purpose 3/2 Anodized Aluminium Valve Pilot Operated 1/2"Bsp N/O NBR Orifice 14mm - No Coil - Coil Group 2.1
15 bar AC/DC Anodized aluminium

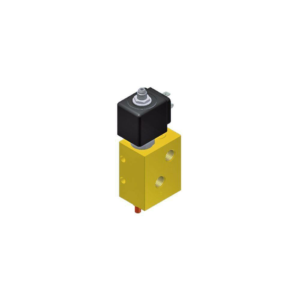

Parker Lucifer General Purpose 3/2 Anodized Aluminium Valve Pilot Operated 1/4"Bsp N/C NBR Orifice 6.5mm - No Coil - Coil Group 7.0/8.0
10 bar DC Anodized aluminium

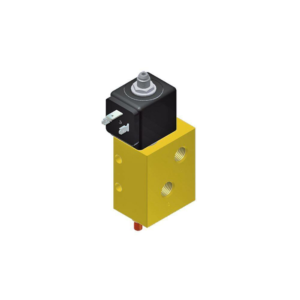

Parker Lucifer General Purpose 3/2 Anodized Aluminium Valve Pilot Operated 1/4"Bsp N/C NBR Orifice 6.5mm c/w Manual Override - No Coil - Coil Group 2.1
10 bar AC/DC Anodized aluminium
Parker Lucifer General Purpose 3/2 Anodized Aluminium Valve Pilot Operated 1/4"Bsp N/C NBR Orifice 8mm - No Coil - Coil Group 2.1
15 bar AC/DC Anodized aluminium

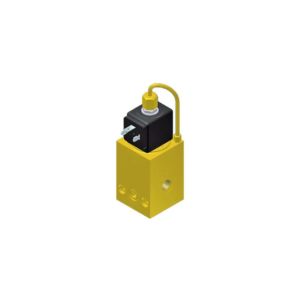

Parker Lucifer General Purpose 3/2 Anodized Aluminium Valve Pilot Operated 1/4"Bsp N/O NBR Orifice 8mm - No Coil - Coil Group 2.1
40 bar AC/DC Anodized aluminium
Parker Lucifer General Purpose 3/2 Anodized Aluminium Valve Pilot Operated 1/4"Bsp N/O NBR Orifice 8mm - No Coil - Coil Group 2.1
15 bar AC/DC Anodized aluminium

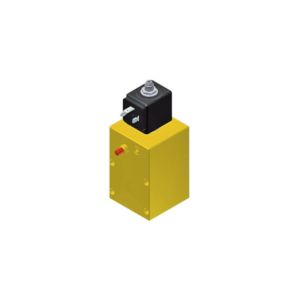

Parker Lucifer General Purpose 3/2 Anodized Aluminium Valve Pilot Operated Sub-Base N/O NBR Orifice 15mm c/w Manual Override - No Coil - Coil Group 2.1/3.0
10 bar AC/DC Anodized aluminium
Parker Lucifer General Purpose 3/2 Brass Valve Direct Operated 1/4"Bsp N/C FKM Orifice 1.5mm - No Coil - Coil Group 2.0
3 Way Valves 3/2 Valves For Dry Or Lubricated Air, Neutral Gases And Liquids Direct Operated Brass 0–16 bar (AC) / 0–16 bar (DC)
