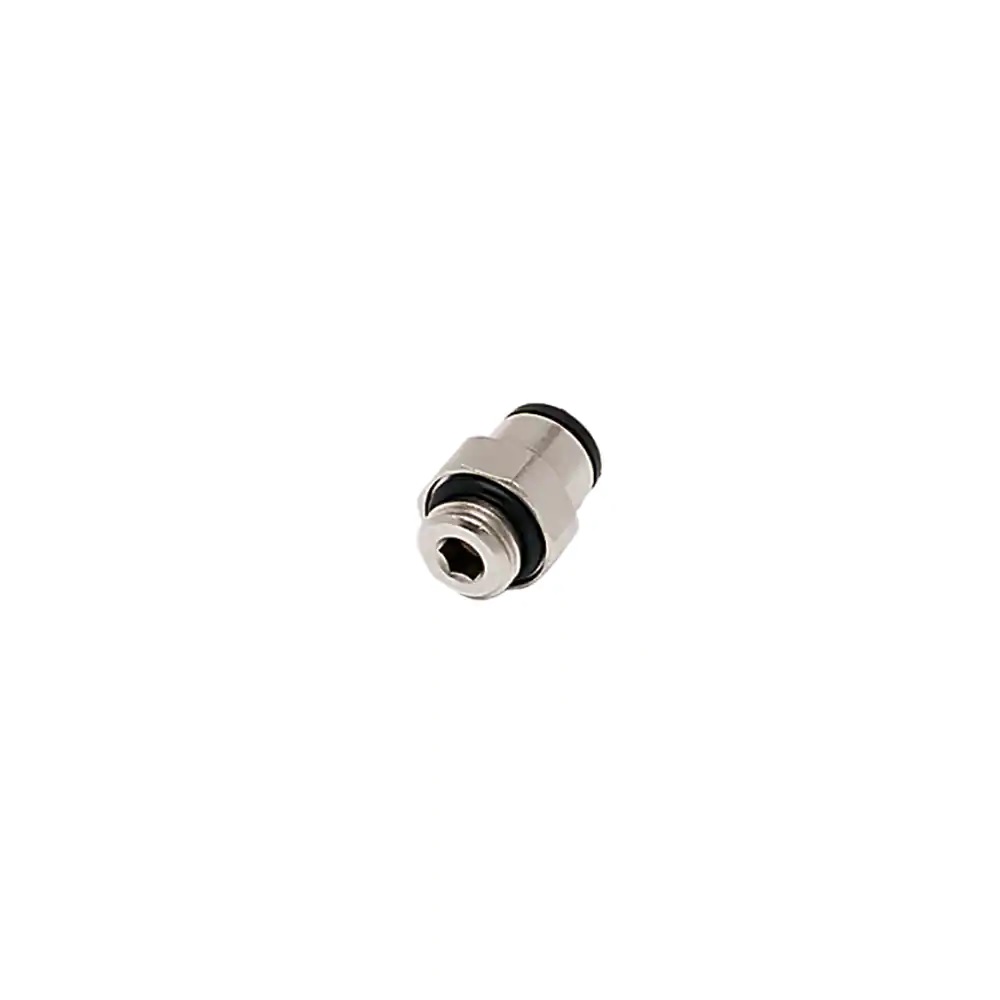

Parker Legris Cleanfit LF6800 6mm - 1/8"Bspp Male Straight Stud
Overview
The Parker Legris Cleanfit LF6800 is a 6 mm push-to-connect male stud fitting with G 1/8 BSPP thread, designed specifically for breathing air and respiratory applications in low-pressure pneumatic systems.
This straight stud fitting delivers reliable performance across a wide temperature range from −10 °C to 95 °C, making it suitable for both indoor and temperature-variable environments. The brass body with FDA chemical nickel plating provides corrosion resistance and durability, whilst the stainless steel gripping ring ensures secure tube engagement without requiring tools. The EPDM seal material is compatible with breathing air and maintains integrity throughout the fitting's operational life. Connection is straightforward: simply push the 6 mm metric tube into the fitting for an immediate seal, then twist to lock in place—ideal for applications where quick assembly and disassembly are required.
The LF6800 series meets RoHS compliance and is supplied in convenient boxes of ten units. This fitting serves pneumatic system requirements in medical equipment, instrumentation, food processing, and industrial automation environments where clean, breathing-quality air distribution is essential.
Specifications
| Temperature Range | -10°C to +95°C |
|---|---|
| Body Material | Brass, FDA Chemical Nickel-plated |
| Seal Material | EPDM |
| Weight | 0.005 kg |
| For Fluid Type | Medical Gases (Neutral & Pure) Other Fluids: Please Consult Us, Air (Breathing Air). Other Fluids: Please consult us. |
| Product Type | Stud Fittings |
| Quantity per Box | 10 |
| Connection 1 Thread Size | G 1/8 |
| Gripping Ring | Stainless Steel |
| Connection 2 Tube Outside Diameter | 6 mm (O.D.) |
| Connection 1 Type | BSPP |
| Specifications Met | RoHS DI: 2011/65/EC, BAM (grease certification residue), ISO 15001 (< 30 Bar), EN 12021 (< 0,1 Mg/m3), CGA G4.1, REACH DI: 1907/2006, VDI 2083-8 (in progress), RoHS DI: 2002/95/EC |
| Application | Bio-Fluid Management, Laboratory, Clean Rooms, O2 Circuits, Pharmaceutical Process, Respiratory |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.41 |
