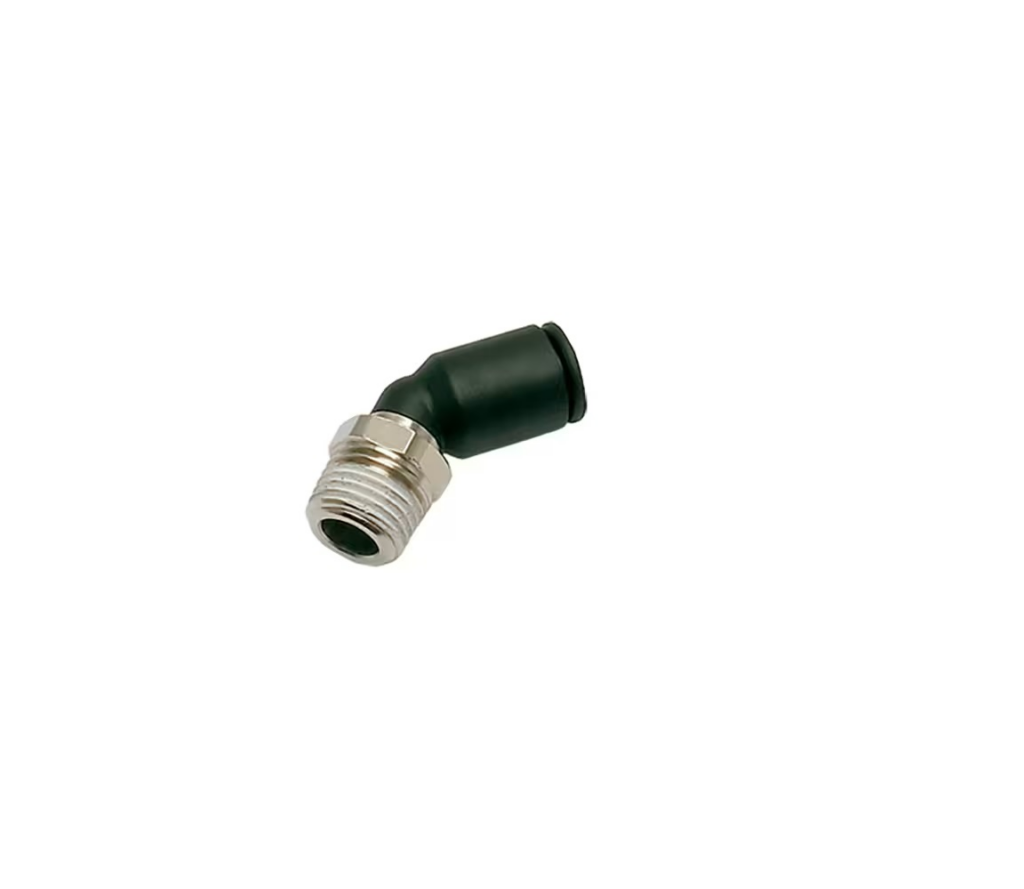

Parker Legris LF3000 10mm - 1/4"Bspt Male 45deg Elbow
Parker Legris LF3000 elbow 45°, 10 mm tube to R 1/4, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 10mm to 1/4" BSPT male 45-degree elbow is a push-to-connect fitting designed for pneumatic and low-pressure fluid applications in off-road machinery and automotive systems.
This elbow connector simplifies installation in space-constrained environments where angled connections are essential. The 45-degree geometry allows for flexible routing of tubing whilst maintaining reliable performance, making it particularly valuable in applications where straight fittings would create bulky assemblies or interfere with adjacent components.
The fitting combines a 10mm outer diameter tube connection with a 1/4" BSPT male port, accommodating standard industrial tubing and threaded manifold connections. Its technical polymer body, reinforced with stainless steel gripping ring and NBR seals, delivers robust performance across the -20°C to +80°C operating range and supports vacuum conditions down to 755mm-Hg. The hexagon metric head (size 15) enables secure installation and removal with standard tooling.
Packed in convenient boxes of ten, this connector serves manufacturers in agricultural equipment, construction machinery, and industrial automation where dependable low-pressure connections are non-negotiable.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Elbow 45° |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 10 mm Tube O.D. |
| Connection 2 Type | BSPT, Male |
| Connection 2 Size | R 1/4 inch Thread |
| Hex Size | 15 |
| Hex Type | Hexagon Metric |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Application | Pneumatics, Robotics, Textile, Vacuum, Packaging, Automotive |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.014 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.15 |
