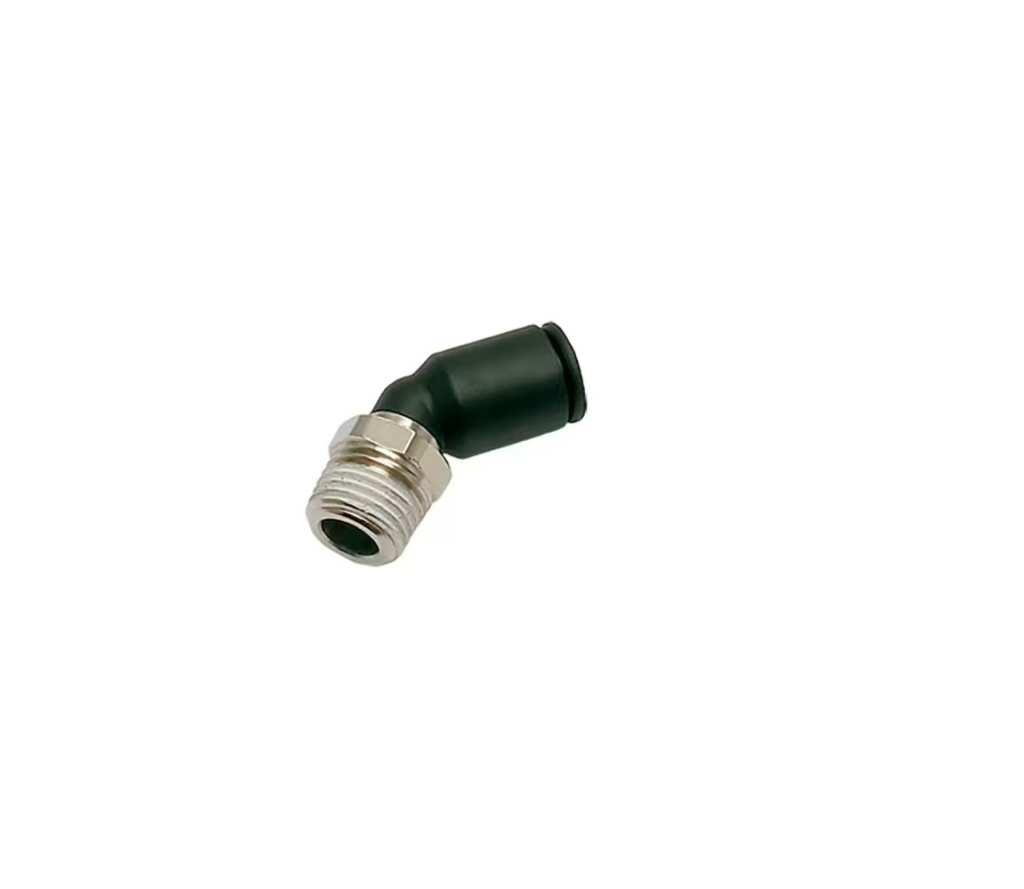

Parker Legris LF3000 6mm - 1/4"Bspt Male 45deg Elbow
Overview
The Parker Legris LF3000 6mm to 1/4" BSPT male 45-degree elbow is a push-to-connect stud fitting designed for compressed air and low-pressure fluid applications in automotive and industrial processing environments.
This elbow fitting simplifies installation in space-constrained pneumatic systems by enabling quick, tool-free connections without the need for additional adapters. The 45-degree angle configuration facilitates efficient routing around machinery and control panels, whilst the push-in tube connection on one end and male BSPT port on the other provide versatile integration with standard pneumatic components. Constructed from technical polymer with stainless steel gripping rings and NBR seals, the fitting delivers reliable performance across a working temperature range of –20 °C to 80 °C and maintains a vacuum rating of 755 mm-Hg, making it suitable for both positive and negative pressure circuits.
The compact 14 mm hexagon body allows straightforward installation and servicing in confined spaces. This fitting is widely specified across industrial automation, food and beverage processing, and instrument air systems where durability, repeatability, and ease of maintenance are essential.
Specifications
| Temperature Range | -20°C to +80°C |
|---|---|
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Hex Size | 14 |
| Weight | 0.015 kg |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Product Series | LF 3000® |
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 6 mm Tube O.D. |
| Connection 2 Size | R 1/4 inch Thread |
| Connection 2 Type | Male, BSPT |
| Shape | Elbow 45° |
| Application | Pneumatics, Robotics, Textile, Vacuum, Packaging, Automotive |
| Vacuum Pressure Rating | 755 mm-Hg |
| Connection 1 Type | Tube |
| Hex Type | Hexagon Metric |
| Gripping Ring Material | Stainless Steel |
