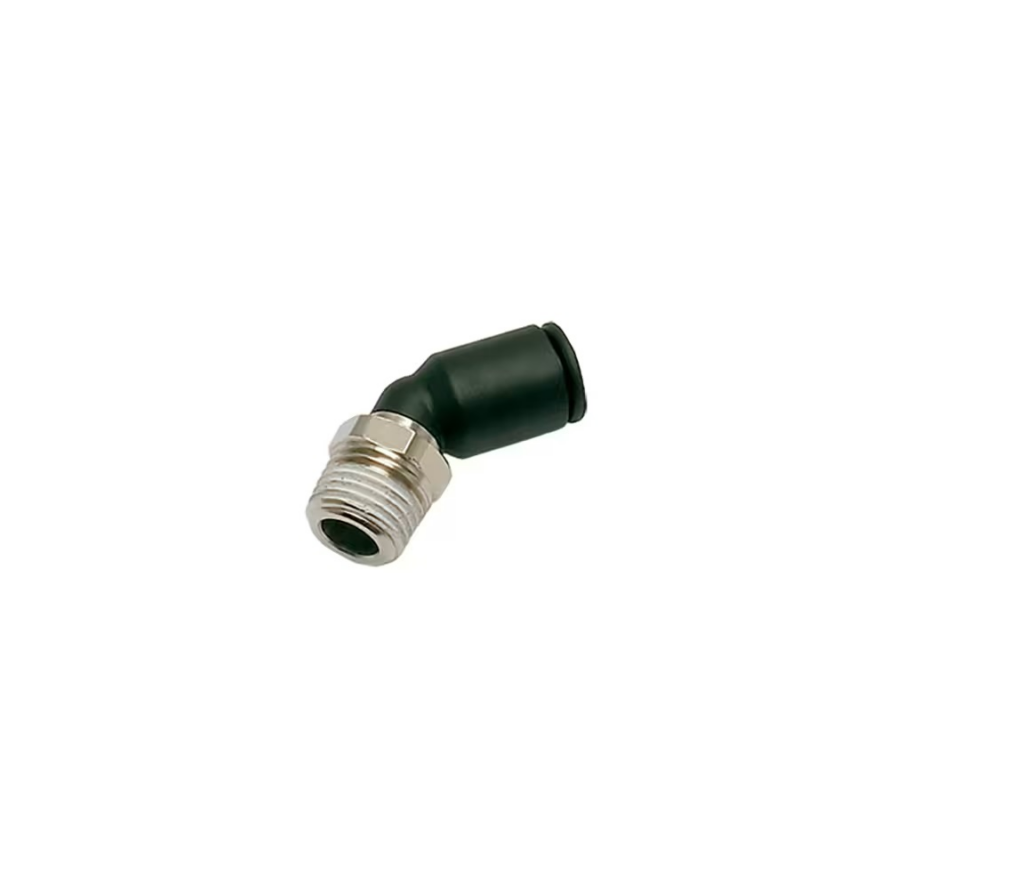

Parker Legris LF3000 8mm - 1/4"Bspt Male 45deg Elbow
Parker Legris LF3000 elbow 45°, 8 mm tube to R 1/4, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 4mm to 1/8" BSPT male 45-degree elbow is a push-to-connect pneumatic fitting designed for compressed air applications across transportation and textile industries.
This stud fitting excels in systems requiring reliable, space-efficient connections where angled routing is necessary. The 45-degree configuration minimises pressure drop whilst maintaining leak-free performance, making it ideal for instrument air, process control lines, and dynamic pneumatic assemblies. Its technical polymer body combined with a stainless steel gripping ring delivers excellent durability across operating temperatures from –20 °C to +80 °C, whilst the NBR seal ensures consistent performance in demanding environments.
The fitting accommodates 4mm tubing (outside diameter) connected to a 1/4" BSPT male port, with a 14mm hexagon metric hex for tool engagement during installation. Rated for vacuum conditions down to 755 mm-Hg, this connector supports both positive pressure and evacuation applications. Supplied in packs of 10 units, it serves industrial automation, food and beverage processing, and pneumatic instrument networks.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Elbow 45° |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 8 mm Tube O.D. |
| Connection 2 Type | Male, BSPT |
| Connection 2 Size | R 1/4 inch Thread |
| Hex Size | 14 |
| Hex Type | Hexagon Metric |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Application | Automotive, Robotics, Packaging, Pneumatics, Vacuum, Textile |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.014 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.15 |
