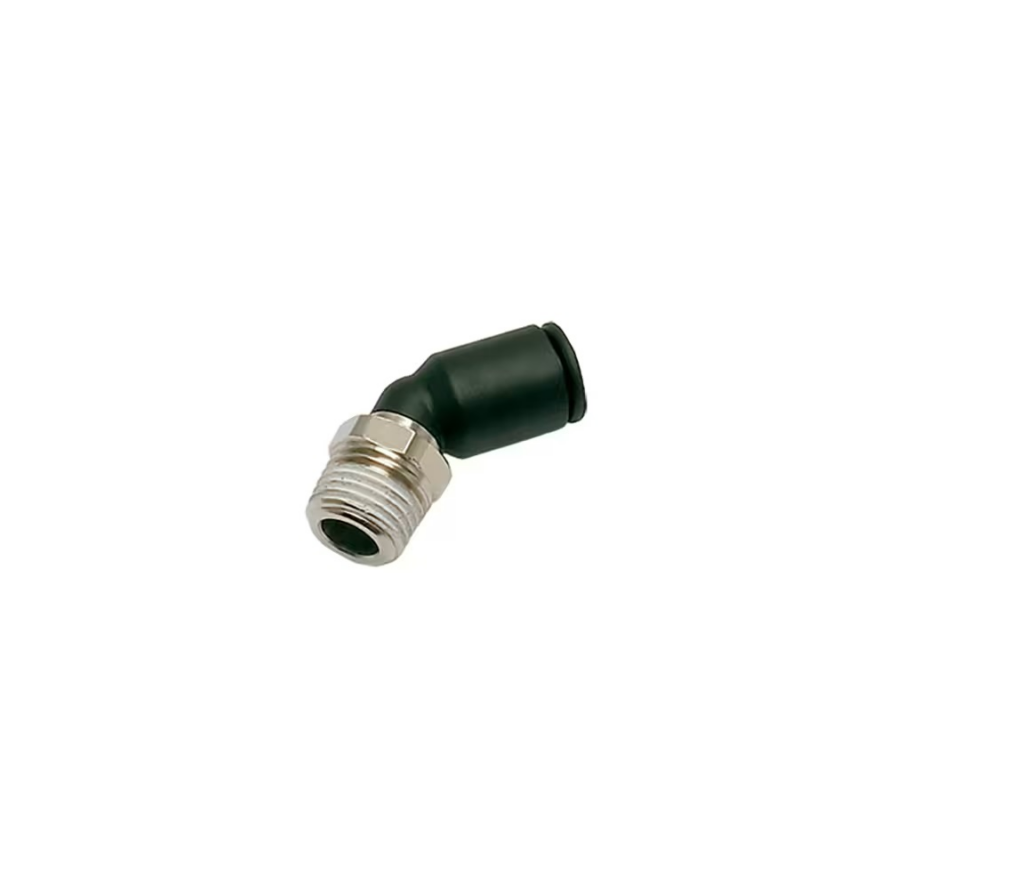

Parker Legris LF3000 12mm - 1/2"Bspt Male 45deg Elbow
Overview
The Parker Legris LF3000 12mm to 1/2" BSPT male 45-degree elbow is a push-to-connect stud fitting designed for vacuum and low-pressure pneumatic applications.
This technical polymer elbow connector simplifies installation in tight spaces where a 45-degree angle change of direction is required. The push-in design eliminates the need for tools on the tube side, whilst the stainless steel gripping ring and NBR seals ensure reliable, leak-free performance across extended service life. Operating safely between −20 °C and 80 °C with a vacuum rating of 755 mm-Hg, this fitting handles compressed air, inert gases, and compatible fluids commonly found in pneumatic systems.
The robust hexagon metric head (21 mm) enables secure installation onto port connections, and the compact form factor makes it ideal for space-constrained panel layouts. Supplied in boxes of ten, these fittings serve food processing, industrial automation, and process control installations where rapid, tool-free assembly and reliable performance are essential.
Specifications
| Temperature Range | -20°C to +80°C |
|---|---|
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Hex Size | 21 |
| Weight | 0.033 kg |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Product Series | LF 3000® |
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 12 mm Tube O.D. |
| Connection 2 Size | R 1/2 inch Thread |
| Connection 2 Type | Male, BSPT |
| Shape | Elbow 45° |
| Gripping Ring Material | Stainless Steel |
| Vacuum Pressure Rating | 755 mm-Hg |
| Application | Textile, Automotive, Packaging, Pneumatics, Robotics, Vacuum |
| Connection 1 Type | Tube |
| Hex Type | Hexagon Metric |
