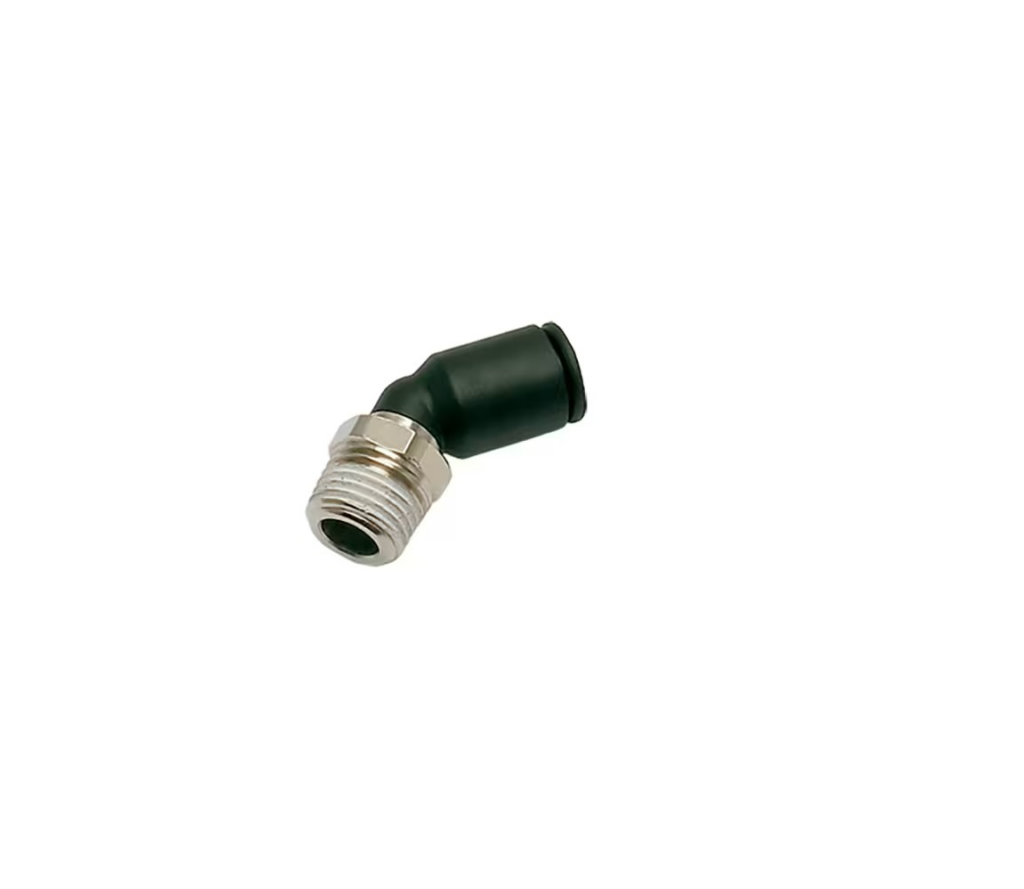

Parker Legris LF3000 12mm - 1/4"Bspt Male 45deg Elbow
Parker Legris LF3000 elbow 45°, 12 mm tube to R 1/4, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 12mm to 1/4" BSPT male 45-degree elbow is a push-to-connect stud fitting designed for pneumatic and low-pressure fluid applications in robotics and automated systems.
This technical polymer elbow delivers reliable performance across a broad temperature range from −20 °C to +80 °C, making it suitable for both heated and refrigerated environments. The stainless steel gripping ring ensures secure tube retention, whilst the NBR seal material provides excellent compatibility with compressed air and other approved fluids. With a 12 mm outer diameter tube connection and R 1/4 male BSPT port outlet, the fitting integrates seamlessly into existing pneumatic networks.
The 45-degree angle configuration optimises space efficiency in tight layouts, whilst the metric hexagon body (15 mm hex size) facilitates installation and maintenance. Rated to 755 mm-Hg vacuum, this fitting handles both positive and negative pressure conditions reliably. Supplied in boxes of 10, the LF3000 serves industrial automation, electronics manufacturing, and process control industries where dependable, tool-free connections are essential.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Elbow 45° |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 12 mm Tube O.D. |
| Connection 2 Type | Male, BSPT |
| Connection 2 Size | R 1/4 inch Thread |
| Hex Size | 15 |
| Hex Type | Hexagon Metric |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Application | Vacuum, Pneumatics, Textile, Packaging, Automotive, Robotics |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.016 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.15 |
