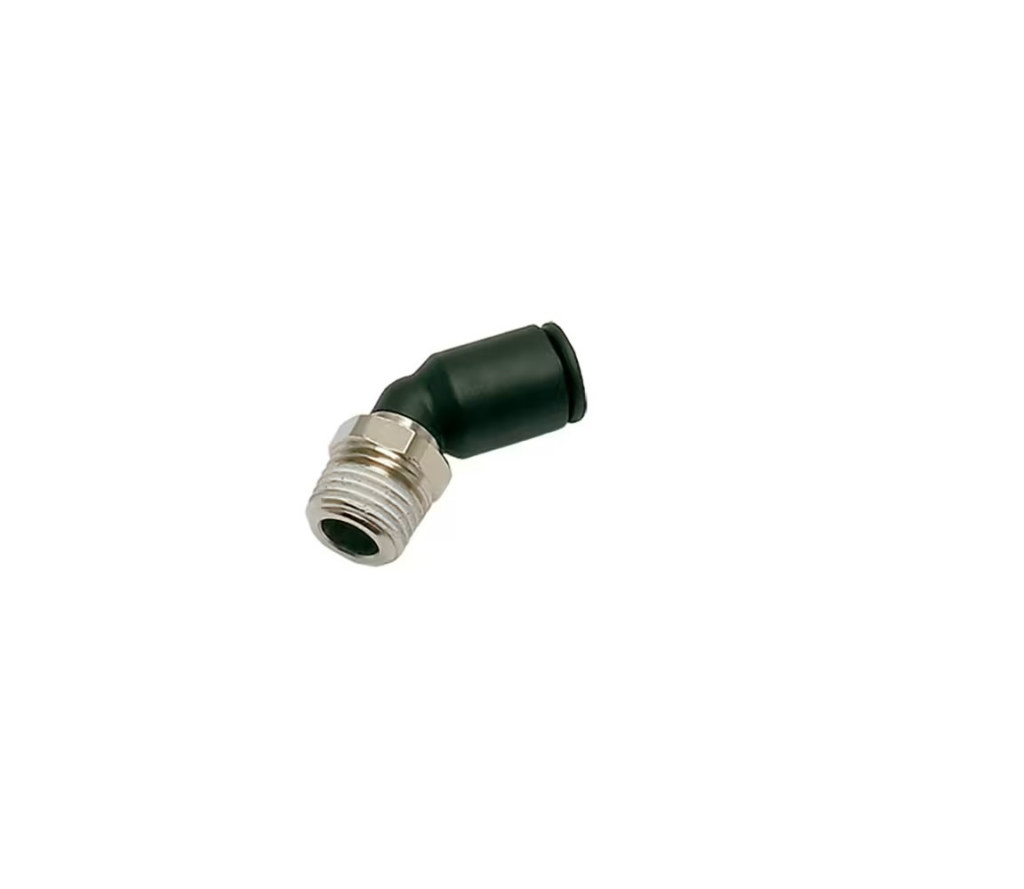

Parker Legris LF3000 6mm - 1/8"Bspt Male 45deg Elbow
Parker Legris LF3000 elbow 45°, 6 mm tube to R 1/8, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 6mm to 1/8" BSPT Male 45° Elbow is a push-to-connect stud fitting designed for low-pressure pneumatic and fluid applications in industrial processing environments.
This compact elbow fitting enables straightforward connections in tight spaces and complex piping layouts where angled entry is advantageous. The 45° configuration reduces stress on tubing and port connections whilst maintaining reliable fluid and gas transfer. Constructed from technical polymer with a stainless steel gripping ring and NBR seal, the fitting delivers dependable service across a wide operating temperature range from −20 °C to 80 °C, with vacuum capability to 755 mm-Hg. The 6 mm tube connection pairs with a male BSPT thread (1/8") for secure attachment to pneumatic manifolds and instrument ports. With a 10 mm hex size, installation and removal are straightforward using standard wrenches.
Ideal for textile machinery, process air systems, and other industrial automation applications requiring consistent, leak-free low-pressure connections.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Elbow 45° |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 6 mm Tube O.D. |
| Connection 2 Type | BSPT, Male |
| Connection 2 Size | R 1/8 inch Thread |
| Hex Size | 10 |
| Hex Type | Hexagon Metric |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Application | Automotive, Packaging, Pneumatics, Robotics, Vacuum, Textile |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.006 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.15 |
