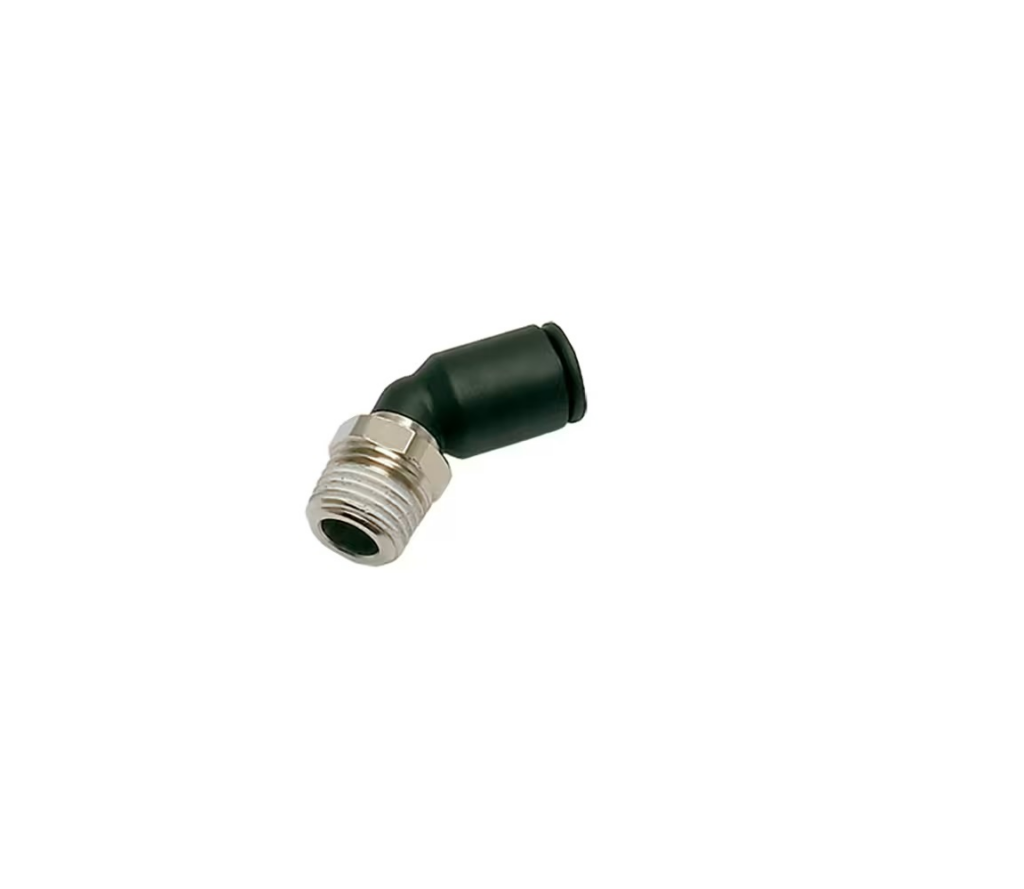

Parker Legris LF3000 12mm - 3/8"Bspt Male 45deg Elbow
Parker Legris LF3000 elbow 45°, 12 mm tube to R 3/8, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 12mm to 3/8" BSPT male 45-degree elbow is a push-to-connect pneumatic fitting designed for compressed air applications in off-road machinery and mobile equipment.
This stud fitting excels in systems where space is constrained or where angled connections simplify installation and reduce assembly complexity. The 45-degree geometry allows for flexible routing of pneumatic lines whilst maintaining reliable performance across a wide operating range from −20 °C to +80 °C. The 12 mm tube connection pairs with a 3/8" BSPT male port, accommodating both push-in tubing and screw-threaded manifold connections in a single component.
Constructed from technical polymer with a stainless steel gripping ring and NBR seal, this fitting withstands vacuum pressures to 755 mm-Hg and delivers the durability required in demanding industrial environments. The hexagon metric body (17 mm hex size) allows for secure installation and removal using standard tools. Supplied in boxes of 10 units, this fitting serves agricultural, construction, and automotive industries where robust, low-maintenance pneumatic distribution is essential.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Elbow 45° |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 12 mm Tube O.D. |
| Connection 2 Type | BSPT, Male |
| Connection 2 Size | R 3/8 inch Thread |
| Hex Size | 17 |
| Hex Type | Hexagon Metric |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Application | Robotics, Textile, Vacuum, Automotive, Packaging, Pneumatics |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.022 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.15 |
