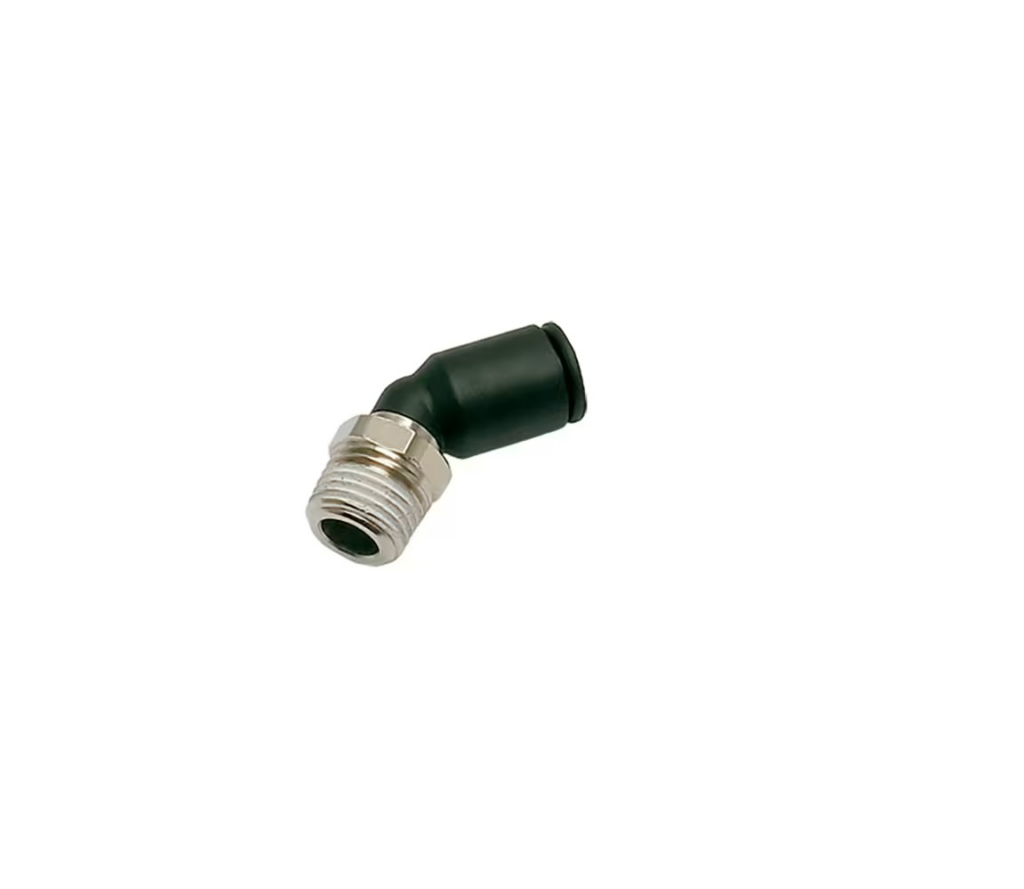

Parker Legris LF3000 8mm - 3/8"Bspt Male 45deg Elbow
Parker Legris LF3000 elbow 45°, 8 mm tube to R 3/8, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 8mm to 3/8" BSPT male 45-degree elbow is a push-to-connect stud fitting designed for pneumatic and low-pressure fluid applications in robotics and automated systems.
This technical polymer elbow provides reliable connections in compact spaces where directional changes are required. The 8mm tube connection accepts standard pneumatic tubing, while the 3/8" BSPT male port integrates directly into manifold blocks and valve bodies. Constructed from durable technical polymer with stainless steel gripping rings and NBR seals, the fitting operates reliably across a temperature range of −20 °C to 80 °C, making it suitable for both heated and refrigerated environments.
The push-to-connect design eliminates the need for tools during installation and removal, reducing downtime during system maintenance. With a 17mm hex size for wrench-flat gripping and rated for low-pressure vacuum applications up to 755 mm-Hg, this elbow suits industrial automation, transportation equipment, and process control systems where secure, maintenance-friendly connections are essential.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Elbow 45° |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 8 mm Tube O.D. |
| Connection 2 Type | Male, BSPT |
| Connection 2 Size | R 3/8 inch Thread |
| Hex Size | 17 |
| Hex Type | Hexagon Metric |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Application | Packaging, Vacuum, Pneumatics, Textile, Automotive, Robotics |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.018 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.15 |
