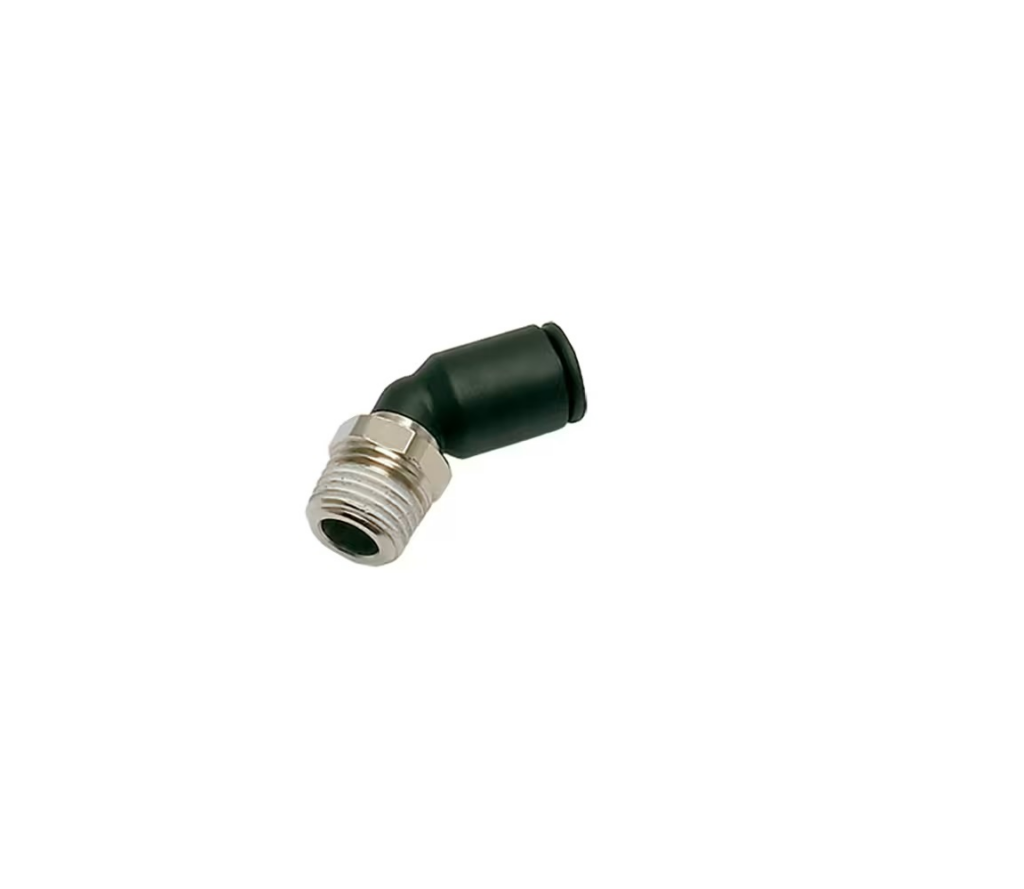

Parker Legris LF3000 8mm - 1/8"Bspt Male 45deg Elbow
Parker Legris LF3000 elbow 45°, 8 mm tube to R 1/8, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 8mm–1/8" BSPT male 45° elbow is a push-to-connect fitting designed for vacuum and low-pressure pneumatic applications across industrial systems.
This stud fitting excels in space-constrained installations where directional changes are required without sacrificing reliability. The 45° angled configuration minimises stress on connected tubing whilst maintaining system integrity, making it ideal for instrument air lines, control circuits, and process connections where compact routing is essential. Built from technical polymer with a stainless steel gripping ring and NBR seal, the fitting withstands temperatures from −20 °C to 80 °C and operates reliably at vacuum ratings up to 755 mm-Hg, whilst the hexagon metric body (10 mm across flats) permits secure mounting and maintenance.
Push-to-connect technology eliminates the need for tools during installation, reducing downtime and simplifying troubleshooting on pneumatic networks. Supplied in boxes of 10 units, this connector serves power generation, industrial automation, food and beverage processing, and general manufacturing environments requiring dependable low-pressure fluid and gas distribution.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Elbow 45° |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 8 mm Tube O.D. |
| Connection 2 Type | BSPT, Male |
| Connection 2 Size | R 1/8 inch Thread |
| Hex Size | 10 |
| Hex Type | Hexagon Metric |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Application | Pneumatics, Textile, Robotics, Packaging, Automotive, Vacuum |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.007 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.15 |
