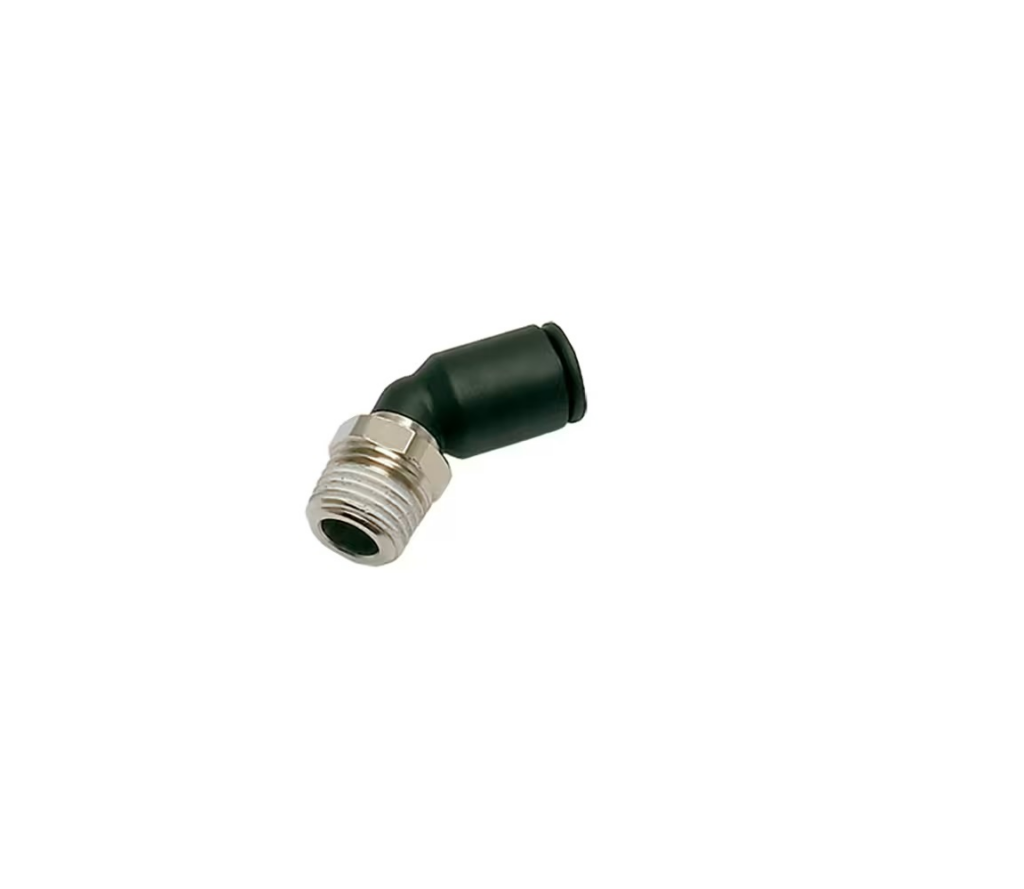

Parker Legris LF3000 4mm - 1/8"Bspt Male 45deg Elbow
Parker Legris LF3000 elbow 45°, 4 mm tube to R 1/8, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 45° elbow fitting connects 4 mm push-to-connect tubing to 1/8" BSPT male ports in compressed air and vacuum applications.
This compact connector simplifies installation in space-constrained pneumatic systems where angled port connections are required. The 45° elbow geometry allows flexible routing of compressed air lines while maintaining secure, leak-free joints typical of push-in technology. Constructed from durable technical polymer with a stainless steel gripping ring and NBR seals, the fitting withstands operating temperatures from −20 °C to 80 °C and achieves vacuum ratings of 755 mm-Hg, making it suitable for both positive pressure and partial vacuum environments. The hexagon metric body (10 mm hex size) permits easy installation and removal without specialist tools.
Weighing just 6 grams and supplied in convenient packs of 10, this fitting serves industrial automation, process control, food and beverage processing, and general instrumentation applications.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Elbow 45° |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 4 mm Tube O.D. |
| Connection 2 Type | Male, BSPT |
| Connection 2 Size | R 1/8 inch Thread |
| Hex Size | 10 |
| Hex Type | Hexagon Metric |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Application | Robotics, Automotive, Packaging, Pneumatics, Textile, Vacuum |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.006 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.15 |
