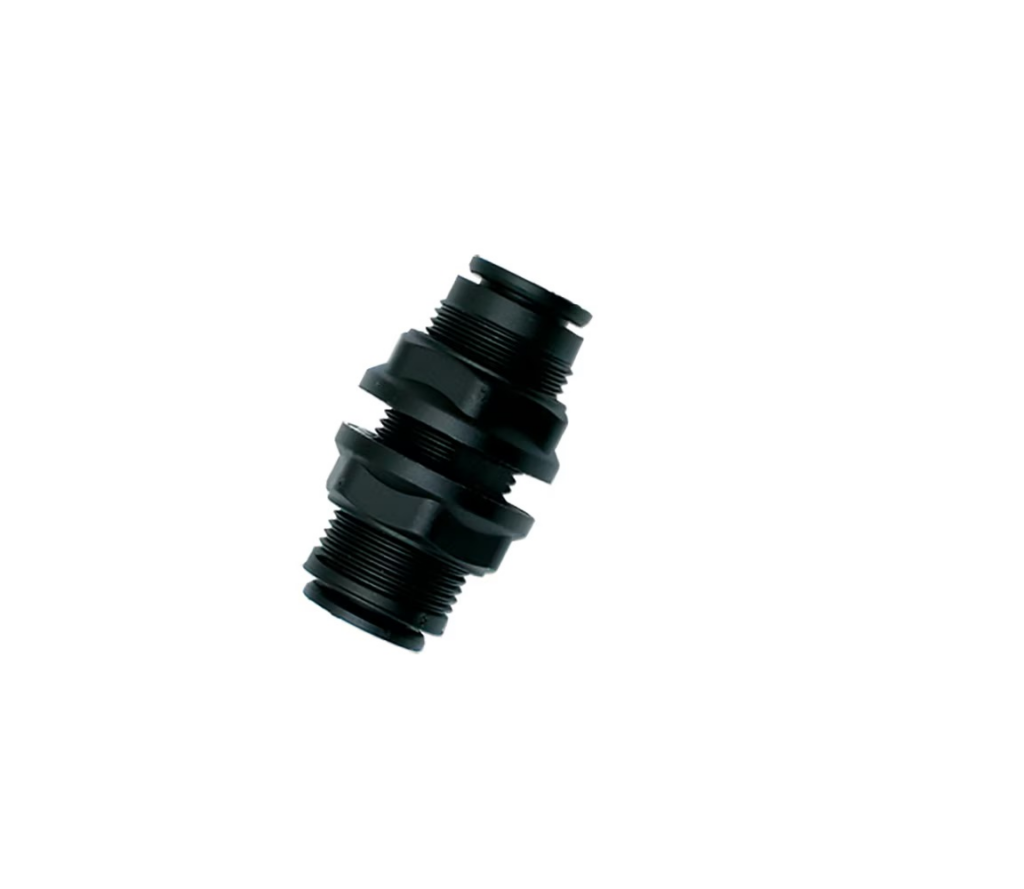

Parker Legris LF3000 10mm Tube-to-Tube Equal Bulkhead Connector
Overview
The Parker Legris LF3000 10mm Tube-to-Tube Equal Bulkhead Connector is a push-in fitting designed for reliable compressed air distribution in packaging and transportation applications.
This connector excels in low-pressure pneumatic systems where simplicity and tool-free installation are priorities. The push-to-connect design eliminates the need for tools or threads, allowing rapid assembly and reconfiguration of air lines. Its straight bulkhead configuration makes it ideal for panel-mounted or manifold installations where space and accessibility matter.
The fitting accommodates 10mm outside diameter tubing on both connections and features a robust technical polymer body with a stainless steel gripping ring for long-term durability. The NBR seal material ensures reliable performance across the -20 °C to +80 °C operating range, whilst the 22mm hexagon body provides secure mounting with a 755 mm-Hg vacuum rating for versatile fluid and gas handling. Supplied in boxes of ten units, this connector serves industrial automation, food and beverage, and process control environments where dependable pneumatic connectivity is essential.
Specifications
| Temperature Range | -20°C to +80°C |
|---|---|
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Hex Size | 22 |
| Weight | 0.011 kg |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Product Series | LF 3000® |
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Quantity per Box | 10 |
| Configuration | Tube to Tube |
| Connection 1 Size | 10 mm Tube O.D. |
| Connection 2 Size | 10 mm Tube O.D. |
| Shape | Straight |
| Application | Pneumatics, Robotics, Automotive, Textile, Vacuum, Packaging |
| Connection 1 Type | Tube |
| Gripping Ring Material | Stainless Steel |
| Connection 2 Type | Tube |
| Vacuum Pressure Rating | 755 mm-Hg |
| Hex Type | Hexagon Metric |
