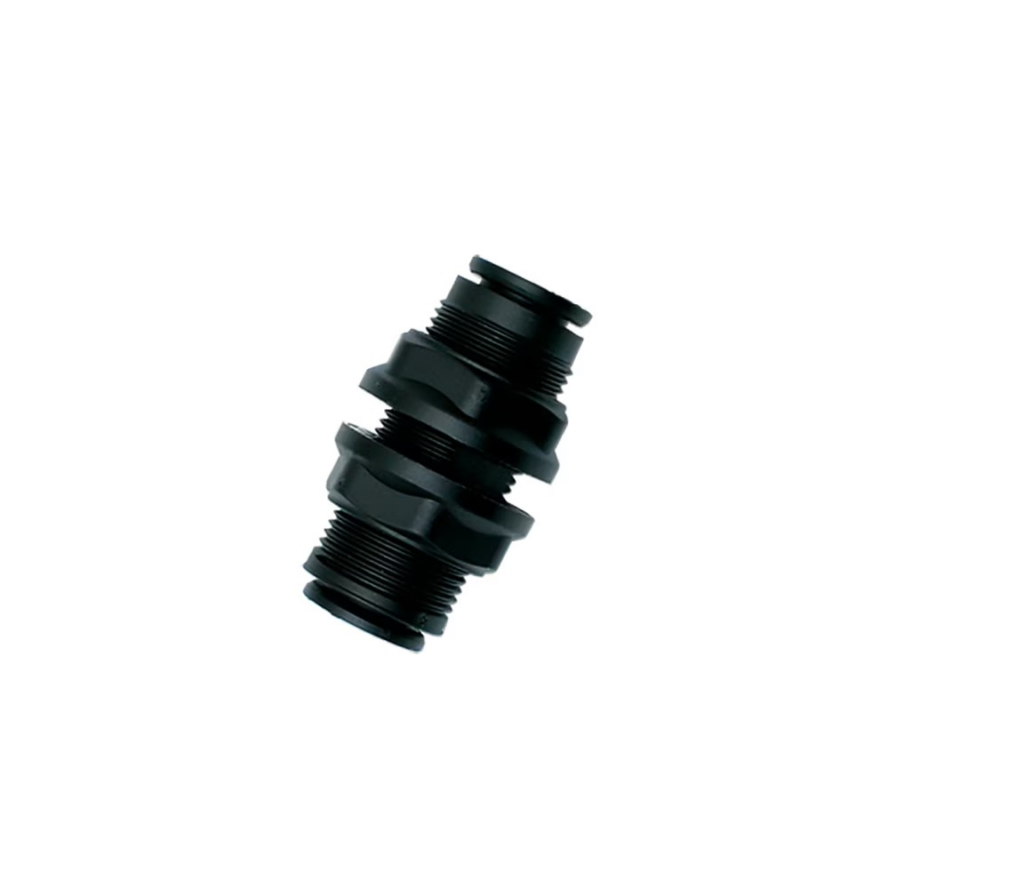

Parker Legris LF3000 14mm Tube-to-Tube Equal Bulkhead Connector
Parker Legris LF3000 straight, 14 mm tube, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 14mm Tube-to-Tube Equal Bulkhead Connector is a push-to-connect fitting designed for reliable pneumatic connections in robotics and automated assembly applications.
This bulkhead connector excels in space-constrained installations where panel-mounted or manifold-integrated connections are required. The equal tube-to-tube configuration accepts 14mm outer diameter tubing on both sides, enabling straightforward system layout without reducing port sizes. Its technical polymer body with stainless steel gripping ring provides excellent corrosion resistance whilst maintaining lightweight performance, making it ideal for mobile robotic platforms and frequent-disconnect applications.
Operating across the temperature range from -20°C to +80°C, the fitting handles standard compressed air systems with an NBR seal ensuring consistent performance across pressure variations. The 29mm hexagon metric design permits secure tightening without rotation of the connector body itself. Supplied in boxes of ten, this LF3000 series connector supports industrial automation, food and beverage processing, and general instrument air distribution systems.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Straight |
| Configuration | Tube to Tube |
| Connection 1 Type | Tube |
| Connection 1 Size | 14 mm Tube O.D. |
| Connection 2 Type | Tube |
| Connection 2 Size | 14 mm Tube O.D. |
| Hex Size | 29 |
| Hex Type | Hexagon Metric |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Application | Pneumatics, Vacuum, Textile, Automotive, Packaging, Robotics |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.028 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.21 |
