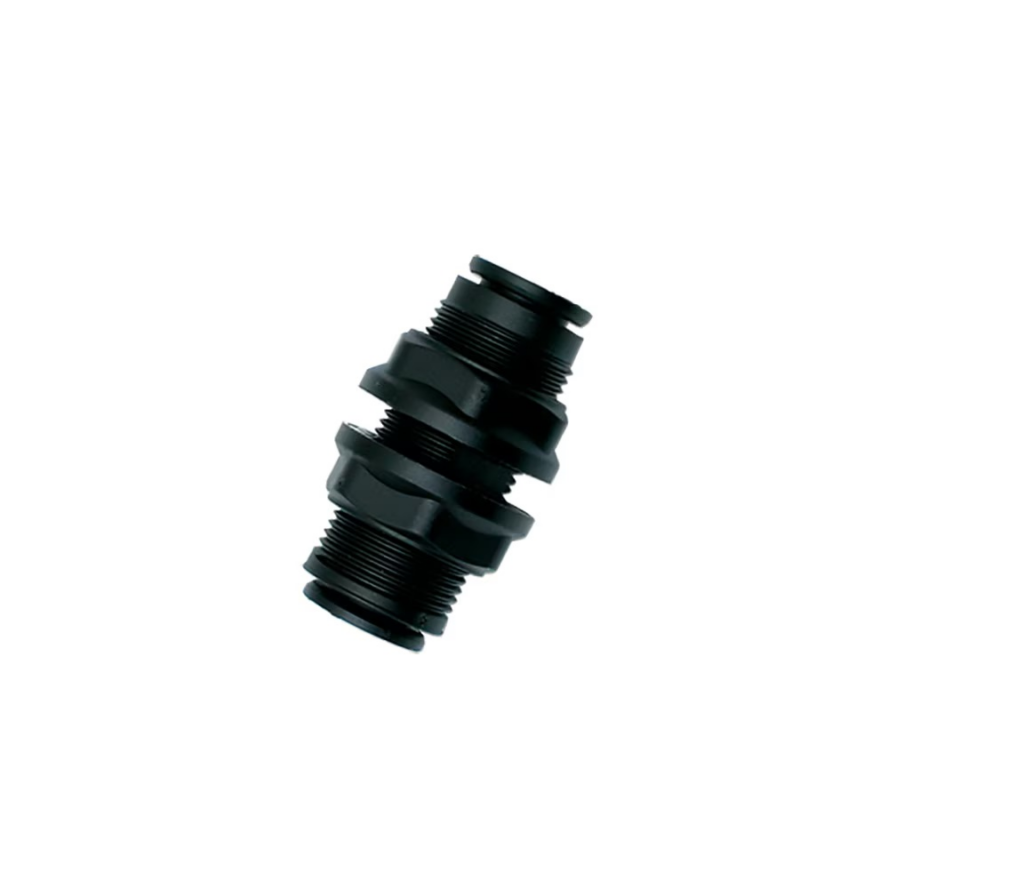

Parker Legris LF3000 8mm Tube-to-Tube Equal Bulkhead Connector
Parker Legris LF3000 straight, 8 mm tube, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 8mm tube-to-tube equal bulkhead connector is a straight push-to-connect fitting designed for compressed air applications in robotics and power generation systems.
This bulkhead connector simplifies installation in panel-mounted and manifold configurations where space is constrained. The technical polymer body with stainless steel gripping ring provides reliable performance across demanding industrial environments, whilst the NBR seals ensure dependable leak-free operation. Rated from −20 °C to +80 °C with a vacuum capability of 755 mm-Hg, the fitting accommodates both positive and negative pressure scenarios typical of low-pressure pneumatic networks.
The 8mm outer diameter tube connections couple with an 18 hexagon metric body, enabling secure installation and straightforward maintenance. Supplied in boxes of ten units, this fitting supports rapid system assembly and inventory management.
Ideal for industrial automation, process instrumentation, and equipment requiring compact, tool-free connection solutions.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Straight |
| Configuration | Tube to Tube |
| Connection 1 Type | Tube |
| Connection 1 Size | 8 mm Tube O.D. |
| Connection 2 Type | Tube |
| Connection 2 Size | 8 mm Tube O.D. |
| Hex Size | 18 |
| Hex Type | Hexagon Metric |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Application | Textile, Vacuum, Pneumatics, Packaging, Automotive, Robotics |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.007 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.21 |
