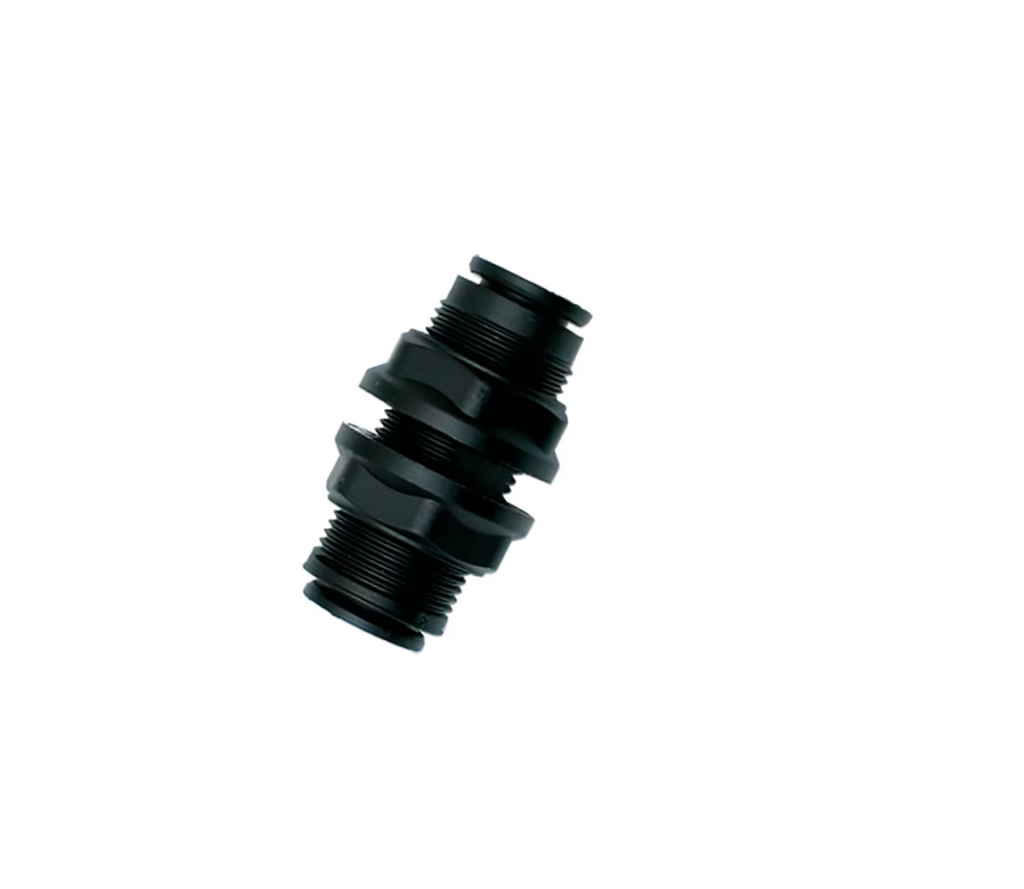

Parker Legris LF3000 12mm Tube-to-Tube Equal Bulkhead Connector
Parker Legris LF3000 straight, 12 mm tube, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 12mm Tube-to-Tube Equal Bulkhead Connector is a push-to-connect fitting designed for reliable pneumatic and low-pressure fluid system applications in automotive and industrial processing environments.
This bulkhead connector simplifies system assembly by enabling direct tube-to-tube connections without the need for threaded ports. The technical polymer body combined with stainless steel gripping rings provides excellent chemical resistance whilst maintaining lightweight construction, ideal for applications where space and weight are considerations. Operating across a temperature range of -20°C to 80°C with a vacuum rating of 755 mm-Hg, the fitting delivers consistent performance in demanding conditions. The 12mm outer diameter tube connection on both sides ensures compatibility with standard tubing, whilst the hexagon metric design (26mm hex size) allows straightforward installation and maintenance using standard tools.
Supplied in boxes of ten, these connectors serve automotive manufacturing, process control systems, instrumentation air networks, and general industrial automation where quick-disconnect capability and leak-free operation are essential.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Straight |
| Configuration | Tube to Tube |
| Connection 1 Type | Tube |
| Connection 1 Size | 12 mm Tube O.D. |
| Connection 2 Type | Tube |
| Connection 2 Size | 12 mm Tube O.D. |
| Hex Size | 26 |
| Hex Type | Hexagon Metric |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Application | Packaging, Robotics, Vacuum, Textile, Pneumatics, Automotive |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.019 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.21 |
