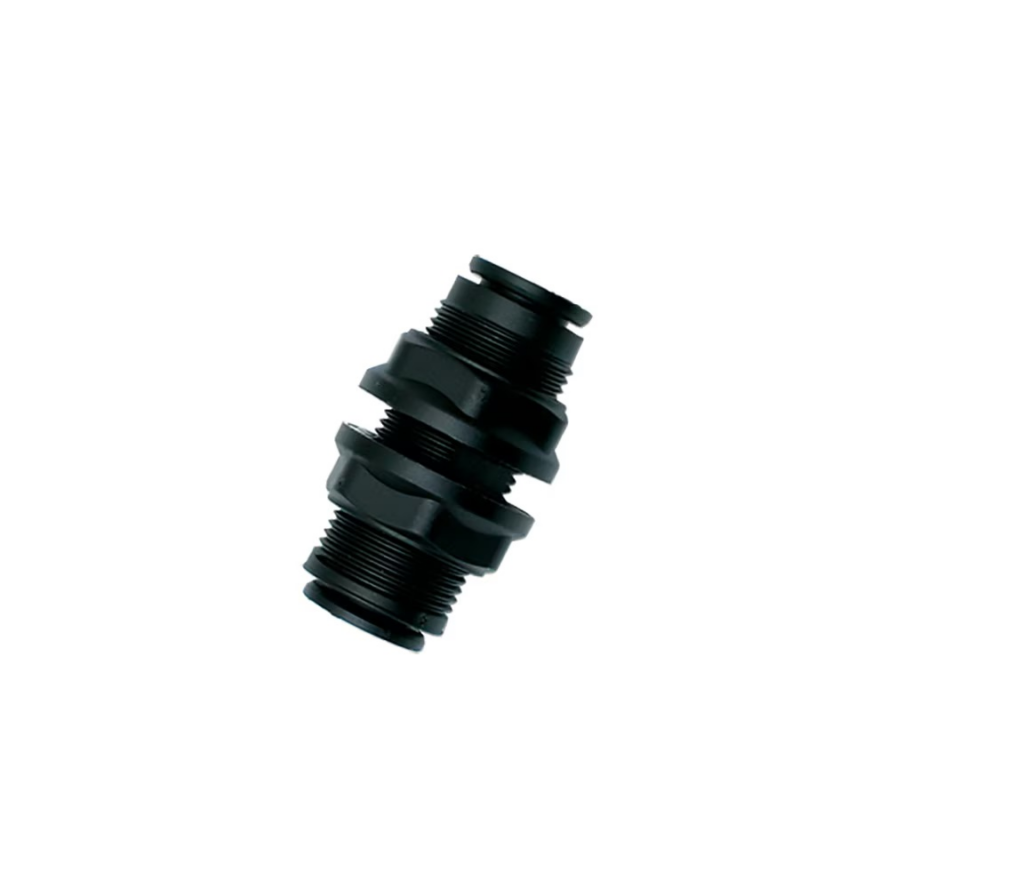

Parker Legris LF3000 6mm Tube-to-Tube Equal Bulkhead Connector
Parker Legris LF3000 straight, 6 mm tube, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 6mm tube-to-tube equal bulkhead connector is a push-to-connect fitting designed for reliable pneumatic connections in packaging and industrial manufacturing equipment.
This straight connector features a technical polymer body with stainless steel gripping ring, delivering secure fluid and gas handling in compressed air applications. The equal configuration accommodates 6mm outer diameter tubing on both connections, whilst the hexagon metric design (15mm hex size) provides stable installation and maintenance access. Operating effectively across a temperature range of –20°C to +80°C with NBR seals and a vacuum rating of 755mm-Hg, this fitting suits low-pressure systems requiring dependable performance without complex assembly procedures.
The bulkhead style enables panel or manifold mounting, making it ideal for space-constrained installations. Supplied in boxes of 10 units at minimal weight, the LF3000 series serves industrial automation, food and beverage processing, and instrument air applications across manufacturing and process control environments.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Straight |
| Configuration | Tube to Tube |
| Connection 1 Type | Tube |
| Connection 1 Size | 6 mm Tube O.D. |
| Connection 2 Type | Tube |
| Connection 2 Size | 6 mm Tube O.D. |
| Hex Size | 15 |
| Hex Type | Hexagon Metric |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Application | Automotive, Robotics, Textile, Pneumatics, Vacuum, Packaging |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.004 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.21 |
