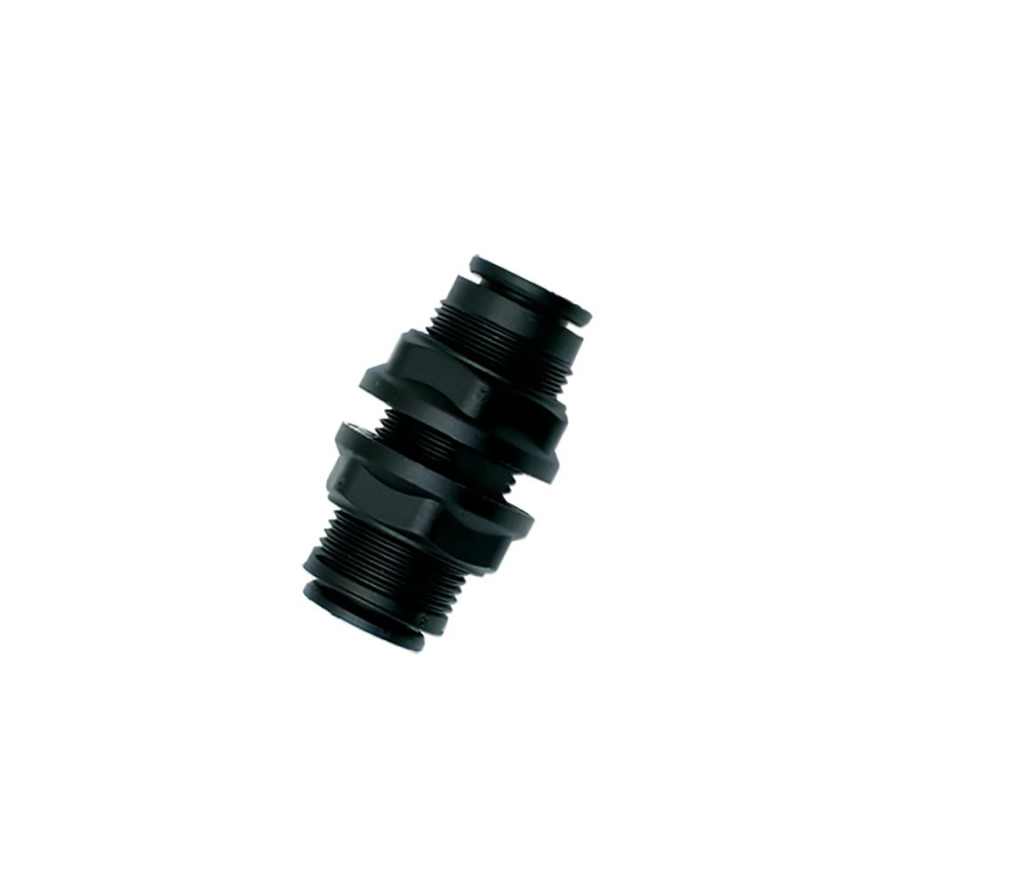

Parker Legris LF3000 4mm Tube-to-Tube Equal Bulkhead Connector
Overview
The Parker Legris LF3000 4mm Tube-to-Tube Equal Bulkhead Connector is a push-to-connect fitting designed for compressed air applications in off-road machinery and pneumatic systems.
This connector excels in applications requiring reliable, leak-free connections without tools or threads. The straight bulkhead design suits panel-mounted installations where space is limited, whilst the stainless steel gripping ring ensures secure tube retention across a wide operating range from –20 °C to +80 °C. Built from technical polymer with an NBR seal, the fitting delivers dependable performance in low-pressure fluid systems whilst remaining lightweight and corrosion-resistant. With a 13 mm hex size and rated to 755 mm-Hg vacuum pressure, this 4 mm connector provides quick, efficient coupling for instrument air, process control, and pneumatic automation across industrial, food and beverage, and off-road equipment sectors.
Specifications
| Temperature Range | -20°C to +80°C |
|---|---|
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Hex Size | 13 |
| Weight | 0.003 kg |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Product Series | LF 3000® |
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Quantity per Box | 10 |
| Configuration | Tube to Tube |
| Connection 1 Size | 4 mm Tube O.D. |
| Connection 2 Size | 4 mm Tube O.D. |
| Shape | Straight |
| Vacuum Pressure Rating | 755 mm-Hg |
| Application | Automotive, Robotics, Vacuum, Textile, Packaging, Pneumatics |
| Connection 2 Type | Tube |
| Connection 1 Type | Tube |
| Hex Type | Hexagon Metric |
| Gripping Ring Material | Stainless Steel |
