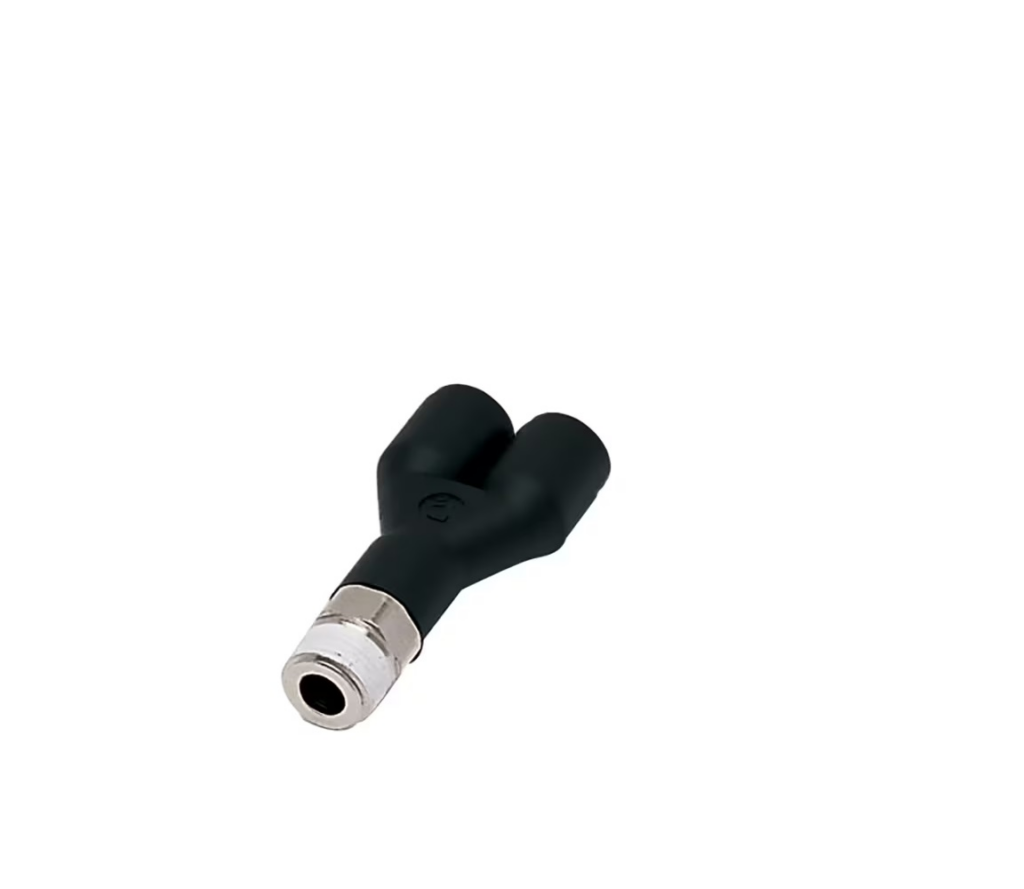

Parker Legris LF3000 12mm - 1/2"Bspt Male Y Piece
Parker Legris LF3000 wye, 12 mm tube to R 1/2, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 12mm – 1/2" BSPT Male Y Piece is a push-to-connect wye fitting designed for compressed air distribution in off-road and automotive applications.
This technical polymer body fitting delivers reliable flow splitting in low-pressure pneumatic systems, making it ideal for applications requiring space-efficient branching without tool-assisted assembly. The 12mm tube inlet connects via push-fit technology to the stainless steel gripping ring, whilst the 1/2" BSPT male port threads directly into manifold or port connections. Built to operate between –20 °C and 80 °C with a vacuum rating of 755 mm-Hg, the fitting handles demanding mobile and stationary equipment environments. The NBR seals ensure consistent performance across temperature fluctuations, and the 24mm hex body permits straightforward installation and maintenance.
Supplied in boxes of 10, this fitting serves manufacturers in agricultural machinery, construction equipment, and mobile hydraulics sectors where quick-connect reliability and compact geometry matter.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Wye |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 12 mm Tube O.D. |
| Connection 2 Type | Male, BSPT |
| Connection 2 Size | R 1/2 inch Thread |
| Hex Size | 24 |
| Hex Type | Hexagon Metric |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Application | Robotics, Textile, Vacuum, Packaging, Pneumatics, Automotive |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.059 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.17 |
