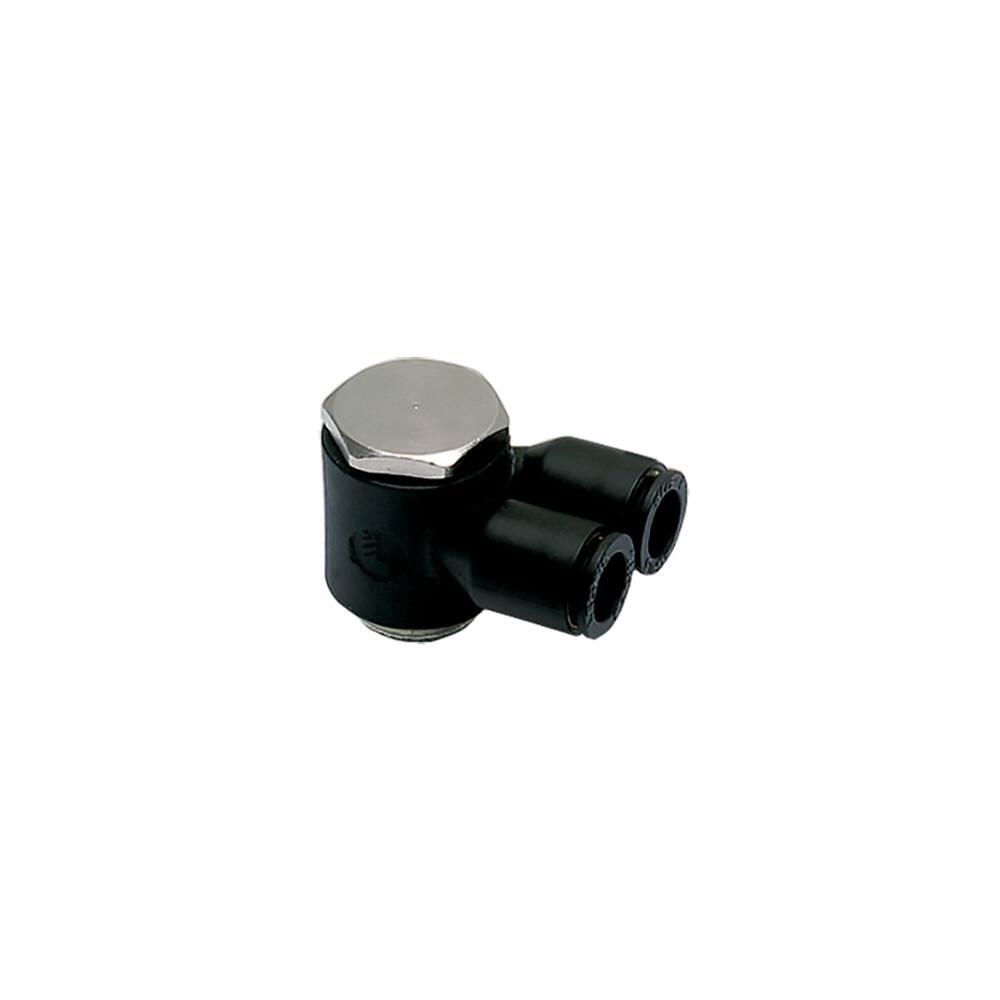

Parker Legris LF3000 6mm-1/4'' Bspp Twin Banjo
Parker Legris LF3000 elbow 90°, 6 mm tube to G 1/4, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 6mm-1/4" BSPP Twin Banjo is a 90° elbow push-to-connect fitting designed for pneumatic and low-pressure fluid applications in robotics and electronics manufacturing.
This banjo connector simplifies assembly in confined spaces where traditional fittings prove impractical. The twin design accommodates tubing at two points, making it ideal for distributing instrument air and control signals across automated systems. Constructed from nickel-plated brass with a stainless steel gripping ring and NBR seals, the fitting delivers reliable performance across a -20 °C to +80 °C operating range and maintains a vacuum rating of 755 mm-Hg. The 6 mm tube connection mates seamlessly with the G 1/4 male BSPP port, whilst the 17 mm hexagon body simplifies installation and maintenance with standard tooling.
This fitting serves industrial automation, robotics integration, and precision control systems where space efficiency and repeatability are essential.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Elbow 90° |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 6 mm Tube O.D. |
| Connection 2 Type | BSPP, Male |
| Connection 2 Size | G 1/4 inch Thread |
| Hex Size | 17 |
| Hex Type | Hexagon Metric |
| Body Material | Technical Polymer, Brass, Nickel-plated |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Application | Packaging, Textile, Vacuum, Automotive, Pneumatics, Robotics |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.035 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.22 |
