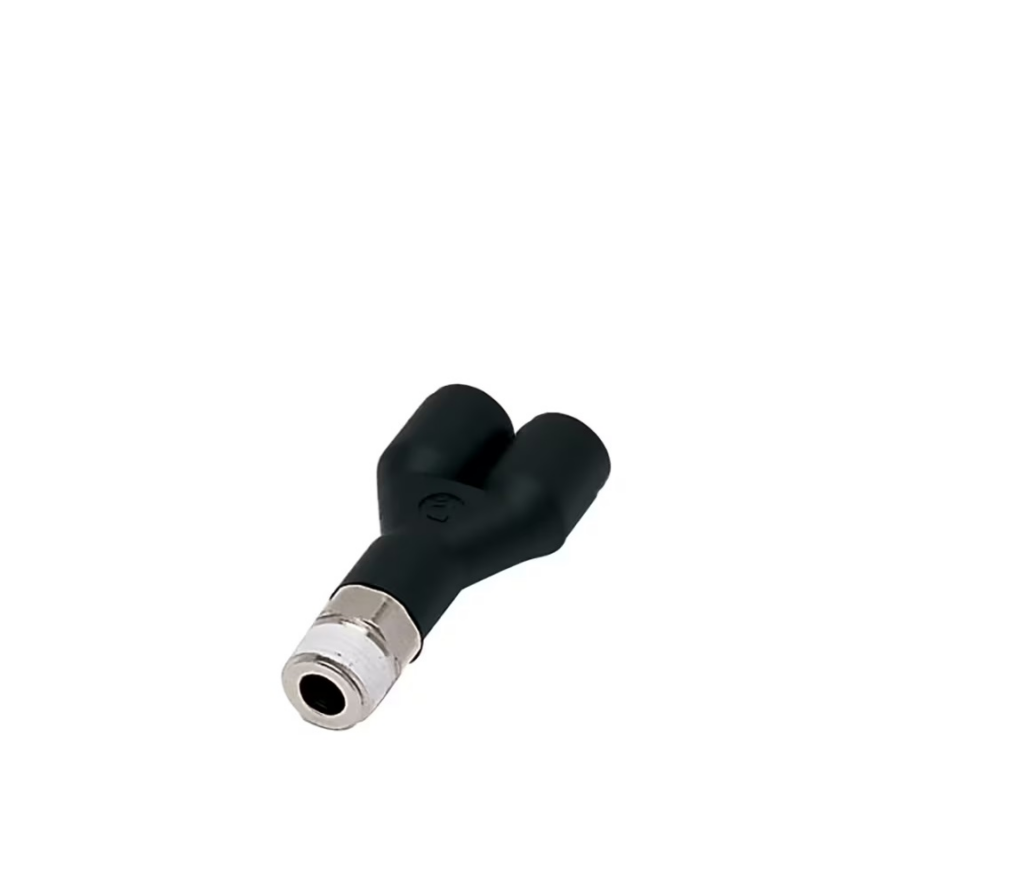

Parker Legris LF3000 6mm - 1/4"Bspt Male Y Piece
Overview
The Parker Legris LF3000 6mm to 1/4" BSPT Male Y Piece is a push-to-connect stud fitting designed for pneumatic and low-pressure fluid distribution systems in automotive and chemical processing applications.
This wye connector simplifies branching configurations by splitting a single 6mm tube connection into two separate ports without the need for additional manifold components. The technical polymer body with stainless steel gripping ring provides reliable, leak-free performance across the -20°C to +80°C operating range, whilst the NBR seals ensure compatibility with compressed air and most industrial gases. The 1/4" BSPT male threaded outlet accommodates standard port connections, and the 14mm hexagon form factor allows straightforward installation with basic hand tools.
Supplied in boxes of ten units, this fitting is ideal for process control lines, instrument air systems, and automated assembly operations where space efficiency and rapid connection changes are valued.
Specifications
| Temperature Range | -20°C to +80°C |
|---|---|
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Hex Size | 14 |
| Weight | 0.021 kg |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Product Series | LF 3000® |
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 6 mm Tube O.D. |
| Connection 2 Size | R 1/4 inch Thread |
| Connection 2 Type | BSPT, Male |
| Shape | Wye |
| Application | Textile, Vacuum, Packaging, Robotics, Pneumatics, Automotive |
| Gripping Ring Material | Stainless Steel |
| Connection 1 Type | Tube |
| Vacuum Pressure Rating | 755 mm-Hg |
| Hex Type | Hexagon Metric |
