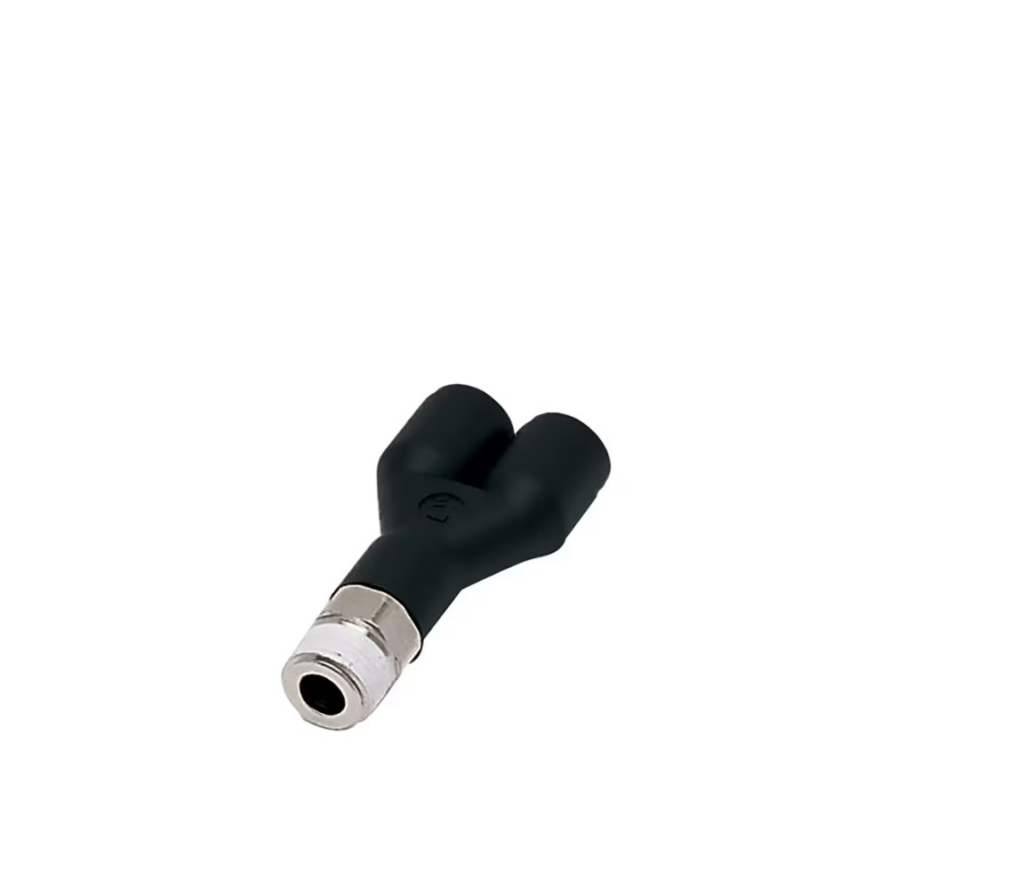

Parker Legris LF3000 6mm - 1/8"Bspt Male Y Piece
Parker Legris LF3000 wye, 6 mm tube to R 1/8, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 6mm to 1/8" BSPT male Y piece is a push-to-connect fitting designed for robotics and industrial pneumatic applications requiring reliable branching connections.
This stud fitting excels in low-pressure systems where quick, tool-free assembly is essential. The Y-shaped configuration enables efficient fluid and gas distribution across multiple circuit branches, reducing installation time and minimising leak points. Its compact technical polymer body with stainless steel gripping ring provides durability whilst remaining lightweight at just 12 grams.
The fitting accommodates 6mm outer diameter tubing on the inlet side and connects to a 1/8" BSPT male port, making it compatible with standard industrial manifolds and valve blocks. Rated for operation between -20°C and 80°C with a vacuum rating of 755 mm-Hg, it handles both positive and negative pressure environments. The NBR seal material ensures chemical resistance across a broad spectrum of fluid types commonly encountered in manufacturing environments.
Supplied in boxes of ten units with a 10mm hexagon metric body for secure installation, this fitting serves industrial automation, food and beverage processing, and instrument air systems.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Wye |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 6 mm Tube O.D. |
| Connection 2 Type | Male, BSPT |
| Connection 2 Size | R 1/8 inch Thread |
| Hex Size | 10 |
| Hex Type | Hexagon Metric |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Application | Pneumatics, Vacuum, Textile, Packaging, Automotive, Robotics |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.012 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.17 |
