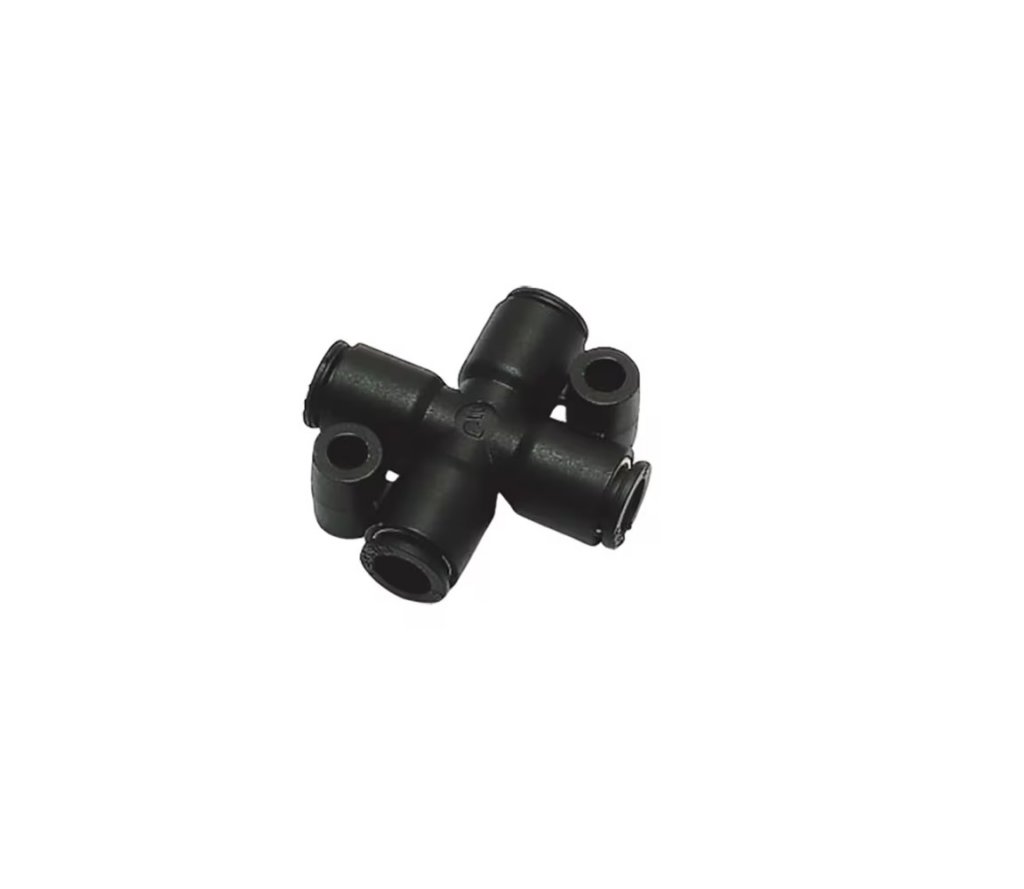

Parker Legris LF3000 8mm Tube To Tube Equal Cross
Parker Legris LF3000 cross, 8 mm tube, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 8mm Tube to Tube Equal Cross is a push-in pneumatic fitting designed for branching air and inert gas distribution in low-pressure systems.
This cross connector simplifies system layout by enabling four-way connections without additional manifold hardware, making it ideal for pneumatic control circuits and compressed air distribution networks. The equal 8mm tube ports on all four sides accommodate standard tubing, whilst the stainless steel gripping ring and NBR seal ensure reliable, leak-free operation across a wide temperature range of −20 °C to +80 °C. With a vacuum rating of 755 mm-Hg, the fitting handles both positive pressure and partial vacuum applications typical of industrial pneumatics.
Manufactured from technical polymer with integrated push-to-connect technology, this fitting eliminates the need for tools or special assembly techniques, reducing installation time and error. The compact cross configuration optimises space in confined system layouts whilst maintaining durability in demanding environments.
Supplied in packs of ten, this connector serves off-road machinery, process automation, and general industrial pneumatic applications.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Cross |
| Configuration | Tube to Tube |
| Connection 1 Type | Tube |
| Connection 1 Size | 8 mm Tube O.D. |
| Connection 2 Type | Tube |
| Connection 2 Size | 8 mm Tube O.D. |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Application | Robotics, Vacuum, Automotive, Packaging, Textile, Pneumatics |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.009 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.18 |
