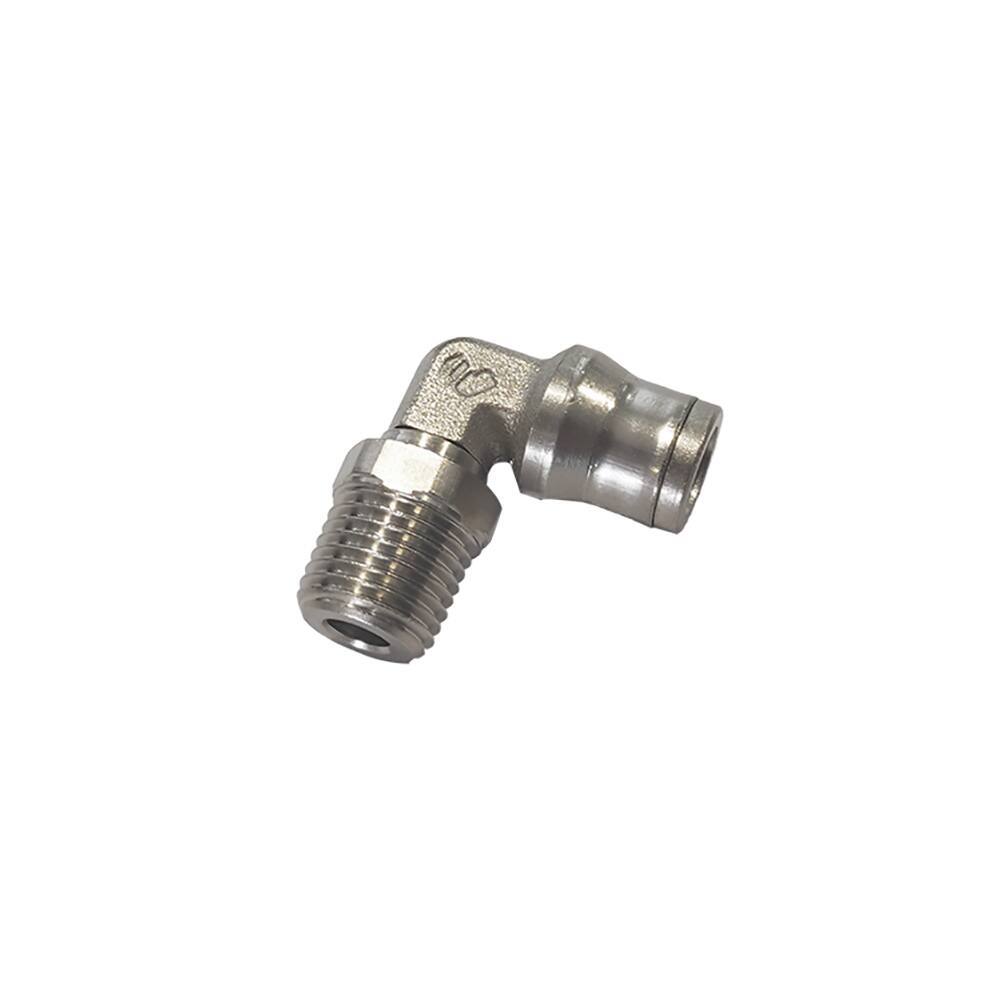

Parker Legris LF3600 12mm - 1/4'' Bspt Male Stud Elbow
Overview
The Parker Legris LF3600 is a 90° elbow push-to-connect fitting designed for low-pressure pneumatic and fluid applications in transportation and healthcare environments. This stud elbow connects a 12 mm tube to a 1/4" BSPT male port, offering reliable performance across a wide operating range from -25 °C to 150 °C and withstanding pressures up to 20 bar. The fitting features FDA Chemical Nickel-plated brass construction with FKM seals, ensuring durability and compatibility with water-based fluids whilst meeting RoHS compliance standards. Its adjustable stud design allows for simple installation and repositioning without tools, making it ideal for retrofit applications and systems requiring flexibility in layout. The compact elbow geometry optimises space in confined installations, whilst the robust brass body resists corrosion in demanding environments. This fitting serves industries ranging from medical device manufacturing and laboratory instrumentation to compressed air distribution and fluid handling systems.
Specifications
| Maximum Operating Pressure | 20 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.049 kg |
| For Fluid Type | Lubricants (Grease), Air (Compressed Air), Water |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 5 |
| Configuration | Tube to Port |
| Connection 1 Size | 12 mm (O.D.) |
| Connection 2 Size | R 1/4 |
| Connection 2 Type | Male BSPT |
| Shape | Elbow 90° |
| Application | Industrial, General Industrial, Medical, In Plant Pneumatic, Fluid Control, Process Control, Pneumatic, Transportation |
| Specifications Met | ATEX DI: 94/9/EC, FDA 21 CFR, REACH, PED, UL 94 V-0 (Please Consult Us), EC RG: 1935/2004, RoHS |
| Coating | FDA Chemical Nickel-plated |
| Connection 3 Type | n/a |
| Connection 1 Type | Tube |
| Connection 3 Size | n/a |
| Vacuum Pressure Rating | 755 mm-Hg |
