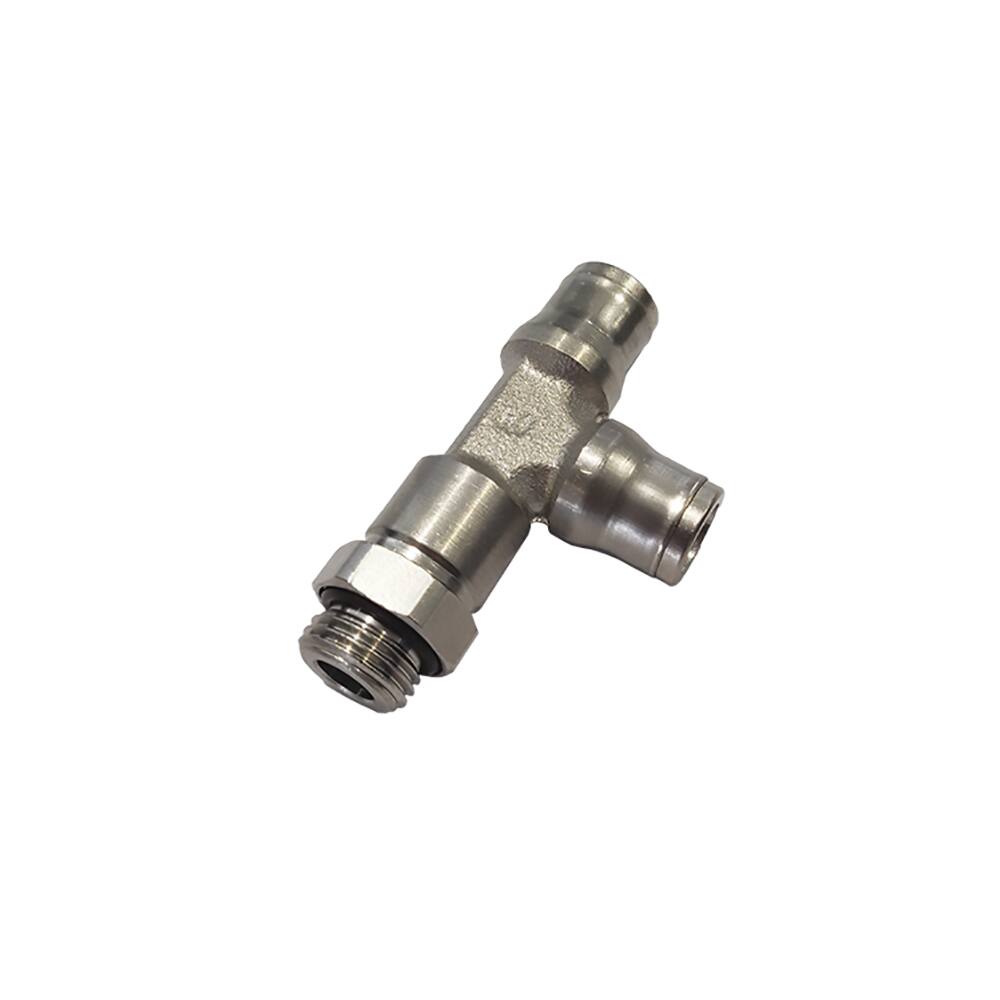

Parker Legris LF3600 12mm - 3/8'' Bspp Male Stud Run Tee
Overview
The Parker Legris LF3600 is a 12mm push-to-connect run tee fitting with a 3/8" BSPP male stud port, designed for compressed air applications in food processing and industrial manufacturing environments.
This run tee configuration allows efficient distribution of compressed air across multiple points in low-pressure fluid systems, eliminating the need for separate manifold blocks in many applications. The nickel-plated brass body withstands operating pressures up to 30 bar and temperatures ranging from −25 °C to 150 °C, making it suitable for both indoor and harsh ambient conditions. FKM seals ensure reliable, leak-free performance whilst maintaining FDA 21 CFR compliance for food-grade applications.
With 12mm tube connections and a G 3/8 male BSPP port, this fitting integrates easily into existing pneumatic networks and instrument air systems. The adjustable stud design facilitates straightforward installation and maintenance on production lines and process equipment across food & beverage, industrial automation, and manufacturing sectors.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.09 kg |
| For Fluid Type | Lubricants (Grease), Water, Air (Compressed Air) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 5 |
| Configuration | Tube to Port |
| Connection 1 Size | 12 mm (O.D.) |
| Connection 2 Size | 12 mm (O.D.) |
| Connection 2 Type | Tube |
| Connection 3 Size | G 3/8 |
| Connection 3 Type | Male BSPP |
| Shape | Run Tee |
| Application | In-Plant Automotive, Printing, Medical Equipment, Misting, Welding Robots, Food Processing |
| Specifications Met | UL 94 V-0 (Please Consult Us), REACH, ATEX DI: 94/9/EC, RoHS, EC RG: 1935/2004, PED, FDA 21 CFR (Food) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Connection 1 Type | Tube |
| Coating | FDA Chemical Nickel-plated |
