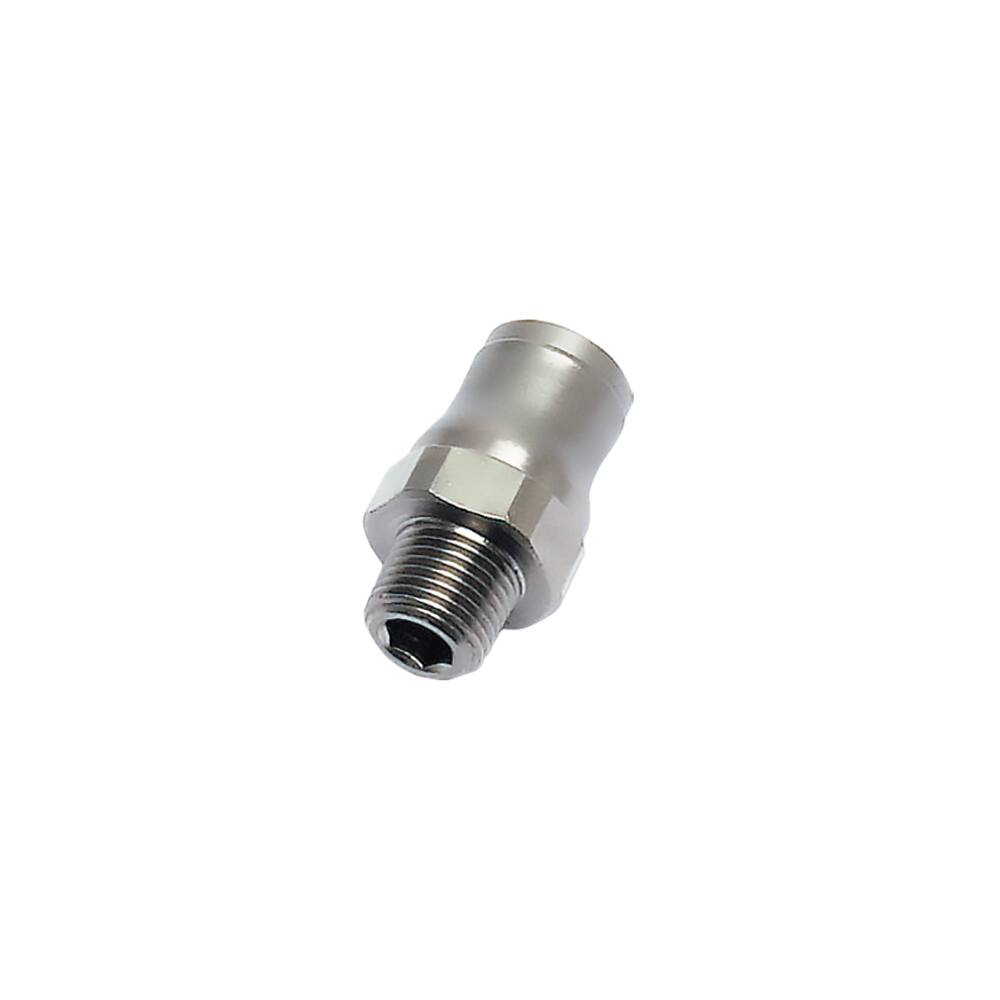

Parker Legris LF3600 4mm - 1/8'' Bspt Male Stud Fitting
Overview
The Parker Legris LF3600 is a straight push-to-connect stud fitting designed for in-plant automotive applications and low-pressure fluid systems requiring reliable tube-to-port connections.
This fitting excels in water and compressed air applications where simplicity and repeatability matter. The push-to-connect design eliminates the need for tools or fittings adjustment, reducing assembly time and minimising leak points in pneumatic networks. Its 4 mm tube connection pairs with a R 1/8 male BSPT port, making it ideal for compact manifold integration and space-constrained installations.
Constructed from FDA-approved chemical nickel-plated brass with FKM seals, the fitting operates reliably across a -25 °C to +150 °C temperature range and withstands working pressures up to 30 bar. The robust coating resists corrosion in humid industrial environments, whilst the vacuum rating of 755 mm-Hg suits applications spanning both positive and negative pressure scenarios. Supplied in boxes of 10 units, this fitting serves automotive manufacturing, industrial automation, and process control sectors where dependable low-pressure connectivity is essential.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.009 kg |
| For Fluid Type | Lubricants (Grease), Air (Compressed Air), Water |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 4 mm (O.D.) |
| Connection 2 Size | R 1/8 |
| Connection 2 Type | Male BSPT |
| Shape | Straight |
| Application | Misting, Medical Equipment, Welding Robots, Printing, Food Processing, In-Plant Automotive |
| Specifications Met | ATEX DI: 94/9/EC, RoHS, EC RG: 1935/2004, UL 94 V-0 (Please Consult Us), FDA 21 CFR, REACH, PED |
| Connection 3 Type | n/a |
| Coating | FDA Chemical Nickel-plated |
| Connection 1 Type | Tube |
| Connection 3 Size | n/a |
| Vacuum Pressure Rating | 755 mm-Hg |
