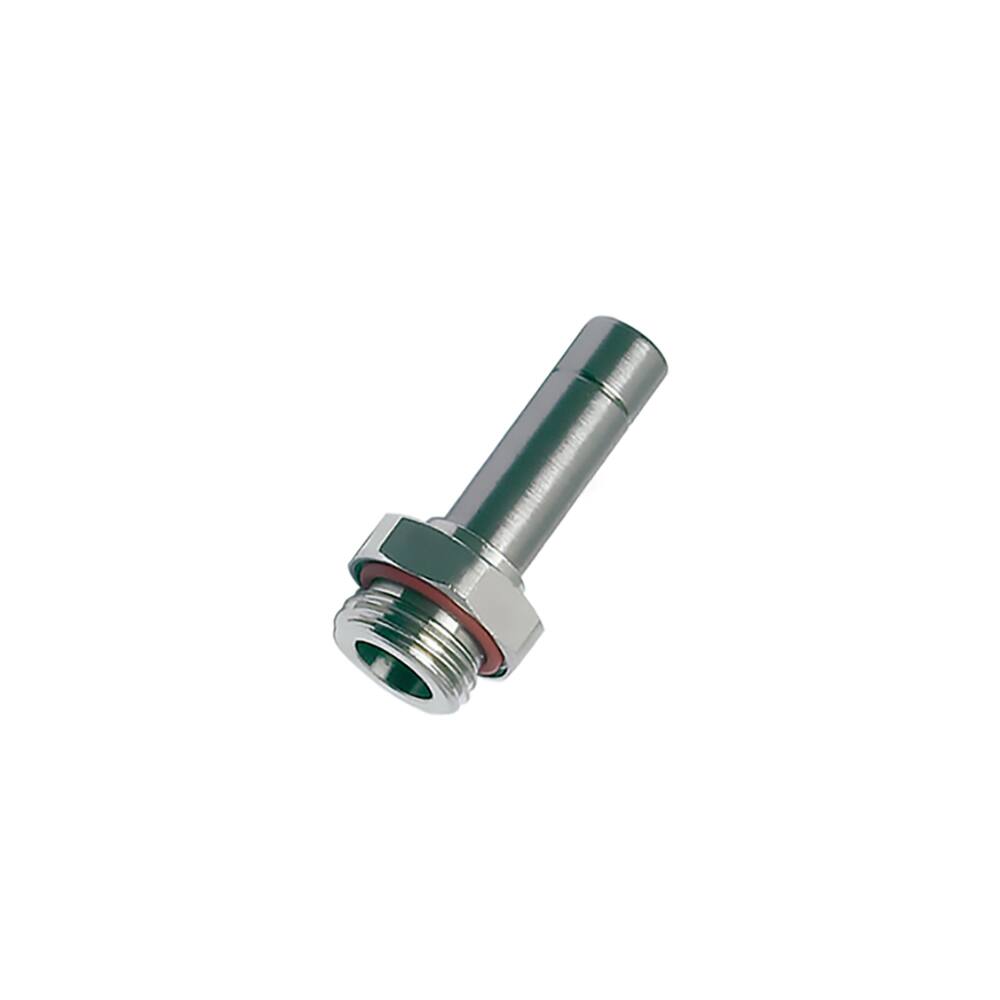

Parker Legris LF3600 4mm - M5 Bspp Male Stud Standpipe
Overview
The Parker Legris LF3600 4mm to M5 BSPP male stud standpipe is a push-to-connect fitting designed for low-pressure water and fluid distribution in transportation and industrial processing applications.
This straight stud fitting bridges 4 mm tubing to M5×0.8 metric ports, making it ideal for compact manifold and valve connections where space is limited. The nickel-plated brass body with FKM seals delivers reliable performance across a -25 °C to +150 °C operating range, whilst maintaining a maximum working pressure of 30 bar and vacuum rating of 755 mm-Hg. The push-to-connect technology eliminates the need for tools during assembly, reducing installation time and error on the workshop floor.
Supplied in boxes of 10 units and compliant with EC Regulation 1935/2004 for food-contact applications, this standpipe serves industrial automation, process control, and instrument air systems across manufacturing and logistics sectors.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.003 kg |
| For Fluid Type | Air (Compressed Air), Lubricants (Grease), Water |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube Stem to Port |
| Connection 1 Size | 4 mm (O.D.) |
| Connection 2 Size | M5x0.8 |
| Connection 2 Type | Male Metric |
| Shape | Straight |
| Specifications Met | REACH, FDA 21 CFR (Food), ATEX DI: 94/9/EC, UL 94 V-0 (Please Consult Us), PED, RoHS, EC RG: 1935/2004 |
| Connection 3 Type | n/a |
| Application | General Industrial, Industrial, In Plant Pneumatic, Pneumatic, Process Control, Medical, Fluid Control, Transportation |
| Connection 1 Type | Tube |
| Vacuum Pressure Rating | 755 mm-Hg |
| Connection 3 Size | n/a |
| Coating | FDA Chemical Nickel-plated |
