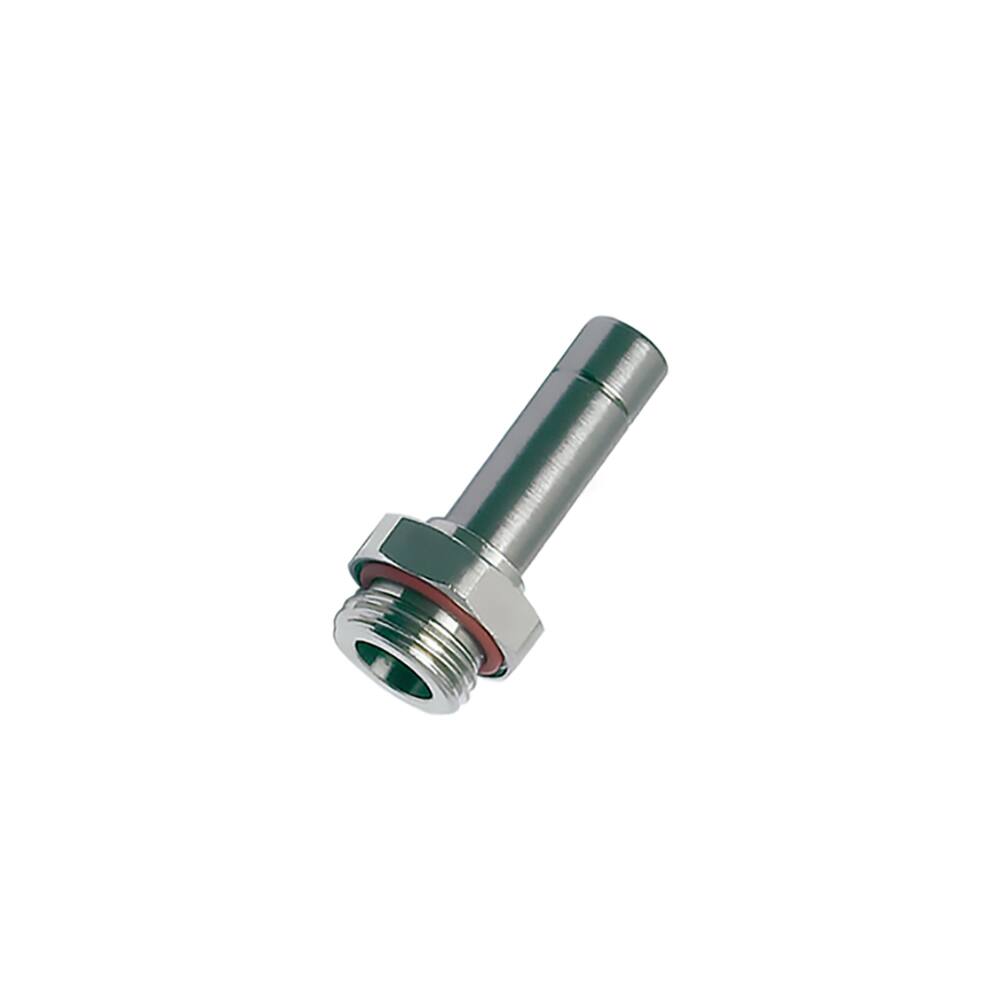

Parker Legris LF3600 8mm - 1/8'' Bspp Male Stud Standpipe
Overview
The Parker Legris LF3600 is an 8mm push-to-connect stud standpipe designed for reliable tube-to-port connections in low-pressure pneumatic and fluid systems. This straight fitting terminates in a G 1/8 male BSPP port, making it ideal for integrating tubing into compact manifold assemblies and control modules where space and assembly speed are critical.
The nickel-plated brass construction with FKM seals provides excellent corrosion resistance and chemical compatibility, whilst withstanding operating pressures up to 30 bar and temperatures from −25 °C to 150 °C. Push-to-connect technology eliminates the need for wrenches or thread sealant, reducing installation time and error rates on compressed air, inert gas, and water-based systems. Each fitting accommodates standard 8mm outer diameter tubing with a secure, repeatable grip that maintains system integrity through vibration and thermal cycling.
Widely specified across industrial processing, transportation, and pneumatic automation applications, this Legris stud fitting supports both rapid prototyping and high-volume production environments.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.01 kg |
| For Fluid Type | Lubricants (Grease), Air (Compressed Air), Water |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube Stem to Port |
| Connection 1 Size | 8 mm (O.D.) |
| Connection 2 Size | G 1/8 |
| Connection 2 Type | Male BSPP |
| Shape | Straight |
| Specifications Met | UL 94 V-0 (Please Consult Us), REACH, RoHS, ATEX DI: 94/9/EC, FDA 21 CFR (Food), PED, EC RG: 1935/2004 |
| Application | Process Control, Medical, Fluid Control, Industrial, Pneumatic, In Plant Pneumatic, General Industrial, Transportation |
| Vacuum Pressure Rating | 755 mm-Hg |
| Connection 3 Type | n/a |
| Connection 3 Size | n/a |
| Connection 1 Type | Tube |
| Coating | FDA Chemical Nickel-plated |
