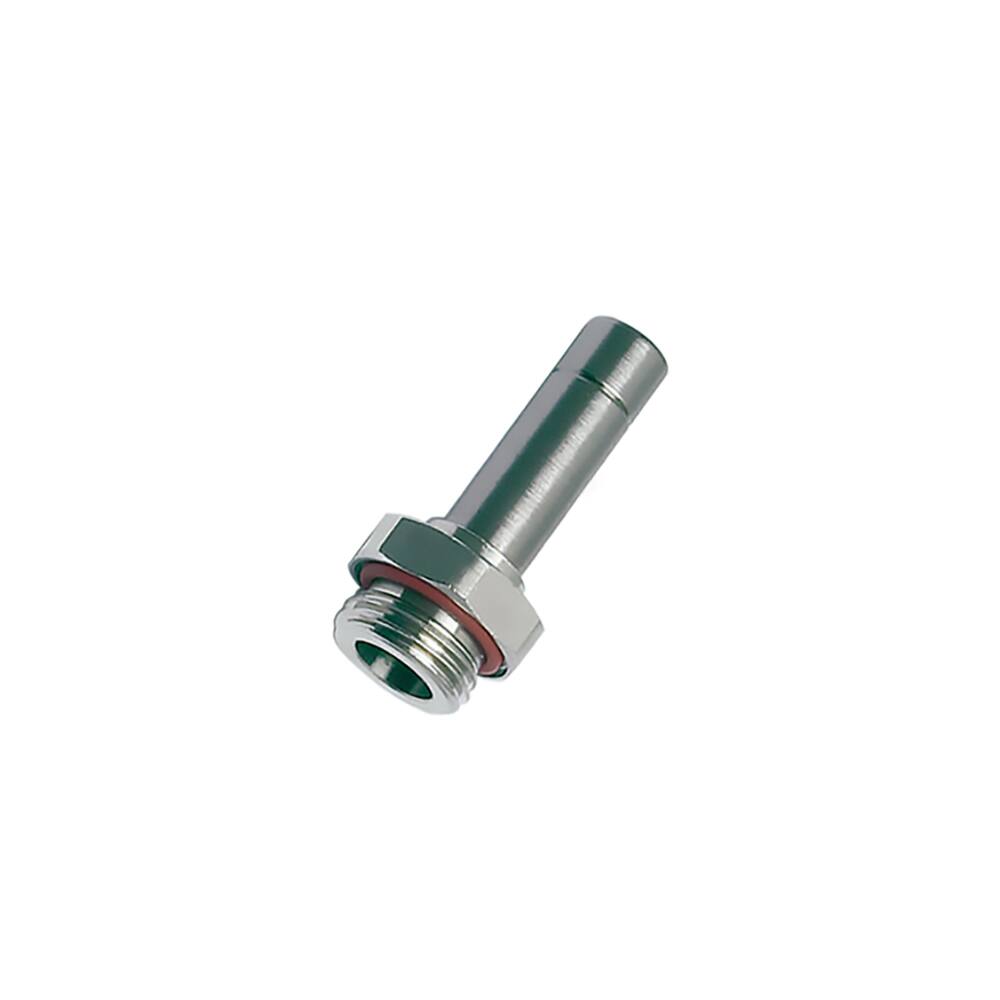

Parker Legris LF3600 12mm - 1/2'' Bspp Male Stud Standpipe
Overview
The Parker Legris LF3600 12mm to 1/2" BSPP male stud standpipe is a push-to-connect fitting designed for low-pressure pneumatic and fluid distribution applications in general industrial environments. This straight stud fitting provides a reliable connection between 12mm outer diameter tubing and 1/2" BSPP male ports, making it ideal for in-plant pneumatic systems where quick, tool-free assembly is essential. The nickel-plated brass body delivers excellent corrosion resistance whilst maintaining compatibility with lubricants and greases up to 30 bar operating pressure and temperatures ranging from -25°C to 150°C. With FKM seals and FDA 21 CFR compliance, this fitting ensures secure, leak-free performance across diverse industrial applications including food processing, pharmaceutical manufacturing, and general automation systems where hygiene and reliability are paramount.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.033 kg |
| For Fluid Type | Air (Compressed Air), Water, Lubricants (Grease) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube Stem to Port |
| Connection 1 Size | 12 mm (O.D.) |
| Connection 2 Size | G 1/2 |
| Connection 2 Type | Male BSPP |
| Shape | Straight |
| Application | Fluid Control, Transportation, Pneumatic, Process Control, General Industrial, Medical, Industrial, In Plant Pneumatic |
| Specifications Met | PED, ATEX DI: 94/9/EC, UL 94 V-0 (Please Consult Us), RoHS, EC RG: 1935/2004, REACH, FDA 21 CFR (Food) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Connection 3 Type | n/a |
| Connection 3 Size | n/a |
| Connection 1 Type | Tube |
| Coating | FDA Chemical Nickel-plated |
