Maximum Operating Pressure
20 bar
Connection 2 Type
Male, BSPT
Connection 1 Type
Tube

Overview

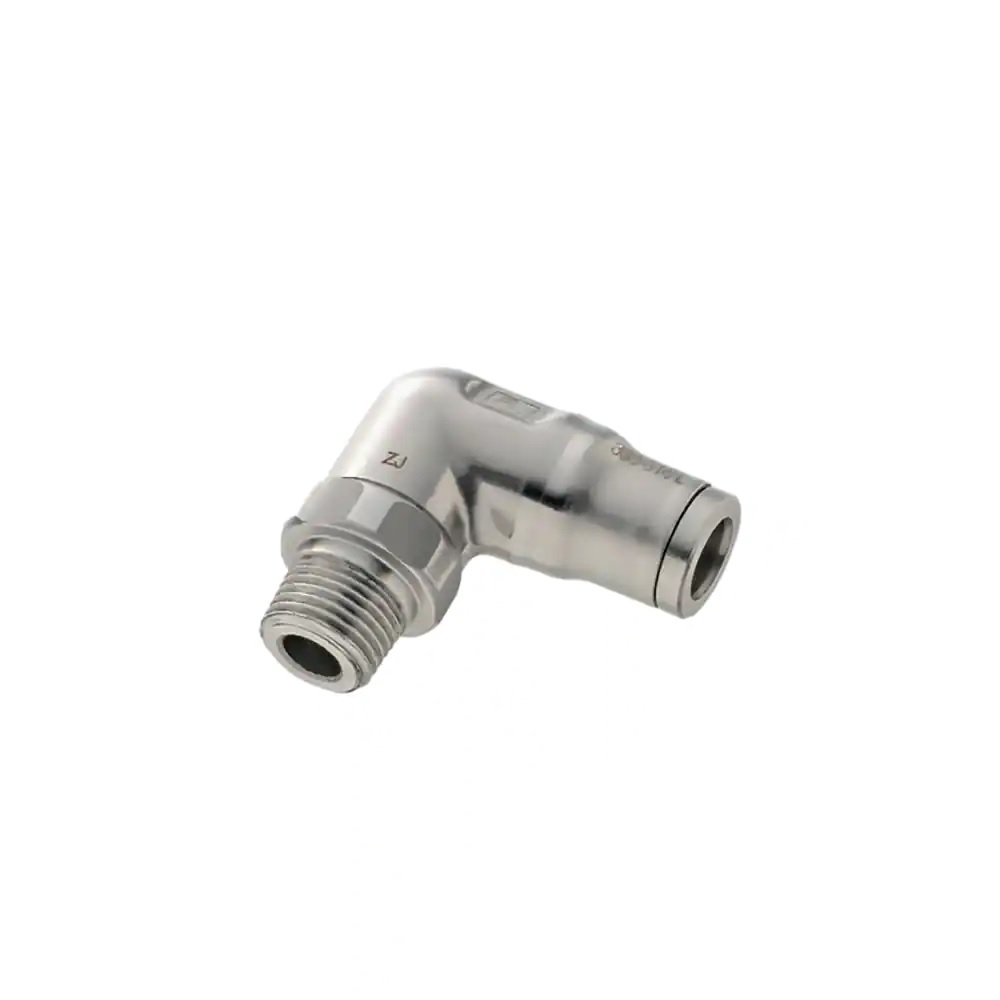

The Parker Legris LF3800 12mm – 3/8" BSPT male compact stud elbow is a 90-degree push-to-connect fitting designed for medical, food processing and water distribution applications in low-pressure pneumatic systems.

This stainless steel 316L elbow simplifies installation and maintenance in environments where corrosion resistance and hygiene are critical. The push-to-connect design on the 12mm tube side eliminates the need for ferrules or specialised tools, whilst the 3/8" BSPT male thread on the port side provides a reliable, sealed connection to pneumatic manifolds and instruments. Operating safely from –25 °C to 150 °C at pressures up to 20 bar, with a vacuum rating of 1 bar, this fitting handles the demanding conditions of both compressed air and water-based systems. The robust FKM seals and 22mm hex size ensure secure installation and service access.

Supplied in boxes of two units, this compact stud fitting serves food and beverage processing, medical device assembly, and general instrumentation where durability and cleanroom compatibility are required.

Source: www.parker.com ↗

Specifications

Connection Type Tube to Port
Maximum Operating Pressure 20 bar
Temperature Range -25°C to +150°C
Body Material Stainless Steel AISI 316L
Seal Material FKM
Hex Size 22 mm
Weight 0.09 kg
For Fluid Type Other Fluids: Please Consult Us, Air, Water
Product Series LF 3800
Product Type Push-to-Connect Fittings
Quantity per Box 2
Configuration Tube to Port
Connection 1 Size 12 mm Tube O.D.
Connection 2 Size R 3/8 inch Thread
Connection 2 Type Male, BSPT
Shape Elbow 90°
Vacuum Pressure Rating 755 mm-Hg, 1 bar
Specifications Met USDA NSF H1 (Grease), FDA 21 CFR, EC 1935/2004, RoHS DI: 2011/65/EC, UL 94 V-0 (Seal), ATEX DI: 94/9/EC, PED DI: 97/23/EC, REACH DI: 1907/2006, ISO 14743 (Pneumatic Transmissions), RoHS DI: 2002/95/EC
Application Petrochemicals, Medical Equipment, Chemical Transfer, Pharmaceutical, Paper Industry, Food Processing
Connection 1 Type Tube
Catalogue reference Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.36
