R1 674,33Login for your trade price excl. VAT · per unit
Trade customer? Sign in for your tier price.
On backorder · approx. 35 days
Maximum Operating Pressure
30 bar
Connection 2 Type
Tube (O.D.)
Connection 1 Type
Tube

Overview

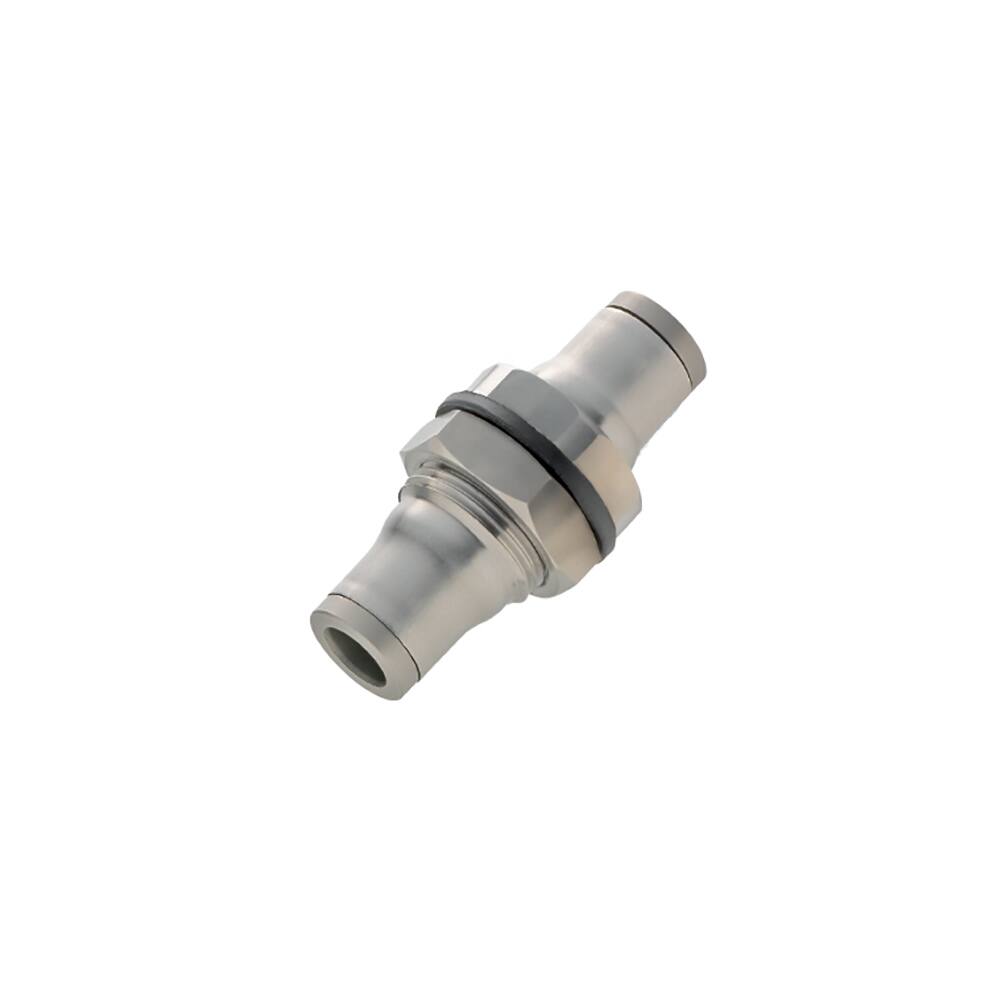

The Parker Legris LF3800 12mm Equal Bulkhead Connector is a straight push-to-connect fitting designed for reliable tube-to-tube connections in low-pressure pneumatic and water distribution systems.

This stainless steel 316L connector excels in demanding environments where corrosion resistance and durability are critical. The robust design suits applications across chemical processing, paper manufacturing, and instrument air systems where pressure fluctuations and temperature variations are commonplace. With a 24mm hex body and compact footprint, it integrates seamlessly into space-constrained panel installations and manifold assemblies.

Engineered to operate between −25 °C and 150 °C, the connector handles extreme temperatures whilst maintaining a maximum working pressure of 30 bar. The FKM seals ensure reliable performance even in water-intensive processes, whilst the 12mm tube connection provides efficient flow without excessive pressure drop. The vacuum rating of 1 bar makes it suitable for both positive and mild negative pressure applications.

Supplied in pairs, this bulkhead connector meets PED Directive 97/23/EC and serves industries including chemical processing, paper production, and general industrial automation.

Source: www.parker.com ↗

Specifications

Connection Type Tube to Tube
Maximum Operating Pressure 30 bar
Temperature Range -25°C to +150°C
Body Material Stainless Steel AISI 316L
Seal Material FKM
Hex Size 24 mm
Weight 0.059 kg
For Fluid Type Air, Other Fluids: Please Consult Us, Water
Product Series LF 3800
Product Type Push-to-Connect Fittings
Quantity per Box 2
Configuration Tube to Tube
Connection 1 Size 12 mm Tube O.D.
Connection 2 Size 12 mm Tube O.D.
Connection 2 Type Tube (O.D.)
Shape Straight
Specifications Met UL 94 V-0 (Seal), ISO 14743 (Pneumatic Transmissions), RoHS DI: 2011/65/EC, EC 1935/2004, USDA NSF H1 (Grease), RoHS DI: 2002/95/EC, ATEX DI: 94/9/EC, REACH DI: 1907/2006, FDA 21 CFR, PED DI: 97/23/EC
Application Pharmaceutical, Chemical Transfer, Medical Equipment, Petrochemicals, Food Processing, Paper Industry
Vacuum Pressure Rating 755 mm-Hg, 1 bar
Connection 1 Type Tube
Catalogue reference Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.37
