Maximum Operating Pressure
20 bar
Connection 2 Type
BSPP, Male
Connection 1 Type
Tube

Overview

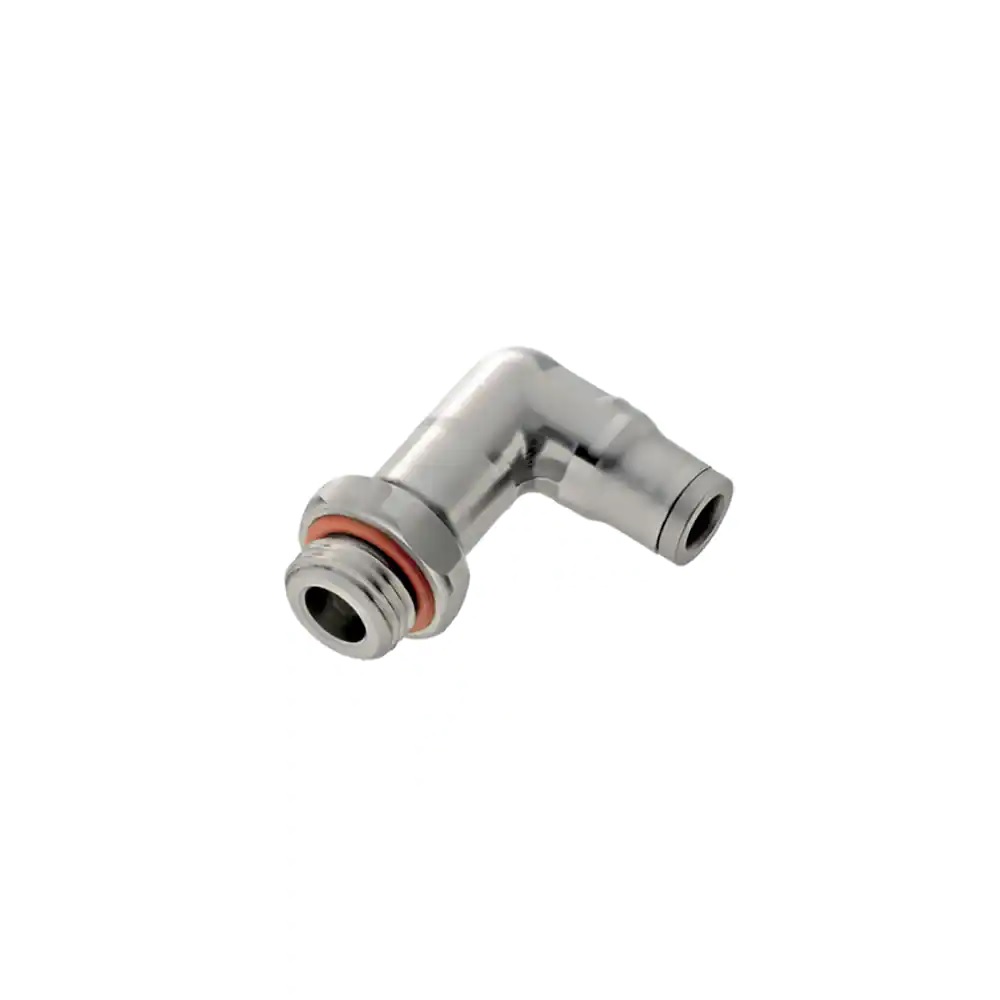

The Parker Legris LF3800 4mm to 1/4" BSPP male stud elbow is a 90-degree push-to-connect fitting designed for low-pressure pneumatic and fluid distribution systems in petrochemical applications.

This stud elbow simplifies installation in confined spaces where direct tubing runs are impractical. The push-to-connect design eliminates the need for tools during assembly, reducing downtime and installation errors on production lines. Its 90-degree geometry optimises space utilisation in compact manifold layouts whilst maintaining reliable performance across a broad operating range from −13 °C to 150 °C.

Manufactured from stainless steel AISI 316L with FKM seals, the fitting withstands corrosive environments and meets EC 1935/2004 food-contact regulations, making it suitable for hygienic applications. It accommodates 4 mm outer-diameter tubing and features a G 1/4 male BSPP port, rated to 20 bar maximum working pressure with a vacuum rating of 755 mm-Hg. The 13 mm hex body facilitates secure tightening during port installation.

This fitting serves food and beverage processing, pharmaceutical manufacturing, and general industrial automation where corrosion resistance and regulatory compliance are essential.

Source: www.parker.com ↗

Specifications

Connection Type Tube to Port
Maximum Operating Pressure 20 bar
Temperature Range -25°C to +150°C
Body Material Stainless Steel AISI 316L
Seal Material FKM
Hex Size 13 mm
Weight 0.018 kg
For Fluid Type Air, Water, Other Fluids: Please Consult Us
Product Series LF 3800
Product Type Push-to-Connect Fittings
Quantity per Box 2
Configuration Tube to Port
Connection 1 Size 4 mm Tube O.D.
Connection 2 Size G 1/4 inch Thread
Connection 2 Type BSPP, Male
Shape Elbow 90°
Application Pharmaceutical, Paper Industry, Food Processing, Medical Equipment, Chemical Transfer, Petrochemicals
Specifications Met ATEX DI: 94/9/EC, RoHS DI: 2002/95/EC, REACH DI: 1907/2006, UL 94 V-0 (Seal), ISO 14743 (Pneumatic Transmissions), RoHS DI: 2011/65/EC, USDA NSF H1 (Grease), FDA 21 CFR, PED DI: 97/23/EC, EC 1935/2004
Vacuum Pressure Rating 1 bar, 755 mm-Hg
Connection 1 Type Tube
Catalogue reference Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.35
