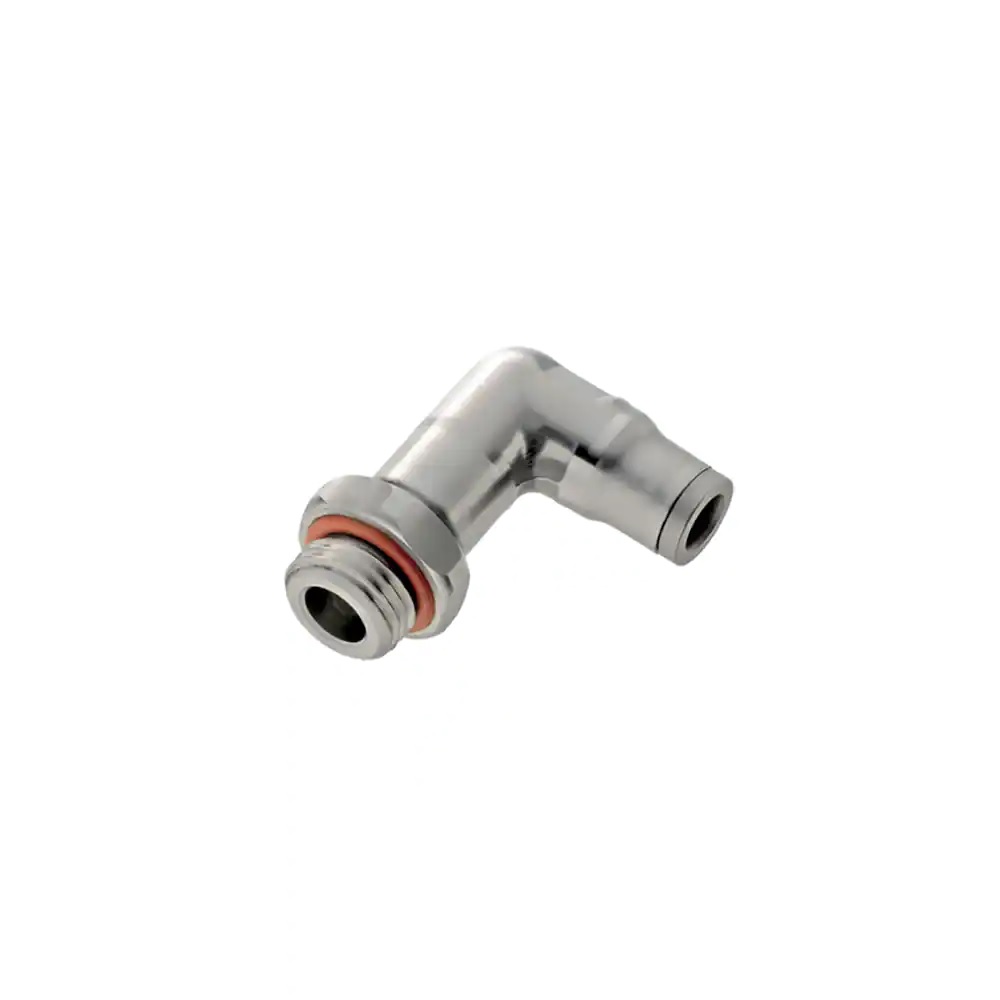

Parker Legris LF3800 6mm - 1/8"Bspp Male Stud Elbow
Overview
The Parker Legris LF3800 is a 90° stud elbow connector designed for low-pressure pneumatic and fluid systems in the paper and chemicals processing industries. This push-to-connect fitting bridges 6 mm tubing to a G 1/8 male BSPP port, delivering reliable performance across demanding applications where space and simplicity matter. Manufactured from stainless steel AISI 316L with FKM seals, it withstands pressures up to 290 psi and operates reliably between –25 °C and 150 °C, making it well-suited to both heated processes and cold-storage environments. The compact elbow design and tool-free push-to-connect system minimise installation time and reduce potential leak points, whilst the 13 mm hex size permits easy disconnection when maintenance is required. Vacuum-rated to 755 mm-Hg and RoHS compliant, this fitting serves process control, instrumentation, and automated production systems across chemicals, paper manufacturing, and related industrial sectors.
Specifications
| Connection Type | Tube to Port |
|---|---|
| Maximum Operating Pressure | 20 bar |
| Temperature Range | -25°C to +150°C |
| Body Material | Stainless Steel AISI 316L |
| Seal Material | FKM |
| Hex Size | 13 mm |
| Weight | 0.031 kg |
| For Fluid Type | Air, Water, Other Fluids: Please Consult Us |
| Product Series | LF 3800 |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 2 |
| Configuration | Tube to Port |
| Connection 1 Size | 6 mm Tube O.D. |
| Connection 2 Size | G 1/8 inch Thread |
| Connection 2 Type | BSPP, Male |
| Shape | Elbow 90° |
| Application | Food Processing, Petrochemicals, Pharmaceutical, Chemical Transfer, Medical Equipment, Paper Industry |
| Vacuum Pressure Rating | 1 bar, 755 mm-Hg |
| Specifications Met | UL 94 V-0 (Seal), RoHS DI: 2011/65/EC, EC 1935/2004, REACH DI: 1907/2006, USDA NSF H1 (Grease), ATEX DI: 94/9/EC, PED DI: 97/23/EC, ISO 14743 (Pneumatic Transmissions), FDA 21 CFR, RoHS DI: 2002/95/EC |
| Connection 1 Type | Tube |
