R311,66Login for your trade price excl. VAT · per unit
Trade customer? Sign in for your tier price.
On backorder · approx. 35 days
Maximum Operating Pressure
30 bar
Connection 2 Type
BSPT, Male
Connection 1 Type
Tube

Overview

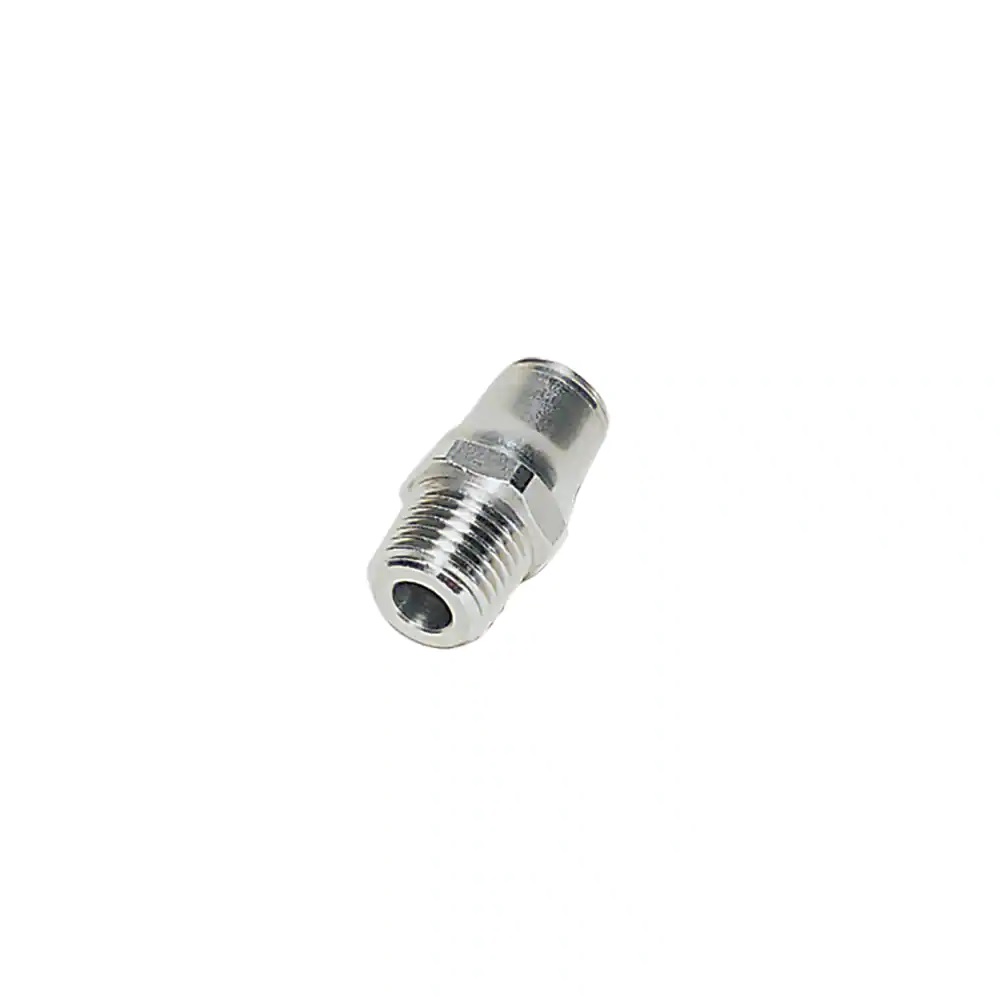

The Parker Legris LF3800 is a push-to-connect stud fitting designed for food processing and low-pressure fluid distribution systems where reliable tube-to-port connections are essential.

This straight stud fitting combines a 4 mm tube connection with a 1/4" BSPT male port, making it ideal for compact manifold assemblies and instrument air applications. Constructed from stainless steel AISI 316L with an FKM seal, it withstands pressures up to 435 psi and operates across a wide temperature range from −25 °C to 302 °F, whilst maintaining a vacuum rating of 755 mm-Hg for sealed system applications. The push-to-connect design eliminates the need for tools during installation, reducing assembly time and minimising connection errors in production environments.

Supplied with a 14 mm hex size for easy handling, each box contains two fittings ready for deployment. This fitting serves food and beverage processing, industrial automation, and process control industries where hygienic design and material compatibility are paramount.

Source: www.parker.com ↗

Specifications

Connection Type Tube to Port
Maximum Operating Pressure 30 bar
Temperature Range -25°C to +150°C
Body Material Stainless Steel AISI 316L
Seal Material FKM
Hex Size 14 mm
Weight 0.016 kg
For Fluid Type Water, Air, Other Fluids: Please Consult Us
Product Series LF 3800
Product Type Push-to-Connect Fittings
Quantity per Box 2
Configuration Tube to Port
Connection 1 Size 4 mm Tube O.D.
Connection 2 Size R 1/4 inch Thread
Connection 2 Type BSPT, Male
Shape Straight
Application Paper Industry, Chemical Transfer, Petrochemicals, Pharmaceutical, Medical Equipment, Food Processing
Specifications Met FDA 21 CFR, ISO 14743 (Pneumatic Transmissions), REACH DI: 1907/2006, ATEX DI: 94/9/EC, PED DI: 97/23/EC, USDA NSF H1 (Grease), RoHS DI: 2011/65/EC, EC 1935/2004, RoHS DI: 2002/95/EC, UL 94 V-0 (Seal)
Vacuum Pressure Rating 1 bar, 755 mm-Hg
Connection 1 Type Tube
Catalogue reference Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.35
