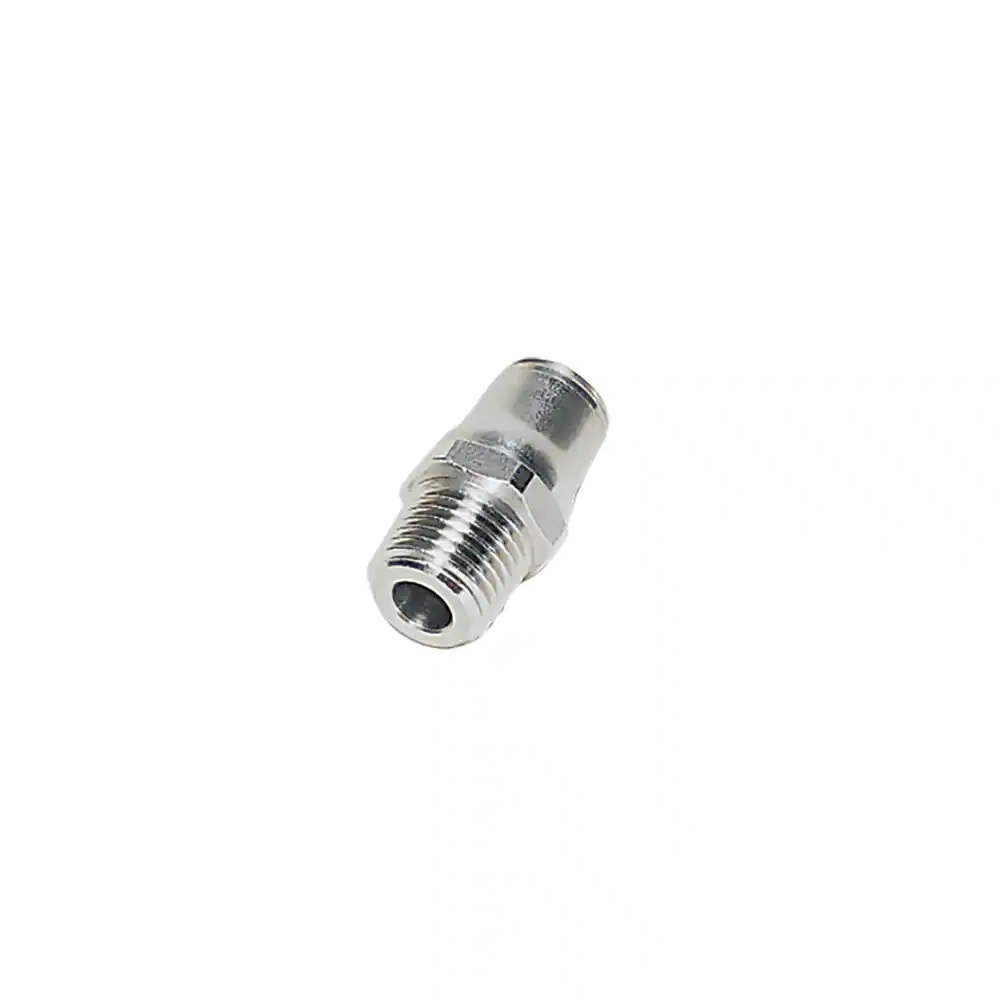

Parker Legris LF3800 12mm - 1/4"Bspt Male Stud
Overview
The Parker Legris LF3800 12mm to 1/4" BSPT male stud is a push-to-connect fitting designed for medical equipment and low-pressure fluid applications requiring reliable, hygienic connections.
This stainless steel 316L stud fitting excels in water-based systems where corrosion resistance and biocompatibility are critical. The push-to-connect design eliminates the need for tools or ferrules, reducing installation time and minimising contamination risks—essential in pharmaceutical and medical device manufacturing. With a maximum operating pressure of 435 psi and operating range from −25°C to 302°F, the fitting accommodates diverse temperature and pressure demands whilst maintaining integrity.
The 12mm outer diameter tube inlet connects seamlessly to the R 1/4 BSPT male port, providing a secure, leak-free interface in compact installations. The FKM seal material ensures compatibility with water and aqueous solutions, whilst the stainless steel construction meets PED directive requirements for pressure equipment. Supplied in boxes of two, this stud fitting serves the pharmaceutical, medical device, and speciality fluid-handling sectors where precision and material reliability are paramount.
Specifications
| Connection Type | Tube to Port |
|---|---|
| Maximum Operating Pressure | 30 bar |
| Temperature Range | -25°C to +150°C |
| Body Material | Stainless Steel AISI 316L |
| Seal Material | FKM |
| Hex Size | 22 mm |
| Weight | 0.034 kg |
| For Fluid Type | Air, Other Fluids: Please Consult Us, Water |
| Product Series | LF 3800 |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 2 |
| Configuration | Tube to Port |
| Connection 1 Size | 12 mm Tube O.D. |
| Connection 2 Size | R 1/4 inch Thread |
| Connection 2 Type | Male, BSPT |
| Shape | Straight |
| Application | Paper Industry, Pharmaceutical, Food Processing, Chemical Transfer, Petrochemicals, Medical Equipment |
| Specifications Met | REACH DI: 1907/2006, FDA 21 CFR, ATEX DI: 94/9/EC, ISO 14743 (Pneumatic Transmissions), UL 94 V-0 (Seal), RoHS DI: 2011/65/EC, RoHS DI: 2002/95/EC, USDA NSF H1 (Grease), EC 1935/2004, PED DI: 97/23/EC |
| Vacuum Pressure Rating | 755 mm-Hg, 1 bar |
| Connection 1 Type | Tube |
