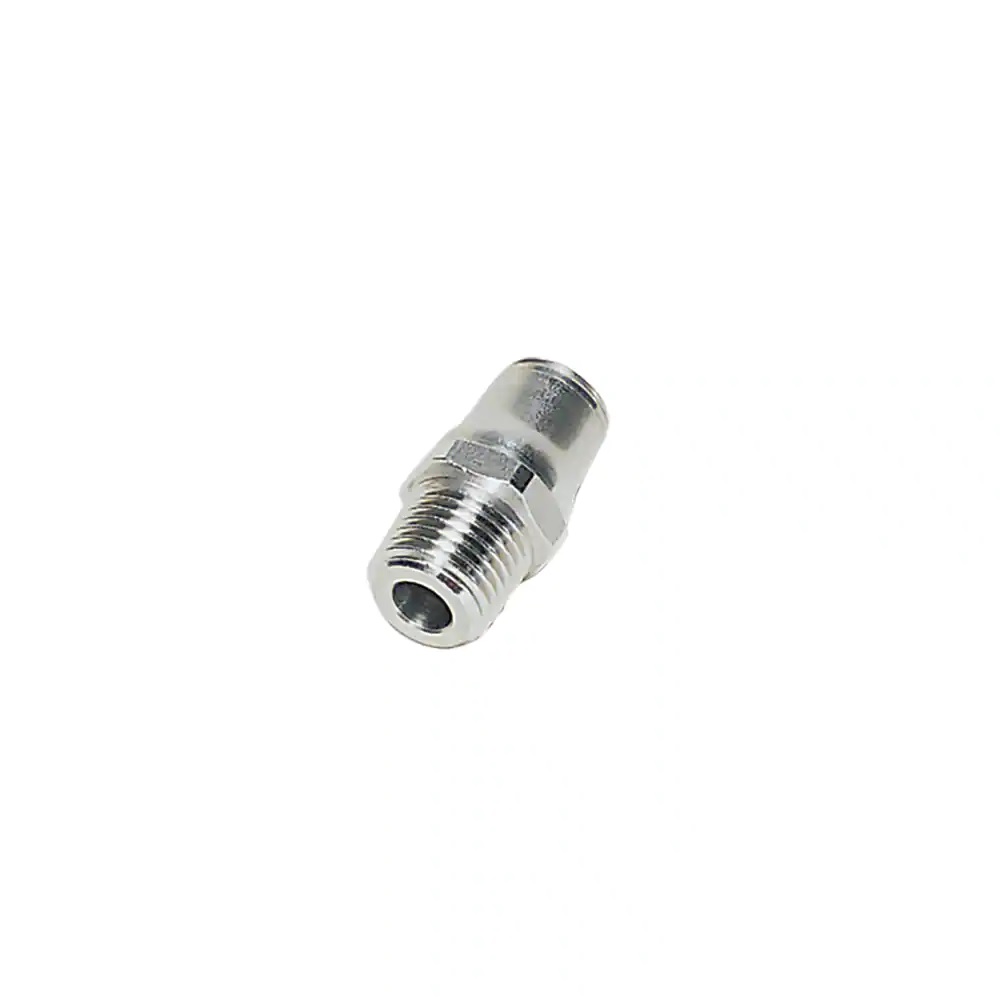

Parker Legris LF3800 6mm - 1/4"Bspt Male Stud
Overview
The Parker Legris LF3800 is a stainless steel 316L push-to-connect male stud fitting designed for low-pressure fluid and gas distribution in food processing and chemical handling applications.
This straight stud fitting connects 6 mm tubing to a 1/4" BSPT male port, making it ideal for instrument air, process gas, and general low-pressure fluid lines where corrosion resistance is essential. The stainless steel body with FKM seals operates reliably across a temperature range of −13 °F to 302 °F and withstands working pressures up to 30 bar, whilst the 755 mm-Hg vacuum rating ensures dependable performance in systems requiring negative pressure capability. The 14 mm hex size facilitates straightforward installation and maintenance in confined spaces.
Supplied in packs of two, this fitting meets REACH compliance requirements and is engineered for environments where hygiene and material compatibility are critical. Legris push-to-connect technology eliminates the need for tools during connection, reducing assembly time and operator error. This fitting serves food processing plants, pharmaceutical manufacturing, chemical processing facilities, and general industrial automation systems requiring corrosion-resistant pneumatic and fluid handling solutions.
Specifications
| Connection Type | Tube to Port |
|---|---|
| Maximum Operating Pressure | 30 bar |
| Temperature Range | -25°C to +150°C |
| Body Material | Stainless Steel AISI 316L |
| Seal Material | FKM |
| Hex Size | 14 mm |
| Weight | 0.018 kg |
| For Fluid Type | Air, Water, Other Fluids: Please Consult Us |
| Product Series | LF 3800 |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 2 |
| Configuration | Tube to Port |
| Connection 1 Size | 6 mm Tube O.D. |
| Connection 2 Size | R 1/4 inch Thread |
| Connection 2 Type | BSPT, Male |
| Shape | Straight |
| Vacuum Pressure Rating | 1 bar, 755 mm-Hg |
| Specifications Met | ATEX DI: 94/9/EC, FDA 21 CFR, PED DI: 97/23/EC, RoHS DI: 2002/95/EC, RoHS DI: 2011/65/EC, UL 94 V-0 (Seal), ISO 14743 (Pneumatic Transmissions), EC 1935/2004, USDA NSF H1 (Grease), REACH DI: 1907/2006 |
| Application | Petrochemicals, Pharmaceutical, Chemical Transfer, Paper Industry, Medical Equipment, Food Processing |
| Connection 1 Type | Tube |
