Maximum Operating Pressure
30 bar
Connection 2 Type
Tube (O.D.)
Connection 1 Type
Tube

Overview

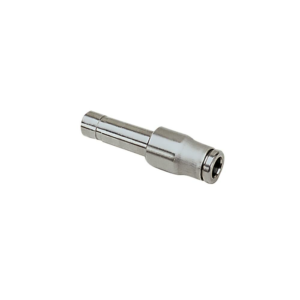

The Parker Legris LF3800 4mm–8mm push-in reducer is a straight stainless steel connector designed for food processing and pneumatic air applications. This fitting simplifies system assembly by enabling quick, tool-free connection between 4mm and 8mm tubes without the need for threading or crimping. The 316L stainless steel body ensures corrosion resistance in demanding environments, whilst the FKM seal material maintains reliable performance across a wide temperature range from –13 °F to 302 °F. Rated for up to 435 psi maximum operating pressure with a vacuum capability of 755 mm-Hg, the reducer suits low-pressure instrument air, process air, and food-grade applications where hygiene and material purity are paramount. Its compact plug-in design integrates seamlessly into existing pneumatic networks. Supplied in boxes of two units, this fitting serves the chemicals processing, food and beverage, and industrial automation sectors.

Source: www.parker.com ↗

Specifications

Connection Type Tube Stem to Tube
Maximum Operating Pressure 30 bar
Temperature Range -25°C to +150°C
Body Material Stainless Steel AISI 316L
Seal Material FKM
Hex Size 10 to 27 mm
Weight 0.011 kg
For Fluid Type Other Fluids: Please Consult Us, Water, Air
Product Series LF 3800
Product Type Push-to-Connect Fittings
Quantity per Box 2
Configuration Tube Stem to Tube
Connection 1 Size 4 mm Tube O.D.
Connection 2 Size 8 mm Tube O.D.
Connection 2 Type Tube (O.D.)
Shape Straight
Specifications Met EC 1935/2004, RoHS DI: 2002/95/EC, REACH DI: 1907/2006, ISO 14743 (Pneumatic Transmissions), USDA NSF H1 (Grease), UL 94 V-0 (Seal), ATEX DI: 94/9/EC, RoHS DI: 2011/65/EC, FDA 21 CFR, PED DI: 97/23/EC
Connection 1 Type Tube
Application Paper Industry, Medical Equipment, Petrochemicals, Chemical Transfer, Pharmaceutical, Food Processing
Vacuum Pressure Rating 1 bar, 755 mm-Hg
Catalogue reference Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.37
