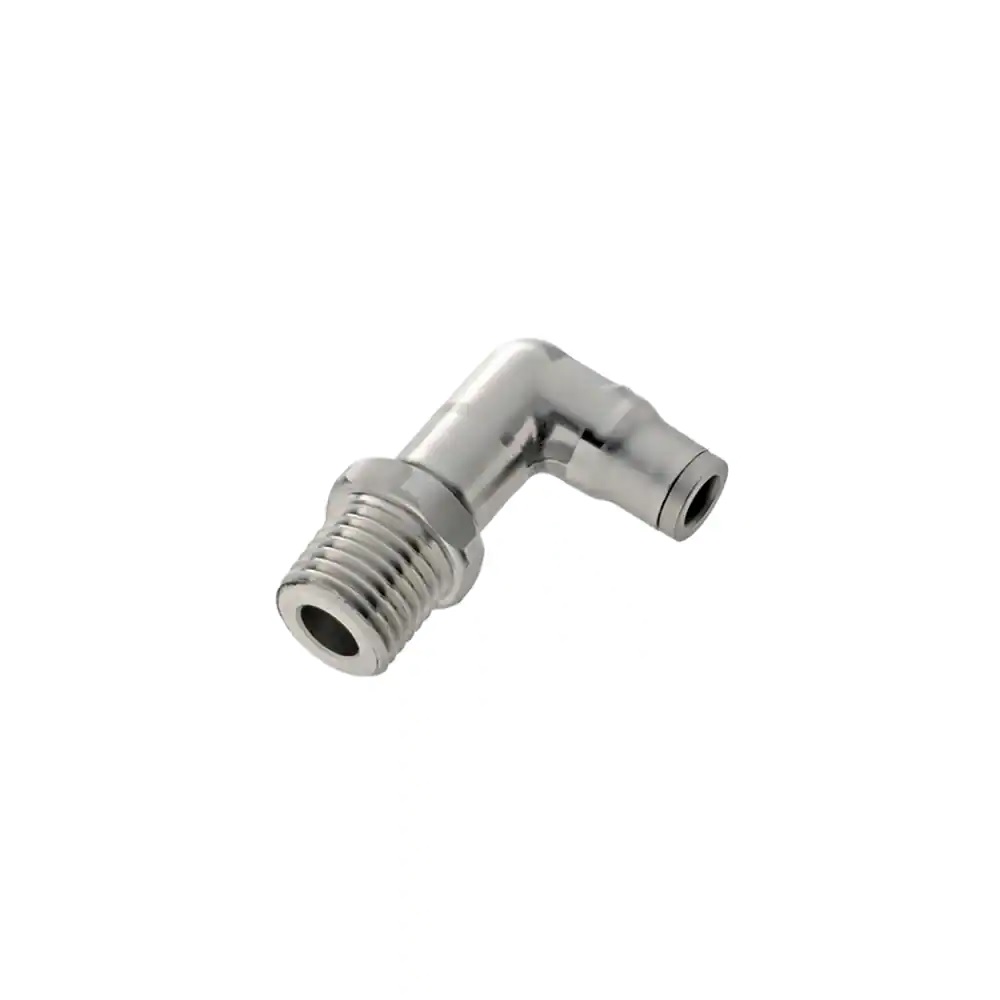

Parker Legris LF3800 6mm - 1/4'' Bspt Male Stud Elbow
Overview
The Parker Legris LF3800 6mm to 1/4" BSPT Male Stud Elbow is a push-to-connect fitting designed for pharmaceutical and medical fluid applications requiring reliable, low-pressure connections.
This 90-degree elbow fitting simplifies installation in space-constrained pneumatic systems by combining a 6mm tube connection with a 1/4" male BSPT port outlet. The stainless steel 316L body and FKM seal material ensure corrosion resistance and compatibility with water-based media, whilst the robust design handles working pressures up to 435 psi and operating temperatures from -13°C to 150°C. The push-to-connect technology eliminates the need for threading compounds or specialist tools, reducing assembly time on production lines.
With a compact 13mm hex size and supplied in quantities of two, this fitting optimises workflow efficiency in medical device manufacturing, laboratory automation, and process instrumentation where hygiene standards and material integrity are paramount.
Specifications
| Connection Type | Tube to Port |
|---|---|
| Maximum Operating Pressure | 30 bar |
| Temperature Range | -25°C to +150°C |
| Body Material | Stainless Steel AISI 316L |
| Seal Material | FKM |
| Hex Size | 13 mm |
| Weight | 0.036 kg |
| For Fluid Type | Other Fluids: Please Consult Us, Air, Water |
| Product Series | LF 3800 |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 2 |
| Configuration | Tube to Port |
| Connection 1 Size | 6 mm Tube O.D. |
| Connection 2 Size | R 1/4 inch Thread |
| Connection 2 Type | BSPT, Male |
| Shape | Elbow 90° |
| Connection 1 Type | Tube |
| Application | Medical Equipment, Paper Industry, Chemical Transfer, Petrochemicals, Food Processing, Pharmaceutical |
| Specifications Met | PED DI: 97/23/EC, EC 1935/2004, REACH DI: 1907/2006, FDA 21 CFR, RoHS DI: 2002/95/EC, ISO 14743 (Pneumatic Transmissions), USDA NSF H1 (Grease), ATEX DI: 94/9/EC, UL 94 V-0 (Seal), RoHS DI: 2011/65/EC |
| Vacuum Pressure Rating | 755 mm-Hg, 1 bar |
