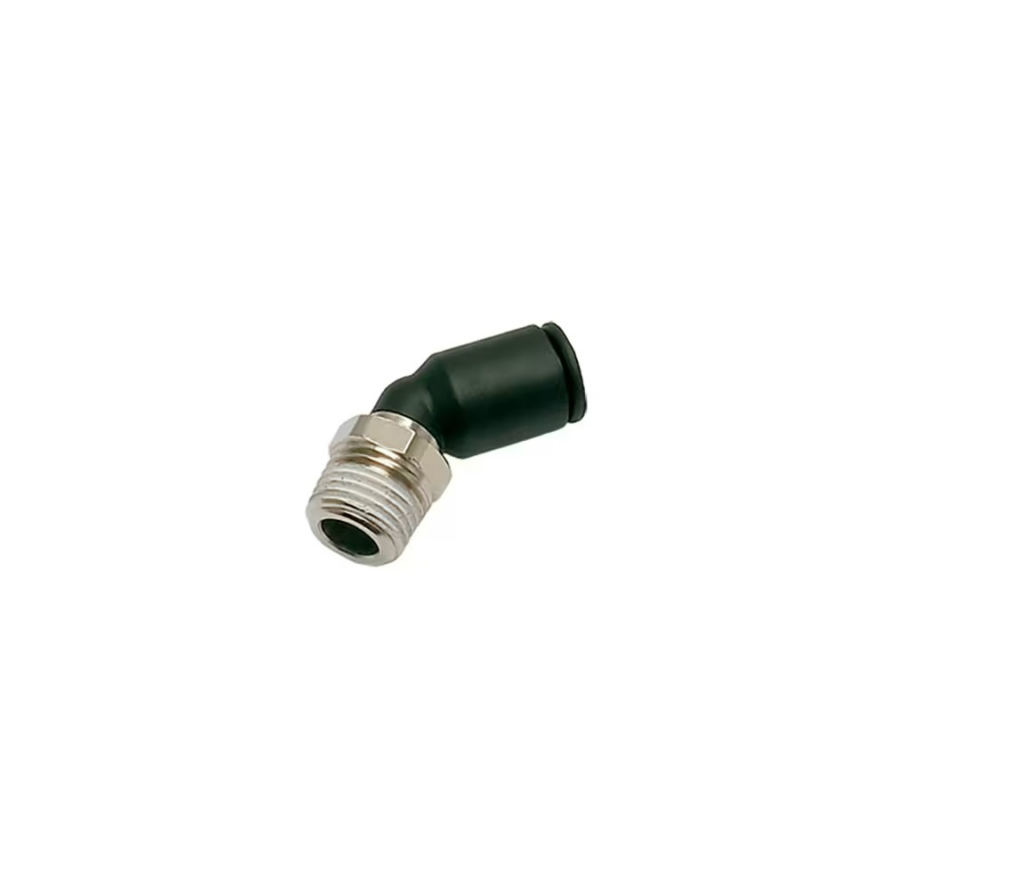

Parker Legris LF3000 10mm - 1/2"Bspt Male 45deg Elbow
Parker Legris LF3000 elbow 45°, 10 mm tube to R 1/2, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 10mm to 1/2" BSPT male 45-degree elbow is a push-to-connect fitting designed for vacuum and low-pressure pneumatic applications. This tube-to-port stud fitting enables reliable directional changes in compressed air systems whilst maintaining secure, leak-free connections without tools or thread sealant.
Constructed from technical polymer with NBR seals and a stainless steel gripping ring, this elbow delivers dependable performance across a wide temperature range from -20°C to +80°C. The 45-degree angle configuration optimises space efficiency in confined installation areas, whilst the vacuum pressure rating of 755 mm-Hg ensures safe operation in evacuation circuits. Connection details include a 10mm tube outlet and R 1/2 male BSPT port inlet, with a 21mm hexagon metric body for grip wrench application during installation.
Supplied in boxes of ten units, these fittings are widely specified across transportation, industrial automation, food and beverage processing, and instrument air applications.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Elbow 45° |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 10 mm Tube O.D. |
| Connection 2 Type | Male, BSPT |
| Connection 2 Size | R 1/2 inch Thread |
| Hex Size | 21 |
| Hex Type | Hexagon Metric |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Application | Packaging, Pneumatics, Automotive, Robotics, Textile, Vacuum |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.032 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.15 |
