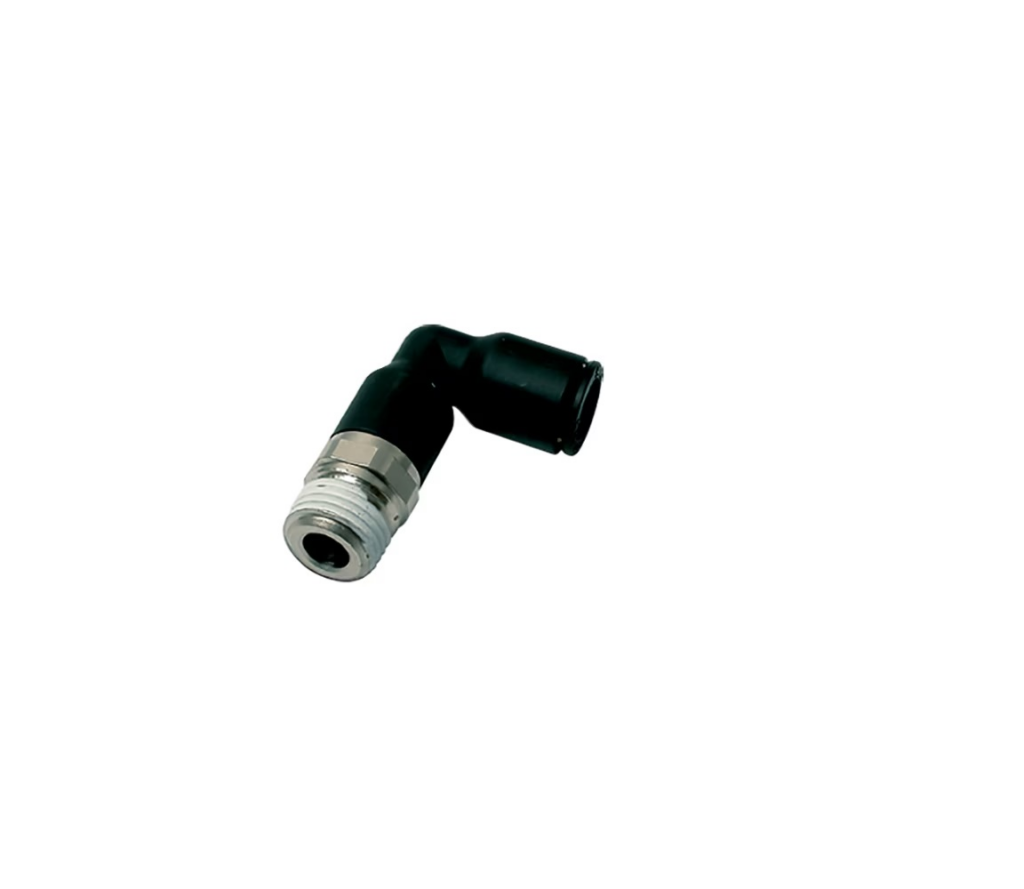

Parker Legris LF3000 12mm - 1/2"Bspt Male Stud Extended Elbow
Parker Legris LF3000 elbow 90°, 12 mm tube to R 1/2, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 Extended Elbow is a 90° push-to-connect fitting designed for vacuum and compressed air applications in industrial pneumatic systems.
This stud fitting connects 12 mm outer-diameter tubing to a 1/2" BSPT male port, making it ideal for space-constrained installations where direction changes are necessary. The technical polymer body with stainless steel gripping ring provides reliable, leak-free connections whilst remaining lightweight and corrosion-resistant. Engineered for operating temperatures between -20 °C and 80 °C, with a vacuum rating of 755 mm-Hg, this fitting delivers dependable performance across demanding industrial environments. The 21 mm hexagon metric design enables straightforward installation and maintenance.
The LF3000 range serves manufacturing, automation, and process control sectors where efficient fluid distribution and system reliability are essential.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Elbow 90° |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 12 mm Tube O.D. |
| Connection 2 Type | BSPT, Male |
| Connection 2 Size | R 1/2 inch Thread |
| Hex Size | 21 |
| Hex Type | Hexagon Metric |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Application | Textile, Robotics, Automotive, Pneumatics, Packaging, Vacuum |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.052 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.15 |
