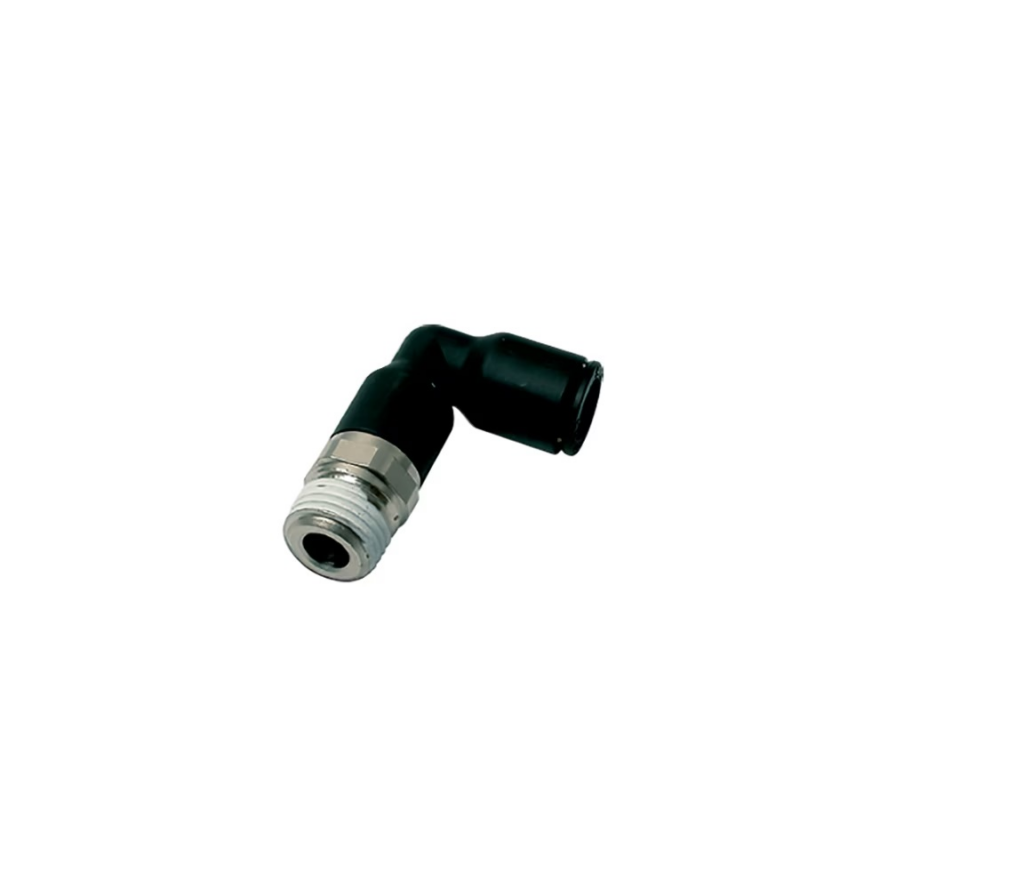

Parker Legris LF3000 12mm - 1/4"Bspt Male Stud Extended Elbow
Parker Legris LF3000 elbow 90°, 12 mm tube to R 1/4, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 12mm to 1/4" BSPT male stud extended elbow is a 90° push-to-connect fitting designed for compressed air applications in packaging and power generation environments.
This technical polymer fitting offers reliable performance across a broad operating range from −20 °C to 80 °C, with a vacuum rating of 755 mm-Hg, making it suitable for both standard and low-pressure pneumatic circuits. The 12mm tube connection pairs with a R 1/4" male BSPT port, allowing seamless integration into existing instrumentation and process air systems. Constructed from durable technical polymer with stainless steel gripping ring and NBR seals, this extended elbow combines lightweight construction with corrosion resistance and consistent leak-free operation over extended service life.
The 19mm hex fitting design facilitates installation and maintenance in confined spaces where standard configurations prove impractical. Supplied in quantities of 10 per box, this fitting serves industrial automation, food and beverage processing, and instrument air distribution networks throughout Europe.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Elbow 90° |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 12 mm Tube O.D. |
| Connection 2 Type | BSPT, Male |
| Connection 2 Size | R 1/4 inch Thread |
| Hex Size | 19 |
| Hex Type | Hexagon Metric |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Application | Robotics, Vacuum, Pneumatics, Textile, Automotive, Packaging |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.051 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.15 |
