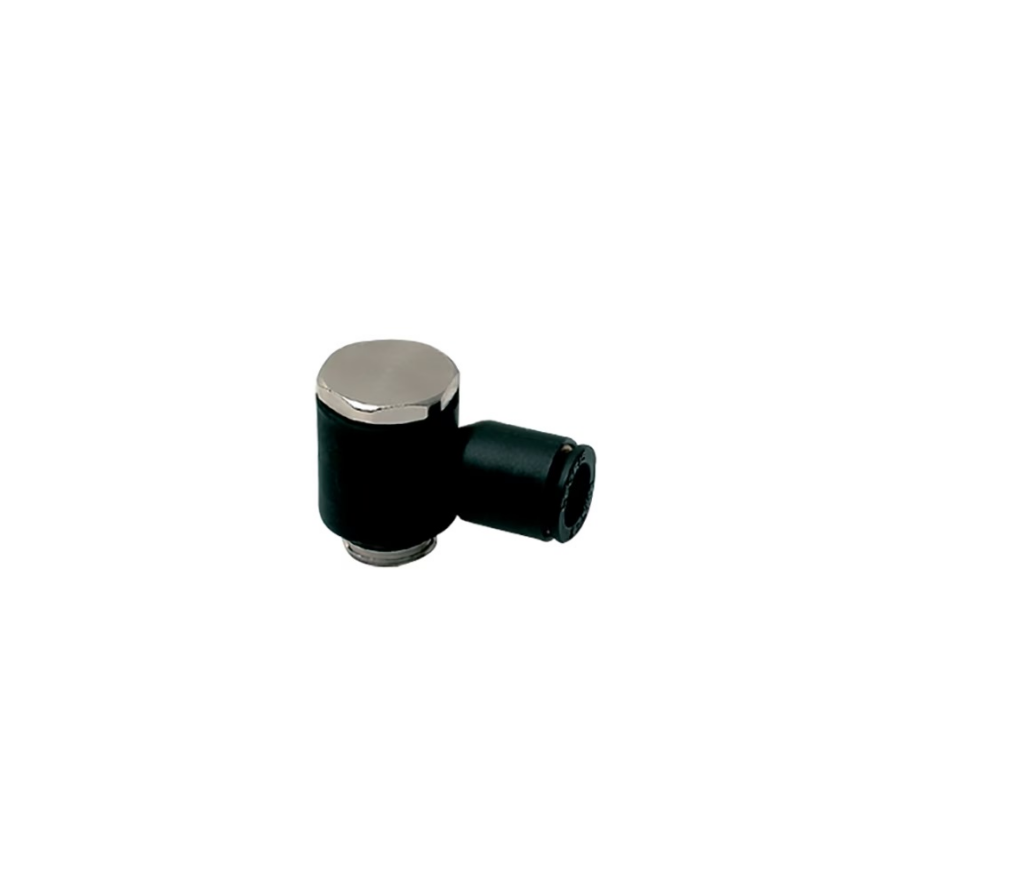

Parker Legris LF3000 6mm - M5 Metric Male Single Banjo
Parker Legris LF3000 elbow 90°, 6 mm tube to M 5, technical polymer, vacuum to 20 bar, -20 °C to +80 °C.
Overview
The Parker Legris LF3000 6mm – M5 Metric Male Single Banjo is a push-to-connect pneumatic fitting designed for automotive and low-pressure compressed air applications.
This elbow banjo connector simplifies installation in confined spaces where a 90° angle connection is required. The 6mm tube connection pairs with an M5×0.8 male metric port, making it compatible with standard pneumatic manifolds and component ports. Constructed from nickel-plated brass with a stainless steel gripping ring and NBR seals, the fitting withstands operating temperatures between –20 °C and 80 °C, whilst maintaining reliable performance across typical industrial air pressures. The push-to-connect design eliminates the need for tools, reducing assembly time and minimising leak points in instrument air, process air, and automotive pneumatic systems.
Supplied in boxes of ten, this fitting serves automotive manufacturers, industrial automation integrators, and process control applications requiring dependable, low-maintenance pneumatic connections.
Specifications
| Product Series | LF 3000® |
|---|---|
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Shape | Elbow 90° |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 6 mm Tube O.D. |
| Connection 2 Type | Metric, Male |
| Connection 2 Size | M5x0.8 mm Thread |
| Body Material | Technical Polymer, Brass, Nickel-plated |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
| Maximum Operating Pressure | 20 bar (usable from vacuum to 20 bar) |
| Vacuum Pressure Rating | 755 mm-Hg |
| Temperature Range | -20°C to +80°C |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Application | Packaging, Textile, Vacuum, Pneumatics, Robotics, Automotive |
| Specifications Met | ISO 14743, PED, RoHS, REACH |
| Weight | 0.004 kg |
| Quantity per Box | 10 |
| Catalogue reference | Parker Legris Rectus Catalogue CAT-EN (Europe, July 2026), p.22 |
