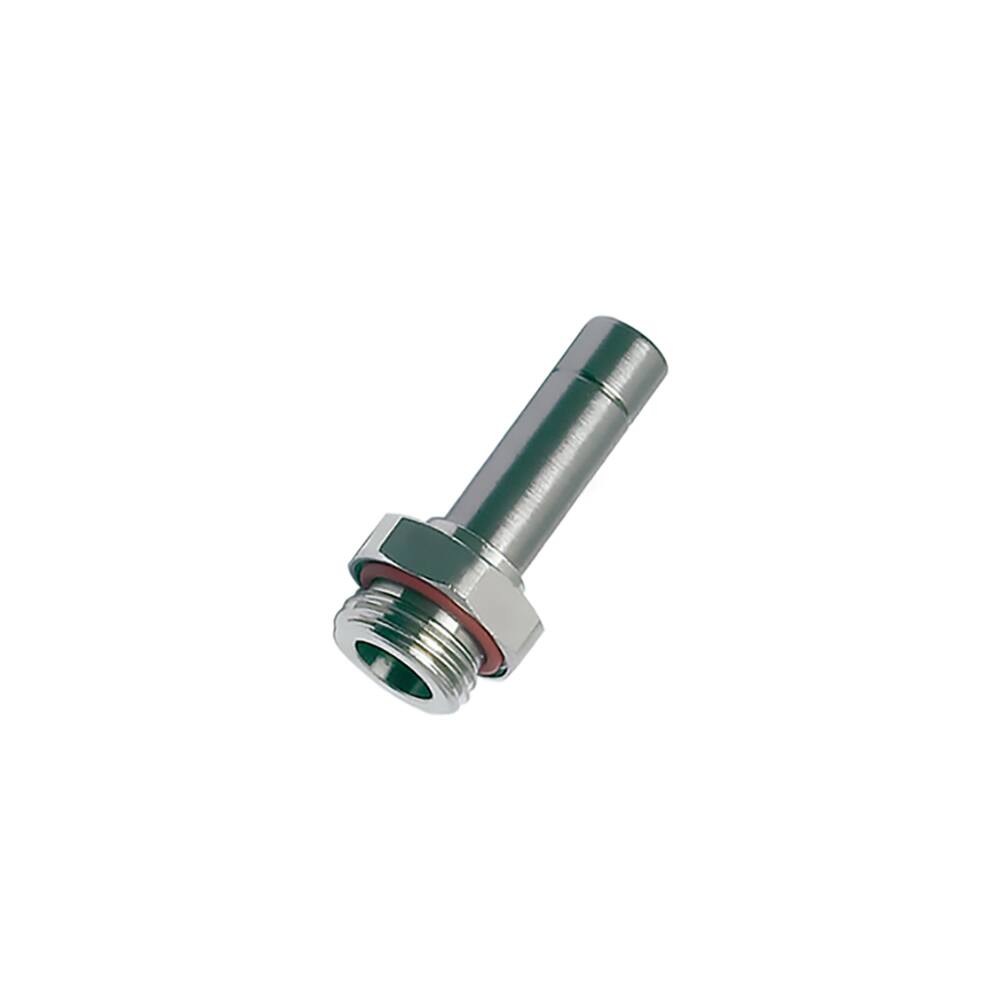

Parker Legris LF3600 4mm - 1/2'' Bspp Male Stud Standpipe
Overview
The Parker Legris LF3600 is a push-to-connect stud standpipe fitting designed for in-plant pneumatic and low-pressure fluid distribution systems. This straight connector joins 4 mm tubing to a G 1/4 male BSPP port, making it ideal for compact installation where space is limited.
The nickel-plated brass body delivers reliable performance across a wide operating range, withstanding pressures up to 30 bar and temperatures from -25 °C to 150 °C. The FKM seal material ensures compatibility with lubricants and greases commonly used in pneumatic circuits, whilst the push-to-connect design eliminates the need for tools, reducing assembly time and potential leak points. These fittings are certified to ATEX DI 94/9/EC standards, confirming their suitability for controlled environments.
Supplied in packs of 10, this fitting serves general industrial applications including process automation, food processing, and instrument air systems.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.011 kg |
| For Fluid Type | Air (Compressed Air), Water, Lubricants (Grease) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube Stem to Port |
| Connection 1 Size | 4 mm (O.D.) |
| Connection 2 Size | G 1/4 |
| Connection 2 Type | Male BSPP |
| Shape | Straight |
| Connection 1 Type | Tube |
| Application | Medical, Industrial, Fluid Control, Pneumatic, Process Control, Transportation, General Industrial, In Plant Pneumatic |
| Connection 3 Type | n/a |
| Specifications Met | REACH, RoHS, UL 94 V-0 (Please Consult Us), PED, FDA 21 CFR (Food), EC RG: 1935/2004, ATEX DI: 94/9/EC |
| Vacuum Pressure Rating | 755 mm-Hg |
| Coating | FDA Chemical Nickel-plated |
| Connection 3 Size | n/a |
