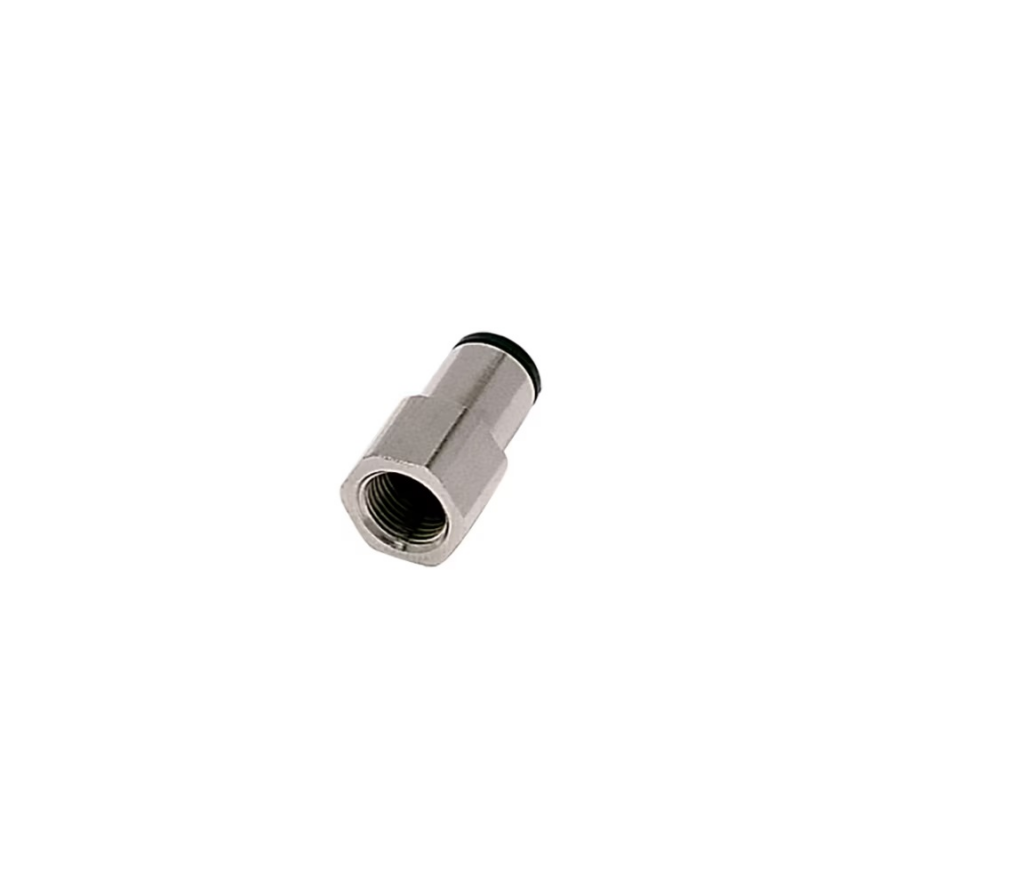

Parker Legris LF3000 4mm - M5 Metric Female Stud Fitting
Overview
The Parker Legris LF3000 4mm to M5 metric female stud fitting is a push-to-connect pneumatic coupling designed for compressed air applications requiring reliable, leak-free connections in low-pressure systems.
This straight fitting excels in applications where quick, tool-free installation is essential, eliminating downtime during assembly and maintenance. The stainless steel gripping ring and nickel-plated brass body ensure durability across a wide operating temperature range of −20 °C to +80 °C, whilst the NBR seal material delivers consistent performance in humid and demanding environments. Rated to 755 mm-Hg vacuum pressure, it accommodates 4 mm tubing with an M5×0.8 metric female port, making it ideal for instrument air lines, control circuits, and process automation where space and weight are considerations.
The compact design and robust construction support deployment across electronics manufacturing, food and beverage processing, and industrial automation sectors where precision pneumatic control is paramount.
Specifications
| Temperature Range | -20°C to +80°C |
|---|---|
| Body Material | Brass, Nickel-plated |
| Seal Material | NBR |
| Hex Size | 8 |
| Weight | 0.005 kg |
| For Fluid Type | Other Fluids: Please Consult Us, Air (Compressed Air) |
| Product Series | LF 3000® |
| Product Type | Pneumatic Push-In Fittings - LF 3000® |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 4 mm Tube O.D. |
| Connection 2 Size | M5x0.8 mm Thread |
| Connection 2 Type | Metric Thread |
| Shape | Straight |
| Application | Vacuum, Packaging, Automotive, Textile, Robotics, Pneumatics |
| Vacuum Pressure Rating | 755 mm-Hg |
| Hex Type | Hexagon Metric |
| Connection 1 Type | Tube |
| Gripping Ring Material | Stainless Steel |
