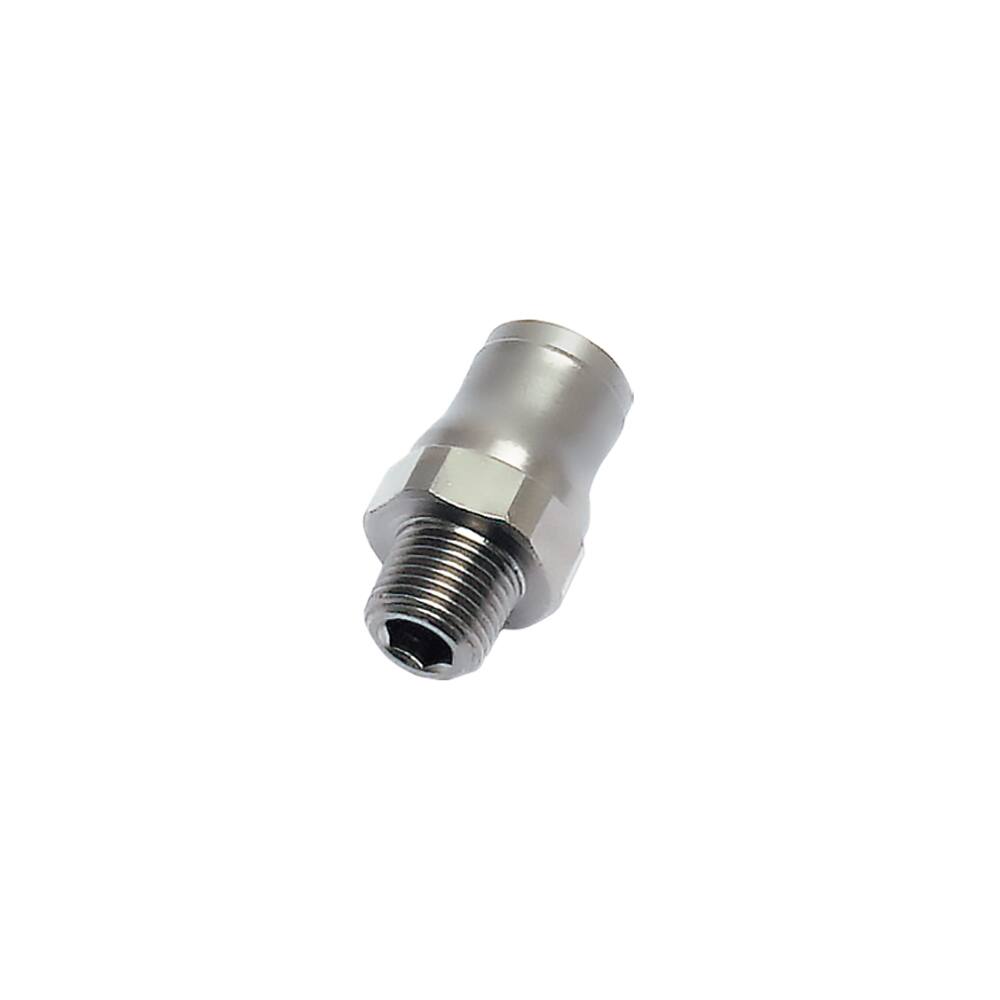

Parker Legris LF3600 6mm - 1/4'' Bspt Male Stud Fitting
Overview
The Parker Legris LF3600 is a push-to-connect stud fitting designed for medical equipment and low-pressure fluid distribution systems handling lubricants and greases. This straight connector joins 6 mm tubing to a R 1/4 male BSPT port, making it ideal for compact installations where reliable, leak-free connections are essential. Constructed from FDA-approved chemical nickel-plated brass with an FKM seal, the fitting operates across a temperature range of −25 °C to 150 °C and withstands pressures up to 30 bar, whilst maintaining a vacuum rating of 755 mm-Hg for sealed-system applications. The tube-to-port configuration simplifies assembly and maintenance, reducing downtime in critical environments. Supplied in boxes of ten units, this fitting serves industrial manufacturing, medical devices, process instrumentation, and food & beverage applications where hygiene standards and material compatibility are paramount.
Specifications
| Maximum Operating Pressure | 30 bar |
|---|---|
| Temperature Range | -25°C to +150°C |
| Body Material | Brass |
| Seal Material | FKM |
| Weight | 0.018 kg |
| For Fluid Type | Air (Compressed Air), Water, Lubricants (Grease) |
| Product Type | Push-to-Connect Fittings |
| Quantity per Box | 10 |
| Configuration | Tube to Port |
| Connection 1 Size | 6 mm (O.D.) |
| Connection 2 Size | R 1/4 |
| Connection 2 Type | Male BSPT |
| Shape | Straight |
| Specifications Met | REACH, PED, FDA 21 CFR, ATEX DI: 94/9/EC, EC RG: 1935/2004, RoHS, UL 94 V-0 (Please Consult Us) |
| Connection 1 Type | Tube |
| Coating | FDA Chemical Nickel-plated |
| Application | In-Plant Automotive, Misting, Food Processing, Welding Robots, Printing, Medical Equipment |
| Connection 3 Size | n/a |
| Vacuum Pressure Rating | 755 mm-Hg |
| Connection 3 Type | n/a |
